8kw Plc Shelf Column Metal Roll Forming Machine For Building Materials Supermarket

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: 40 work days
Brand: LIMING
Product Description

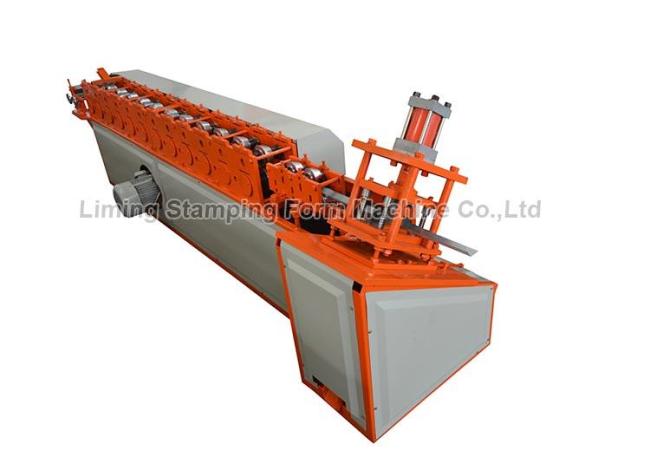

Shelf Column Forming Machine for Building Materials Supermarket

In order to make it easier for consumers to choose the items that need to be purchased in building materials supermarkets, supermarket owners often use shelves to classify products, so as to make it easier for consumers to find the items they need. We can provide shelf column forming machines to help you .

The shelf column forming machine adopts an integrated wire cutting middle plate, which is fixed to the base of the machine by welding, thereby ensuring the stability of the machine. At the same time, the shelf column forming machine is also equipped with an inclined shearing device to make the finished cutting The product section is clean and free of burrs, and at the same time, it is convenient to receive the product.

The shelf column forming machine is also equipped with a protective device at the transmission part to prevent equipment and personnel damage during operation and help you to produce safely and quickly.



Main Parameters Of The shelf column forming machine



No Roll Forming System Main Parameter
1 Length of the main part about 5000*1000*1200Mm
2 Weight of main part 3-8 tons
3 Working Speed 15-35m/min
4 Voltage 380V/50HZ3Phase (as customer’s request)
4 Roller fixer guide column
5 Frame steel plate welded/ Memorial arch frame type
6 Frame thickness 20mm
7 Drive mode gear
8 Material of rollers GCr15MoV
9 Material of shafts 45# steel with tempering
10 Diameter of shafts φ40mm
11 Number of rollers 10-16 rollers
12 Main power 3-8kw
13 Servo Motor Power 1.2KW
