Anti Collision 2.5mm Highway Guardrail Roll Forming Machine 12m/Min
High-precision anti-collision guardrail highway guardrail roll forming machine

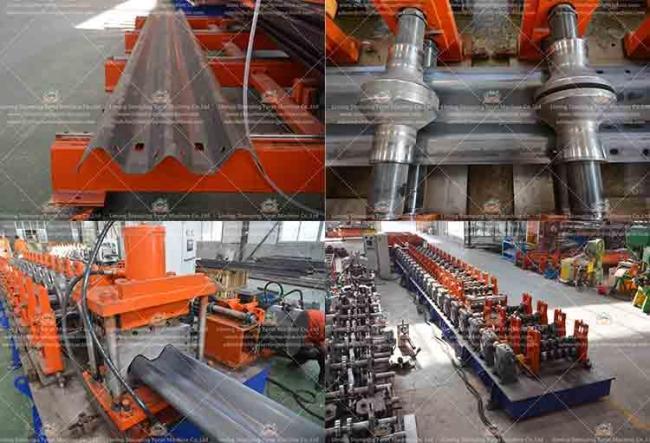

The highway guardrail roll forming machine is an equipment used to produce highway guardrails.
The expressway guardrail roll forming machine is composed of an uncoiling device, a feeding device, a forming host, a shearing device, and an automatic material receiving device. The whole machine adopts a PLC control system and AV frequency converter for speed regulation, and can run fully automatically.
At the same time, we will also provide you with one-to-one video education guidance to ensure that you can understand and operate the highway guardrail roll forming machine proficiently.
The highway guardrail roll forming machine is also equipped with G12 molding wheels to ensure the hardness and toughness of the pressing wheels, thus helping you save time for maintenance and replacement of the molding wheels.
Liming Company can also design according to the product drawings you provide, and produce your own high-precision guardrail machine.
technical parameter of The highway guardrail roll forming machine
| Item: | Specification: | Notes: | |
| 1.Information of raw material | Suitable material: | Galvanized coil | |
| Width: | 748 mm | ||
| Thickness: | 2.5-3.5mm | ||
| Yield strength: | Q235A HR | ||
| 2.Production specification | Detailed as the file | ||
| 3.Power requirement: | Main power: | 22kw two sets |
With inventor (normal standard) |
| Cutter power: |
15.5kw(pressure:25mpa) 3 pcs cutter |
||
| Speed of machine: | 10-15meters/min | ||
|
5.Hydraulic de-coiler: |
Loading: | 5tons | Main power:3kw |
| Inner diameter | 508mm | ||
| Type: | Automatic type | ||
|
6.Machine specification: |
Structure: | 400I beam |
Transform method : Gearbox with shaft |
| Roll stations: |
20 roll stations (with 6pcs rollers for leveling diameter:80mm) |
||
| Splint thickness: | 22mm | ||
| Diameter of shaft: | 110mm, | ||
| Material of shaft: | Forged 45# steel | ||
| Type of cutting: | Saw cutting | ||
| Material of roller: |
CR12 with heat treatment: HRC58-62 |
||
| Sizes of machine: | 15.5*1.0*1.5meters | ||
| Material of punching mold: | Cr12,hydraulic pre-punching | ||
| Sizes of chain: | 2.0inch | ||
