0.3mm 1.25m Glazed Tile Roll Forming Machine For 60m/Min

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: 45work days
Brand: LIMING
Product Description

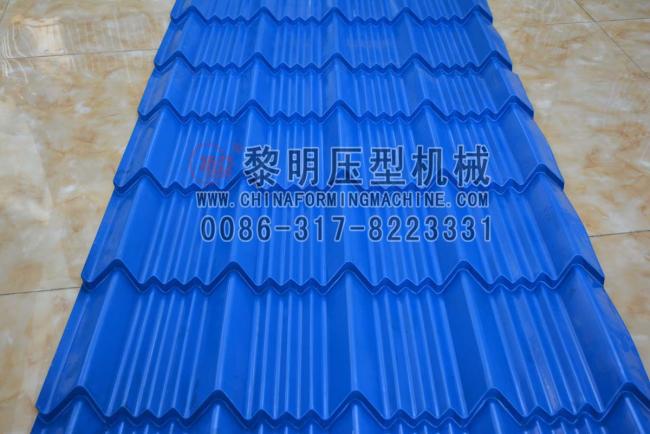

Roof decoration, easy installation, glazed tile forming machine

The glazed tile forming machine production line uses galvanized steel plates or color steel plates or aluminum plates of different colors as raw materials. The products produced are used to build the exterior roof panels and wall panels of the house. After installation, the roof or walls are both beautiful and durable. Great praise from the masses, if you need the glazed tiles we produce, we can provide you with a glazed tile forming machine.

The glazed tile forming machine production line has no production length limitation. You can set multiple sets of different data on the computer controller according to the construction requirements. After one-click "confirm", the equipment will automatically produce finished products of different lengths according to the data set by the computer.

The surface of the finished product produced by the glazed tile forming machine production line is smooth, smooth, and free of scratches, which is convenient for construction and installation.

The glazed tile forming machine can also be customized for you according to your layout and configuration requirements. The produced machine fully meets your requirements and has high precision, which is suitable for sales or self-use.

Main parameters of Roof decoration, easy installation, glazed tile forming machine

Main Motor Power 3kw
Hydraulic Station Power 3kw
Hydraulic Oil Pump CB-E310
Sprocket P-25.4
Roller Station 9
Yield strength 32MPa
Diameter of Principal Axis 70MM
Material of Roller 45#steel hard chrome plating
Processing Speed 8m/min
Installation Dimension (L*W*H) 6.5m*1.5m*0.8m
Total Weight 3.8T
Equipment Parts roll forming system, hydraulic system, PLC frequency conversion control system, counter and cutting system.
Production according to customers' demand
