Beautiful Anti Theft 1000mm Door Frame Roll Forming Machine

Price Negotiable
Price: Negotiation
MOQ: 1
Delivery Time: 50 work days
Brand: LIMING
Product Description

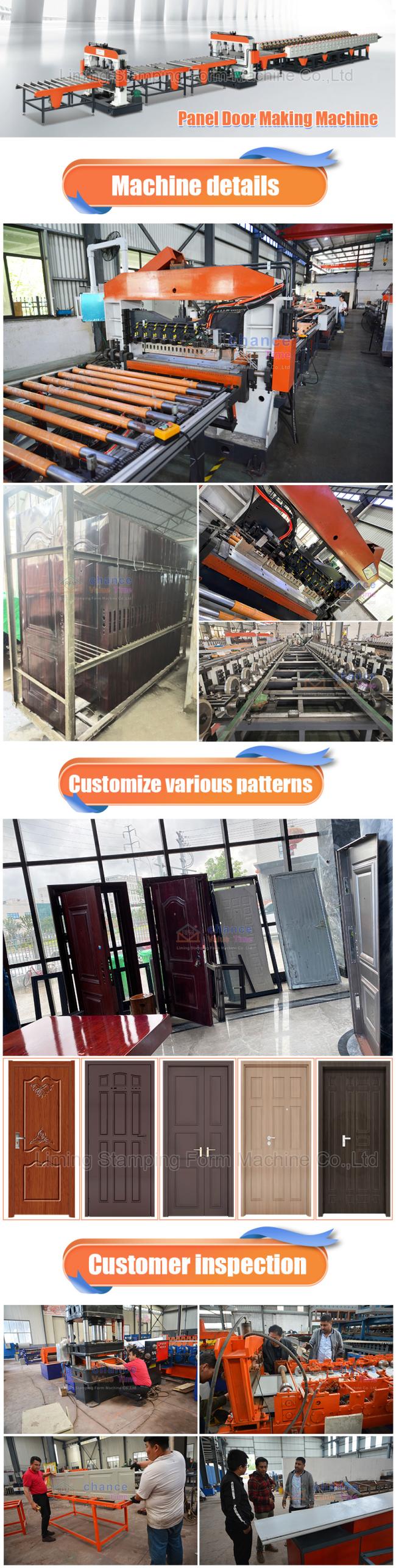

Beautiful factory direct sale anti-theft door panel production line

Simply put, the anti-theft door is composed of a door frame and a door panel. The door frame plays a role of supporting and fixing the door panel. The anti-theft door panel production line we developed is used to produce the anti-theft door panel.

The technological process of the anti-theft door panel production line produced by Liming Company.

Uncoiling--leveling--fixed-length shears--embossing--punching--rolling forming--up and down folding--curing transfer--preventing door lock fixing frame--preventing filler--brushing glue --Fastening welding--Gluing

he 0.7mm thickness raw material for inspection, in common use
Effective width: 300MM/400MM/500MM/600MM
Feeding width: Approx. 815mm for 600 shelf;Length: 1250~1500mm
Cold rolled steel coil, Galvanized Coil, Tension: Q235
The In-feed Section of the machine allows for variations in sheet width
Pre-Level Device with 3 over 2 shafts to remove the Coil-set
All the shafts will be highly precision machining with hard chrome
Servo Feeder motor=3KW
Totally two sets of hydraulic cylinders for notching&holes
Notching & punching die: Cr12, Heat Treatment, HRC58~62(More spare parts for pin tools)
Stop to notch holes/punching at one time
Variable programmable longitudinal positions
H Beam basis, All the wall plates with NC machining
Chains/Sprockets driving, 24-step to form, Wall plate connecting design
Rollers manufactured from 45# steel, CNC lathes, Fine polished, Hard Chrome, (NOTE: Partial idle rollers with heat treatment
purpose)
Shaft Diameter=Φ75mm, Precision Machined, CNC LATHE, Hardening and Tempering.
Main motor for roll forming: 11KW, Frequency speed control
Motor for size changing: 1.5KW
Stop to cut, Post cut, Slug breaker
Share with pre-punch/notch hydraulic power
Cutting tool material : Cr12, Heat treatment;HRC58~62
Mould steel with quenched treatment
Powered conveyor table
Hydraulic bending device

The door panel products produced by this anti-theft door panel production line are beautiful, corrosion-resistant, impact-resistant, easy to install, and can help you quickly open the market.

This anti-theft door panel production line customized production can be designed and manufactured according to the size and embossing shape you provide, and we will also provide you with 24-hour after-sales and operation videos, so as to help you quickly and skillfully operate the equipment and bring you To gain.
