40mm Diameter Plastic Light Duty Casters 360 Degree Rotating
40mm Diameter Plastic 360 Degree Rotating Light Duty Casters Wholesale
Description:
Light duty swivel type caster wheel.
Wheel diameter 40mm.
Pressed steel bracket.
Zinc painted surface.
Loaded capacity 44lbs.
Light way.
Usually used in many furnitures.
Product Specifications:

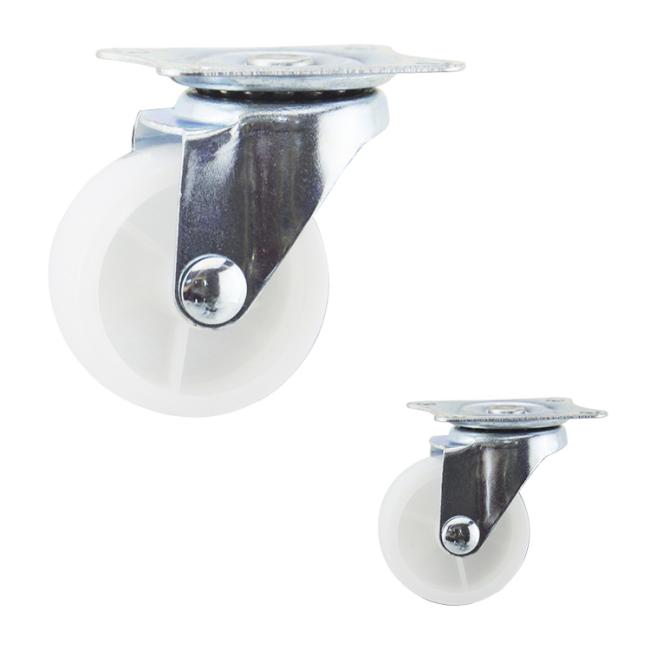

Top Plate Swivel Type Light Duty Casters
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C040PPP | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | No | 20 |
Top Plate Swivel Side Brake Type Light Duty Casters
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C025PPPB1 | 25x13 | 38 | 39x33 | 30x24 | 4 | No | 10 |
| I001C030PPPB1 | 30x13 | 40 | 39x33 | 30x24 | 5 | 15 | |
| I001C040PPPB1 | 40x16.3 | 50.5 | 46x38 | 36x28 | 6 | 20 | |
| I001C050PPPB1 | 50x20.3 | 65 | 58x46 | 46x35 | 6 | 30 | |
| I001C065PPPB1 | 65x25 | 84 | 70x58 | 53.5x40 | 8 | 40 | |
| I001C075PPPB1 | 75x25 | 93 | 70x58 | 53.5x40 | 8 | 50 |

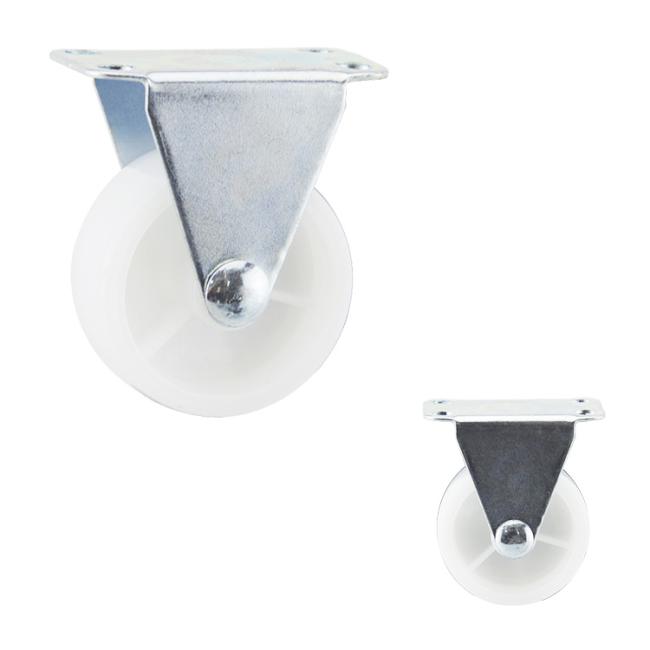

Top Plate Fixed/Rigid Type Light Duty Casters
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Plate Size MM |
Bolt Hole Spacing MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C025PPPF | 25x13 | 38 | 37x19 | 29 | 4 | No | 10 |
| I001C030PPPF | 30x13 | 40 | 37x19 | 29 | 5 | 15 | |
| I001C040PPPF | 40x16.3 | 50.5 | 46x25 | 36x15 | 6 | 20 | |
| I001C050PPPF | 50x20.3 | 65 | 58x38.5 | 45x25 | 6 | 30 | |
| I001C065PPPF | 65x25 | 84 | 70x47 | 55x27 | 8 | 40 | |
| I001C075PPPF | 75x25 | 93 | 70x47 | 55x27 | 8 | 50 |
Bolt Hole Type
| Model Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Bolt Hole Size MM |
Bearing Type | Loaded Capacity KG |
| I001C050PPD | 50x20.3 | 65 | 8 | No | 30 |
| I001C065PPD | 65x25 | 84 | 8 | 40 | |
| I001C075PPD | 75x25 | 93 | 10 | 50 |
Threaded Stem Type
| odel Number | Wheel Diameter/Wideth MM |
Overall Height MM |
Threaded Stem Size MM |
Bearing Type | Loaded Capacity KG |
| I001C040PPT | 40x16.3 | 50.5 | 8x15 | No | 20 |
| I001C050PPT | 50x20.3 | 65 | 8x15 | 30 | |
| I001C065PPT | 65x25 | 84 | 10x25 | 40 | |
| I001C075PPT | 75x25 | 93 | 10x25 | 50 |
Bulk White PP Casters
Three Color To Be Choose
Set Of Four Packaging & Normal Packaging
About Us:
Note:
1. This type of white pp light duty casters can print your logo on the bracket if necessary with a bigger MOQ.
2. If you want to sale them on amazon or other platform online, or in shops, we can help you with all the stuff like proper packing etc.
3. If necessary, we can arrange the shipment for you.
4. Just tell us what you need.
