6 Channels TV Video Wall Controller 2x2 2x3 3x2 4kx2k 60Hz HDMI DP1.2
Description:
6 Channels TV Video Wall Controller 2x2 2x3 3x2 4k x 2k @ 60Hz HDMI , DP1.2 Video Processor is for LCD TV, ultra narrow side LCD screen, projector and so on, high-definition picture mosaic processor can be customized according to user needs 2 to 6 HDMI output splicing. Products with high definition processing chip, support 1080P signal input and output, supports 1 composite video, 1 VGA, 1 USB model, 1 HDMI input, all input signals can be switched to the large screen display, and audio and video synchronization output.
Product design infrared remote control, users operate the mosaic processor is more simple, intuitive, it can also be controlled through RS-232. The user through the remote fast control and full function control, the operation is more humane and simpler
The main function:
Supports 6-way HDMI output signal, connected to 6 LCD TV or other display devices such as projectors.
● Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40 milliseconds.
● Support 2x2, 1x4, 4x1, 3x3, 2x4, 4x2, 2x3, 2x3, 2x2 wall mode.
● Any one of the nine outputs can be turned off independently.
● Each port support both HDMI and DVI inputs.
● Can be set 1080P60, 720P60, 1024x768@60 three resolution output to adapt to different display devices.
● With panel button, Remote Control, RS232 Control select the source.
● 1U rack design, easy installment.
● DC 12V 3A power supply
● 6 Channels TV Video Wall Controller 2x2 2x3 3x2 4k x 2k @ 60Hz HDMI , DP1.2 Video Processor
Specification:
| name | 6 Channels TV Video Wall Controller 2x2 2x3 3x2 4k x 2k @ 60Hz HDMI , DP1.2 Video Processor |
| input interface | 1-ch HDMI1.4 input ,1-ch DP1.2 input. |
| DP input resolution | 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility and custom resolution; |
| HDMI input resolution | Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and custom resolution; |
| signal output | |
| Output Interface |
2 to 16 HDMI ports output, support audio and video synchronous output; 1 3.5mm audio left and right channel stereo, used to connect to stereo; |
| output resolution | 1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution can be switched; |
| color depth | 24bit, 16.77 million colors |
| way to control | Chassis buttons, remote control, RS232; |
| Input voltage | Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode | Any mode within 16 stitching |
| Chassis size, weight, power | |
| small case | Machine size: 302mm (length) x 152mm (width) x 40mm (height), weight: 1.3KG |
| Package Size: | |
| 1U chassis | Machine size: 440mm (length) x 243mm (width) x 45mm (height), weight: 3.4KG |

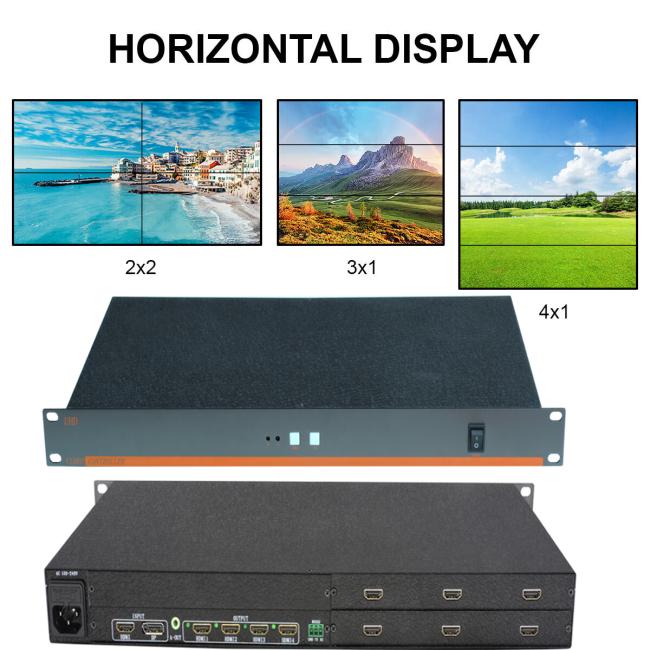

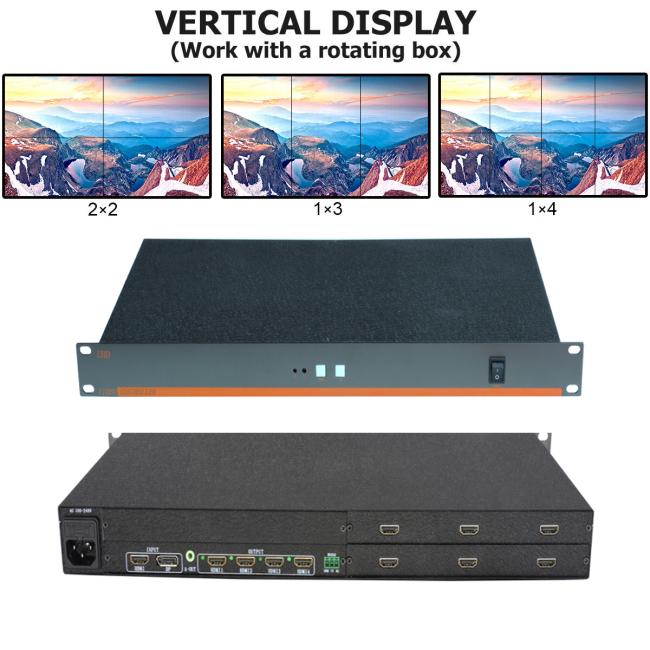

Related pictures with 6 Channels TV Video Wall Controller 2x2 2x3 3x2 4k x 2k @ 60Hz HDMI , DP1.2 Video Processor
