5kW /10kwh All In One Battery Energy Storage System To Improve Rural Electricity Consumption
BATT-LS-10-A-T 5kw/10kwh All in one BESS development design background
With the development of the economy and the continuous improvement of people's living standards, the number of high-power electrical equipment such as air conditioners, refrigerators, rice cookers, and induction cookers in rural residents' homes has increased day by day. The demand for rural electricity has grown rapidly, and some rural power grids have insufficient power supply capacity. The voltage at the end of the line station area is too low, the voltage quality is reduced, and the power supply reliability is reduced.
The line from the end user to the transformer is too long, coupled with the aging of the line and overload, etc., the voltage to the residents is too low, causing the lighting to dim, making it difficult to cook rice, and making it difficult for heating equipment to work properly, seriously affecting the normal life of residents. Domestic electricity consumption increases the hidden dangers of electricity consumption.To solve the above problems, Huaxing provides different types 5kw10kwh 10kw/10kwh and 10kw/20kwh battery energy storage systems.
BATT-LS-10-A-T 5kw/10kwh All in one BESS technical parameter
| Battery specification | Name | LFP Cell | LiFePo4 Battery pack | |
| Parameters | 3.2V 100Ah | 51.2V 100Ah | ||
| Quantity | 32 | 2 | ||
| System capacity | 10.24kWh | |||
| The system efficiency | 85%±5% | |||
| The system DOD | 80% | |||
| Min Energy capacity | ≥9.728kWh | |||
| Life cycles | 25℃±2℃,0.5Ccharge and discharge,80%DOD,More than 4000times,(Capacity remain over 80%) | |||
| Continuous charge current(A) | 100A | |||
| Continuous discharge current(A) | 100A | |||
| Charge and discharge rate at full power | 1.0 C | |||
| Battery energy | 25°C 10.24kWh (100% DOD @ 1C rate) | |||
| - 20°C 7.168kWh(100% DOD @ 1C rate) | ||||
| Storage Temperature | Less 45°C suggested | |||
| Self discharge | 25°C,per month≤5% | |||
| IP | IP65 | |||
| Inverter Specification | ||||
| Type | HX-INVERTER5kW | |||
| Parameters | Battery input data | |||
| Continuous power:(KW)5 | ||||
| Nominal Voltage:(Vdc)51.2 | ||||
| Charge current:(A)0~ 100 | ||||
| Cut off voltage:(V)58.4 | ||||
| Max discharge current:(A)100 | ||||
| AC output/input data(On-grid) | ||||
| Grid Voltage range:230V/180-280Vac | ||||
| Rated AC output current:22A | ||||
| Max. AC output current:24A | ||||
| Frequency:50Hz,60Hz/±5Hz | ||||
| Grid System pattern:L+N+PE | ||||
| Max.apparent power from utility grid:10000VA | ||||
| Max.AC current from utility grid:43.5A | ||||
| PV string input data | ||||
| Max,DC input power:9000W | ||||
| Operation voltage range:80-550V | ||||
| MPPT working voltage range:90V-550V | ||||
| MPPT max. Current:15A | ||||
| Number of independent MPPT/strings per MPPT:2/1 | ||||
| Start-up voltage/Min.operating voltage:100V/80V | ||||
| General Data | ||||
| Dimension(L/W/H)mm 375*250*363 | ||||
| Weight:20kg | ||||
| Communication interface:Wifi/4G/USB/RS485 | ||||
| LCD display | ||||

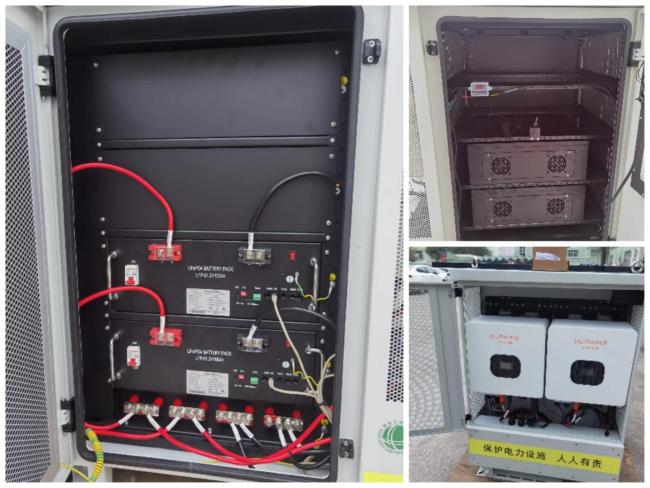

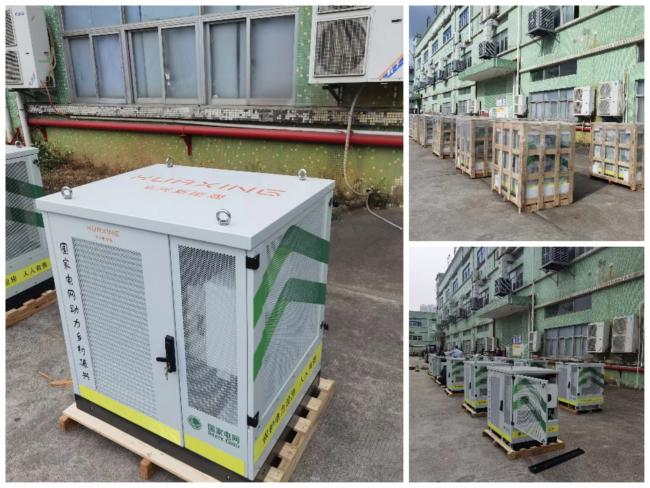

| 5kw/10kwh BESS system | ||||
| Type | BATT-LS-10-A-T | |||
| Rated Energy | 10kwh | |||
| Rated power | 5kw | |||
| Rated voltage | 230V | |||
| Voltage range | 180Vac-280Vac | |||
| IP grade | IP55 | |||
| Altitude | ≤4000m(＞2000m derating) | |||
| Cabinet Dimension | W1016*D 840*H1126mm | |||
| Weight | 298kg | |||
