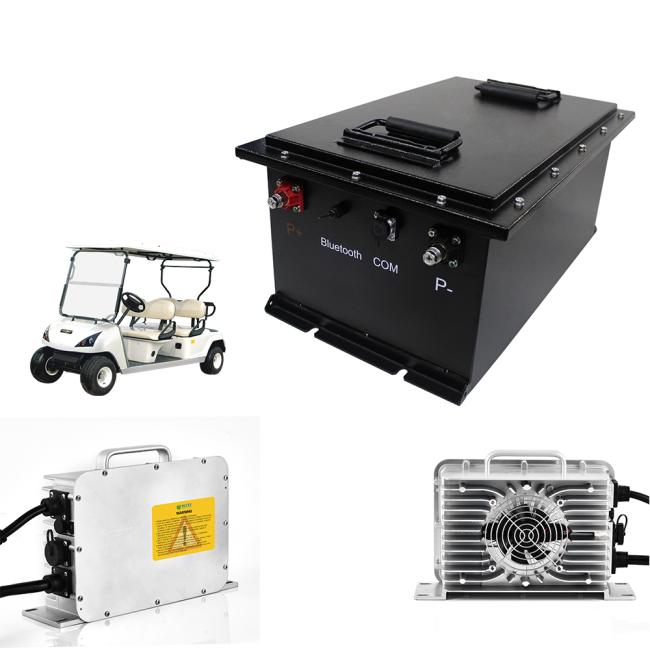

Rechargeable 51.2V 100Ah LiFePO4 Battery Pack For Golf Cart / EV
Electrical Characteristics | Model | ELT-EV-5K | ELT-EV-8K | |||
| Nominal Voltage | 51.2V | |||||
| Nominal Capacity | 100Ah | 160Ah | ||||
| Energy | 5120Wh | 8192Wh | ||||
| Battery Type | LiFePO4 Battery | |||||
| Internal Resistance | ≤10mΩ | |||||
| Life Span | >4000 cycles | |||||
| Months Self Discharge | <3% | |||||
| Efficiency of Charge | 100%@0.5C | |||||
| Efficiency of Discharge | 96-99% @1C | |||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | ||||
| Charge Mode | 0.2C to 58.4V, then 40V charge current to 0.02C(CC/CV) | |||||
| Continuous Charge Current | 55A | 160A | ||||
| Standard Discharge | Continuous Discharge Current | 200A | 200A | |||
| Max. Pulse Current | 400A | 400A | ||||
| Discharge Cut-off Voltage | 40V | |||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | ||||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | |||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | |||||
| Water Dust Resistance | IP67 | |||||
| Mechanical | Package | Metal Case | ||||
| Dimensions(mm.) | 509*334*230mm | 339*230*779mm | ||||
Weight(kg.) | 45KG | |||||
| 68KG | ||||||
| Others | Certification | CE, MSDS, UN38.3 | ||||
| Warranty | Standard 3 years, 10+ years upon request | |||||
| OEM | Support for customized dimension, current, logo and so on. | |||||
Features Of Our Lifepo4 Battery
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current up to 200A, peak discharge current 400A.
4. Elite batteries have passed different safety tests.
5. Bluetooth function for checking battery information well.
6. LCD display and charger are optional
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over current protection
5.Cell balancing
Elite Advantage
1. Factory supply competitive price for every battery models
2. OEM battery pack for customzied dimension, color, logo, battery current,case material ... ...
3. Support sample order for quality checking
4. Certified with CE, MSDS, UN38.3 and 100% inspection before delivery.
5. Standard 3 years, 10+ years upon request for after-sales service.
6. One-stop service from order to shipment.
Safety instructions
Stop charging the battery if charging isn't completed within the specified time.
Stop using the battery if the battery becomes abnormally hot, order, discoloration, deformation, or
abnormal conditions is detected during use, charge, or storage.
If the terminals of the battery become dirty, wipe with a dry cloth before using the battery.
The battery can be used within the following temperature ranges. Don't exceed these ranges.
Charge temperature ranges : 0ºC ~ 45ºC
Discharge Temperature ranges : -20ºC ~ 60ºC
Store the battery at temperature below 45ºC
Cover terminals with proper insulating tape before disposal.
