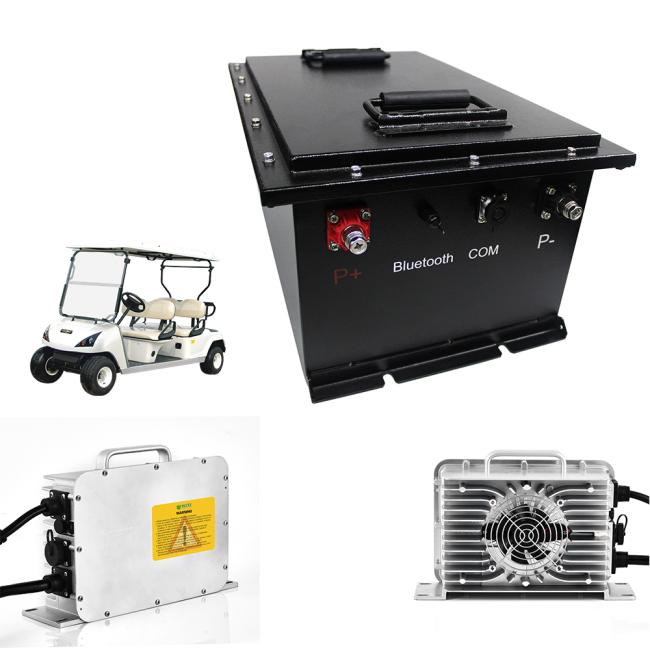

Golf Cart 48V Li Ion Battery Pack 51.2V 160Ah LiFePO4 Deep Cycle
Battery Features
1. Environment Friendly
No leaking of hazardous battery gases and acids. Maintenance-free and easy to clean.
2.Higher Energy Effiency
Support fast charge and discharge,strong charging acceptance and quick-charging capability.
3. Long Life
LiFePO4 battery has a long life cycle which is more than 4000 times and its life span is up to 10 years.
4. Powerful System
No loss of performance even with decreasing battery charge.
5. Communication Function
RS485/CAN port are support communicate with EV and know the status well.
6. Optional Accessories
LCD screen for show the batteries information and charger for charging is optional.
| 51.2V 160AH EV Battery Specifications | |
| Model | ELT-EV-8K |
| Electric Characteristics | |
| Nominal Voltage | 51.2V |
| Rated Capacity (0.2C) | 160AH |
| Energy | 8192Wh |
| Internal Resistance | ≤ 100mΩ |
| Cycle life (0.2C,20ºC±5ºC) | 4000 cycles @ 80% DOD |
| Charging Parameters | |
|
Constant Charge Current(A)
|
160A |
| Charge Cut-off Voltage | 58.4V |
| Discharging Parameters | |
|
Constant Discharge Current(A) |
200A(Peak 400A 35S) |
| Discharge Cut-off Voltage | 40V |
| Temperature Parameters | |
|
Operation Temperature Range 60+-25% R.H.) |
Charge: 0-45ºC |
| Discharge:-20ºC~60ºC | |
| Recommend:23±5ºC | |
|
Storage Temperature Range (60+-25% R.H.) |
Less than 1 Year :-20-25ºC |
| Less than 3 Months: -20~40ºC | |
| Mechanical Properties | |
| Dimensions | Length: 339mm |
| Width: 779mm | |
| Height:230mm | |
| Weight | 068KG |
| Housing Material | Metal |
| Terminal Model | M8 |
| Warranty : 3 Years | |
BMS Protection
| Built in Automatic Battery Protection System | Yes |
| Automatic Low Voltage Disconnect | Yes |
| Automatic Short Circuit Protection | Yes |
| Automatic Over Voltage Protection | Yes |
| Automatic Over Current Protection | Yes |
| Automatic Internal Cell Balancing | Yes |
| Automatic Over Charge Protection | Yes |
| Automatic Over Discharge Protection | Yes |
| Automatic Over Temperature Protection | Yes |
Packaging
With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Shipment
Shipment:By air, by sea, by express, by railway, etc.
