VOE14589732 14589732 Bucket Repair Kit Hydraulic Cylinder For EW180C EW180D SUNCARVO.L.VO Seal Kit

Price Negotiable
Price: Negotiation
MOQ: Trial order acceptable
Delivery Time: 3-5 days after payment received(public holiday excluded)
Brand: SUNCAR
Product Description

VOE14589732 14589732 Bucket Repair Kit Hydraulic Cylinder For EW180C EW180D SUNCARSUNCARSUNCARVO.L.VO Seal Kit



Product Name Bucket Cylinder Seal Kit
Part Number VOE14589732, 14589732
Model Number SUNCARSUNCARSUNCARVO.L.VO EW180C, EW180D, EW180E
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Hydraulic cylinder seal kit, excavator service kit
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...

Feature High sealing performance, wear resistance, heat resistance
AppliC.A.Tion Bucket



Product Description:

  • Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
  • There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
  • Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
  • Arm cylinder is the top one, and it's usually be called as top cylinder;
  • Bucket cylinder is the one that connects and controls the bucket.



Product Show:

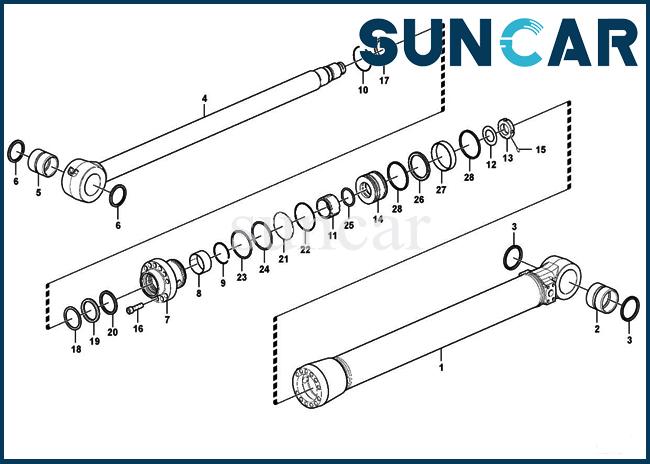

Pos. Part No Qty Parts name
  VOE14547233 [1] Bucket cylinder
1 VOE14541276 [1] Tube
2 VOE14517943 [1] Bushing
3 VOE14560205 [2] Seal
4 VOE14541277 [1] Rod
5 VOE14517946 [1] Bushing
6 VOE14503887 [2] Seal
7 VOE14513327 [1] Head
8 SA9612-07540 [1] Bearing
9 SA9557-06500 [1] Retaining ring
10 SA9556-07500 [1] Retaining ring
11 VOE14513465 [1] Cushion
12 VOE14549124 [1] Washer
13 VOE14524623 [1] Lock nut
14 VOE14549123 [1] Piston
15 VOE14535763 [1] Screw
16 VOE13949445 [12] Screw
17 SA9564-20750 [1] Seal
18 SA9567-20751 [1] Back-up ring
19 SA9563-20751 [1] Seal
20 VOE14502455 [1] Seal
21 SA9566-41050 [1] Back-up ring
22 VOE990597 [1] O-ring
23 SA9566-11000 [1] Back-up ring
24 VOE990642 [2] O-ring
25 VOE990633 [1] O-ring
26 VOE14512068 [1] Seal
27 SA9565-21100 [1] Wear ring
28 SA9568-01100 [2] Seal
100 VOE14589732 [1] Sealing kit
