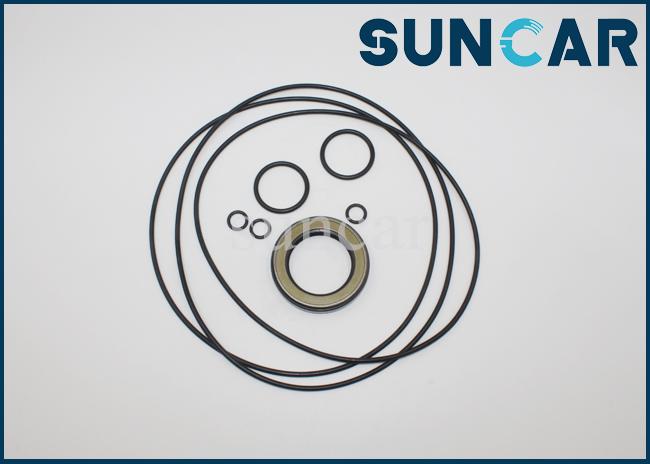

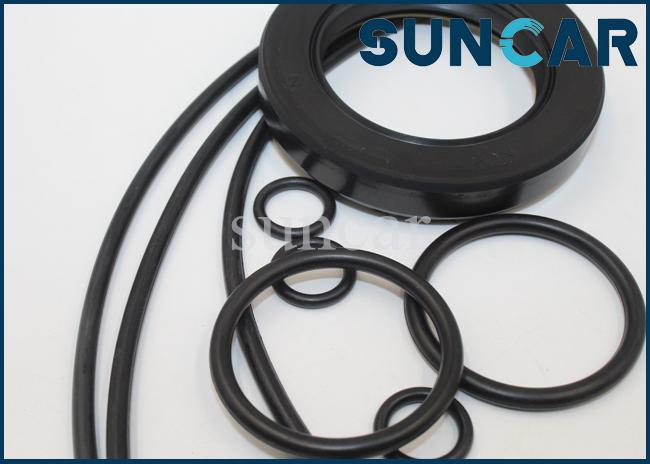

Swing Motor Seal Repair Kit K9001903 For DX180LC DX225LC DX480LC Doosan Spare Parts
Swing Motor Seal Repair Kit K9001903 For DX180LC DX225LC DX480LC Doosan Spare Parts
| Product Name | Swing Motor Seal Repair Kit |
| Part Number | K9001903 |
| Model Number |
DOOSAN DX180LC, DX190W, DX210W, DX225LC, DX225LL, DX225NLC, DX235NLC, DX480LC, DX520LC / DX520LCA, TXC225LC-2 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Swing Motor Seal Kit, Hydraulic Service Kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |

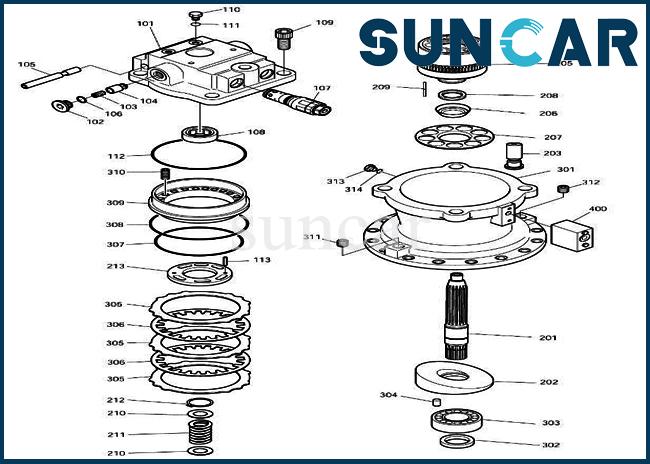

Related Parts:
| Pos. | Part No | Qty | Parts Name |
| *. | K9008336 | [1] | SEAL KIT;SWING MOTOR |
| *. | K9001903 | [1] | SEAL KIT;SWING MOTOR |
| -. | K1000697A | [1] | SWING MOTOR |
| -. | 170303-00048 | [1] | |
| 101 | *NA00351 | [1] | CASING;VALVE |
| 102 | 2.121-00009 | [2] | PLUG |
| 103 | K9001840 | [2] | SPRING |
| 104 | K9001841 | [2] | PLUNGER |
| 105 | 1.420-00016 | [1] | VALVE;SWING REACTIONLESS |
| 105 | K9006899 | [1] | VALVE;SWING REACTIONLESS |
| 106 | S8000341 | [2] | O-RING |
| 107 | 1.420-00111 | [2] | VALVE;RELIEF |
| 107 | K9008333A | [2] | VALVE,RELIEF |
| 108 | S6005050 | [1] | BEARING;BALL |
| 109 | S2227561 | [4] | BOLT;SOCKET |
| 110 | 2181-1950D1 | [2] | PLUG |
| 111 | S8000111 | [2] | O-RING |
| 112 | K9001842 | [1] | O-RING |
| 113 | S5741162 | [2] | PIN;SPRING |
| 201 | K9001843 | [1] | SHAFT;DRIVE |
| 202 | K9001844 | [1] | PLATE;SWASH |
| 203 | K9001845 | [1] | PISTON & SHOE ASSEMBLY |
| 205 | K9001846 | [1] | BLOCK;CYLINDER |
| 206 | 1.148-00015 | [1] | BALL;THRUST |
| 207 | 1.412-00092 | [1] | PLATE;RETAINER |
| 208 | 1.114-00009 | [1] | COLLAR |
| 209 | 1.109-00134 | [5] | ROLLER |
| 210 | 1.114-00286 | [2] | WASHER |
| 211 | 1.131-00048 | [1] | SPRING |
| 212 | S6510620 | [1] | RING;SNAP |
| 213 | K9001847 | [1] | PLATE;TIMING |
| 301 | K9001848 | [1] | CASING |
| 301 | K9001848A | [1] | CASING |
| 302 | 180-00219 | [1] | SEAL;OIL |
| 302 | K9006399 | [1] | SEAL;OIL |
| 303 | S6005090 | [1] | BEARING;BALL |
| 304 | 1.123-00053 | [1] | PIN,PARALLEL |
| 305 | 352-00014 | [3] | PLATE,SEPARATION |
| 306 | 412-00013 | [2] | PLATE,FRICTION |
| 307 | 180-00220 | [1] | O-RING |
| 308 | 180-00221 | [1] | O-RING |
| 309 | 452-00020 | [1] | PISTON;BRAKE |
| 310 | 129-00062 | [18] | SPRING;BRAKE |
| 311 | 2181-1116D4 | [1] | PLUG |
| 311 | 181-00346 | [1] | PLUG |
| 312 | 2181-1116D2 | [1] | PLUG |
| 313 | 2181-1950D1 | [1] | PLUG |
| 314 | S8000111 | [1] | O-RING |
| 400 | 420-00110 | [1] | VALVE;BRAKE |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.
Some Policies Regarding Product Ordering:
- Payment Policy:
We accept PayPal, TT, Western Union.
- Shipping Policy:
Usually ships within 3 business days of receiving the order.
- Refund policy:
We allow product replacement, and returned items must be in brand new condition, unused, including original parts and labels. Shipping or any other related charges will be paid by the buyer. We do not accept returns if the item is installed or damaged for some reason.
- Responsibility:
We are only responsible for the parts we sell. If there is any problem with the parts, we can accept returns, refunds or replacements, please understand that we do not compensate you for labor, trailers, repairs, rental costs or any other related costs.
Product Show:
