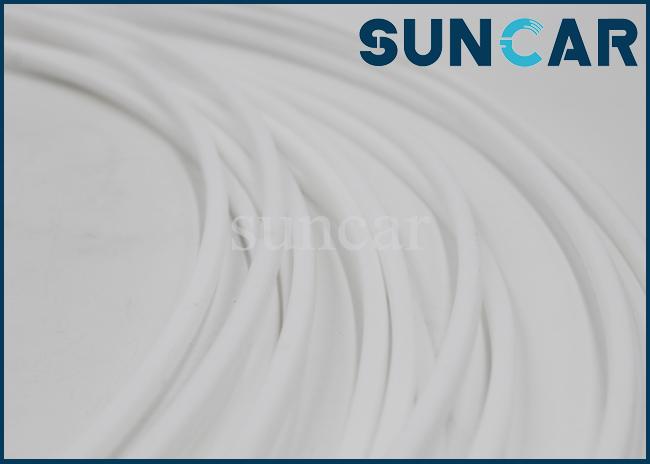

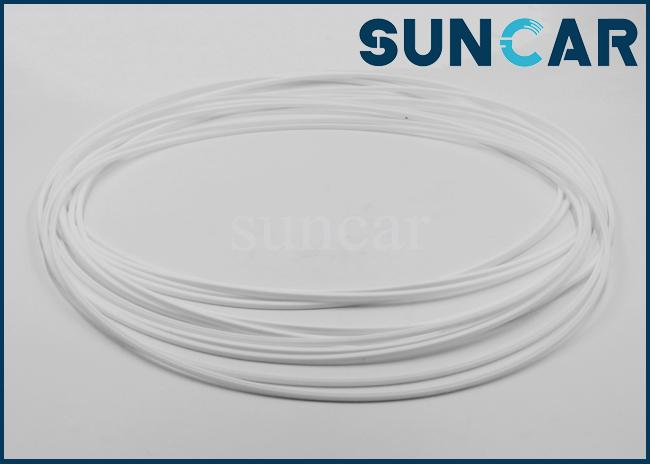

D135A-2 D85A-21 Bulldozer 582-15-19240 5821519240 Transmission Seal Ring Komatsu Gearbox Seals
D135A-2 D85A-21 Bulldozer 582-15-19240 5821519240 Transmission Seal Ring Komatsu Gearbox Seals
| Product Name | Gearbox Seal Ring/ Transmission Seal Ring |
| Part Number | 582-15-19240, 5821519240 |
| Model Number |
BULLDOZERS D135A-2, D155A-1, D155A-2, D155W-1, D65EX-16, D65PX-16, D65WX-16, D85A-21, D85E-21, D85P-21; COMPACTORS WF600T-1; WF650T-3; PIPELAYERS D155C-1, D355C-3, D85C-21; WHEEL DOZERS WD600-3; WHEEL LOADERS 568, WA600-3, WA700-3L Komatsu |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic Oil Seal, Hydraulic Seal Ring |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |
| Size | 429*421*3.8 |
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder

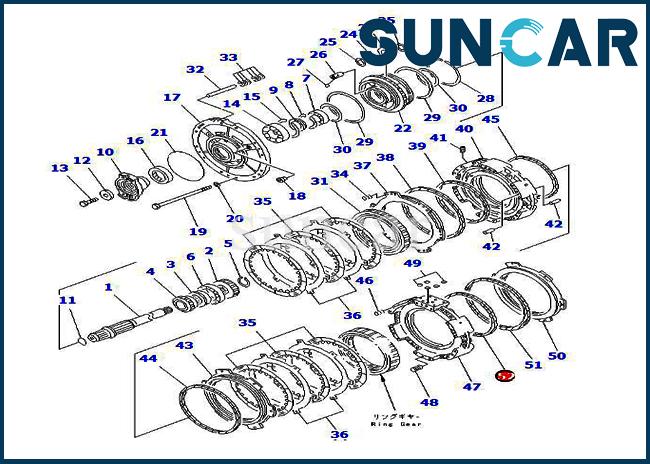

Related Parts:
| Pos. | Part No | Parts Name | Qty |
| 154-15-01012 | TRANSMISSION ASSEMBLY | 1 | |
| 154-15-01110 | • TRANSMISSION ASSEMBLY | 1 | |
| 1 | 154-15-42111 | •• SHAFT | 1 |
| 2 | 154-15-42230 | •• GEAR | 1 |
| 3 | 154-15-42160 | •• COLLAR | 1 |
| 4 | 154-15-42241 | •• GEAR | 1 |
| 5 | 04064-07025 | •• RING | 1 |
| 6 | 06000-06922 | •• BEARING | 1 |
| 7 | 06000-06014 | •• BEARING | 1 |
| 8 | 04065-01104 | •• RING,SNAP | 1 |
| 9 | 154-15-42171 | •• COLLAR | 1 |
| 10 | 154-15-42190 | •• COUPLING | 1 |
| 11 | 07000-05055 | •• O-RING (KIT) | 1 |
| 12 | 154-15-42180 | •• HOLDER | 1 |
| 13 | 01051-51800 | •• BOLT | 1 |
| 14 | 06000-06216 | •• BEARING | 1 |
| 15 | 04071-00140 | •• RING,SNAP | 1 |
| 16 | 07012-10100 | •• SEAL (KIT) | 1 |
| 154-15-01170 | •• HOUSING ASSEMBLY | 1 | |
| 17 | 154-15-41171 | ••• HOUSING | 1 |
| 18 | 07043-70312 | ••• PLUG | 1 |
| 19 | 144-15-21191 | •• BOLT | 16 |
| 20 | 145-14-11571 | •• WASHER | 16 |
| 145-14-11570 | •• WASHER | 16 | |
| 21 | 07000-05250 | •• O-RING (KIT) | 1 |
| 22 | 154-15-42331 | •• CARRIER | 1 |
| 23 | 154-15-42440 | •• GEAR | 4 |
| 24 | 561-15-59410 | •• BEARING | 4 |
| 561-15-49410 | •• BEARING | 4 | |
| 25 | 561-15-32590 | •• WASHER | 8 |
| 26 | 154-15-42530 | •• SHAFT | 4 |
| 27 | 04260-00635 | •• BALL | 4 |
| 28 | 154-15-49510 | •• RING,SNAP | 1 |
| 29 | 154-15-49260 | •• RING,SEAL | 2 |
| 30 | 175-15-69230 | •• RING,SEAL | 2 |
| 31 | 154-15-42641 | •• GEAR,RING | 1 |
| 32 | 175-15-12780 | •• PIN | 6 |
| 33 | 175-15-42880 | •• SPRING | 36 |
| 34 | 234-15-15230 | •• SPRING¤ (L= 52.0) | 12 |
| 35 | 198-15-22810 | •• DISC | 6 |
| 36 | 426-15-12720 | •• PLATE | 4 |
| 37 | 426-15-12750 | •• PISTON | 1 |
| 38 | 426-15-19220 | •• RING,SEAL (KIT) | 1 |
| 39 | 426-15-19210 | •• RING,SEAL (KIT) | 1 |
| 154-15-01180 | •• HOUSING ASSEMBLY | 1 | |
| 40 | 154-15-41160 | ••• HOUSING | 1 |
| 41 | 145-14-11320 | ••• PLUG | 2 |
| 42 | 04020-01434 | •• PIN,DOWEL | 4 |
| 43 | 175-15-62750 | •• PISTON | 1 |
| 44 | 175-15-59250 | •• RING,SEAL (KIT) | 1 |
| 45 | 426-15-19210 | •• RING,SEAL (KIT) | 1 |
| 46 | 234-15-15230 | •• SPRING¤ (L= 52.0) | 12 |
| 47 | 154-15-41150 | •• HOUSING | 1 |
| 48 | 569-15-41310 | •• SLEEVE | 16 |
| 49 | 07000-73022 | •• O-RING (KIT) | 5 |
| 50 | 175-15-62760 | •• PISTON | 1 |
| 51 | 155-15-12811 | •• RING,SEAL (KIT) | 1 |
| 52 | 582-15-19240 | •• RING,SEAL (KIT) | 1 |
FAQ:
Q1. Can we buy small quantity of each item for quality testing?
A: Yes, we are glad to send product for quality testing if we have the item you need in stock.
Q2. What's the price of your product?
A: Please try your best to make your inquiry including each details requirements, like quantity, size, color, logo printing, package...., in order to our sells could send you an accurate quote at first time.
Q3. If the product can’t work in general or damage in working, How can i do ?
A: Product damage or cant work ,you could feedback to us, and send some pictures(or video)to us to check the problems. If is our product quality problem, we resend to you, but do not afford all freight.
Q4. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5. What kind of package do you have?
A: Generally, we can supply neutral package or brand package, we can also design and make special package with your own brand logo.
If you are interested in our products, please feel free to contact me, and you would be satisfied with our product and service.
