VOE14554443 Main Pump Sealing Kit For SUNCARVO.L.VO EC210C EC220D EC235C EC235D ECR235C ECR235D ECR235E FC2121C FC2421C

Name: VOE14554443 Main Pump Sealing Kit For SUNCARVO.L.VO EC210C EC220D EC235C EC235D ECR235C ECR235D ECR235E FC2121C FC2421C
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Trial order acceptable

Delivery Time: 3-5 days after payment received(public holiday excluded)

Brand: SUNCAR

Product Description

VOE14554443 Main Pump Sealing Kit For SUNCARSUNCARSUNCARVO.L.VO EC210C EC220D EC235C EC235D ECR235C ECR235D ECR235E FC2121C FC2421C

Product Name	Main/ Hydraulic Pump Seal Kit
Model Number	SUNCARSUNCARSUNCARVO.L.VO EC210C, EC220D, EC235C, EC235D, ECR235C, ECR235D ECR235E, FC2121C, FC2421C
Material	PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin	China(Mainland)
Brand name	SUNCAR
Packing	PP bag inside, carton box outside
Shipping Mode	By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms	Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion	ISO9001
Warranty	Unavailable
Customized	OEM & ODM are welcomed
C.A.Tegory Group	Hydraulic Service Kits, Pump Seal Kit
Condition	New, genuine new
Sample	Available
Applicable Industries	Building material shops, machinery repair shops, retail, construction work...
Feature	High sealing performance, wear resistance, heat resistance

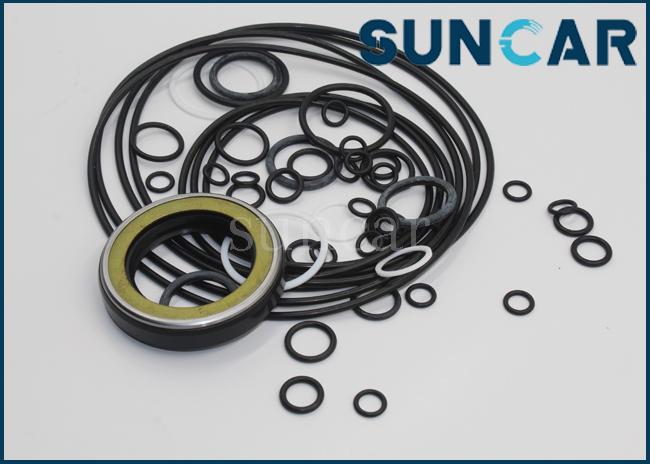

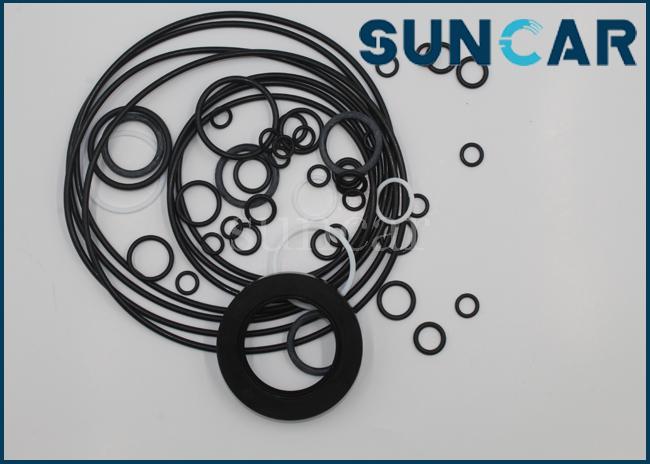

Main Pump Seal Kit

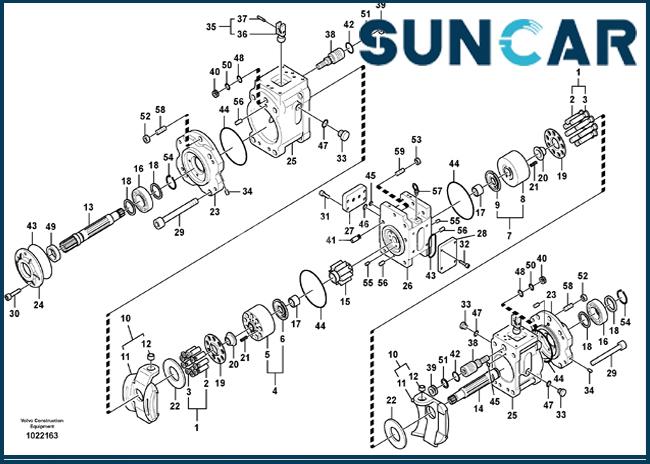

Pos.	Part No	Qty	Parts name
	VOE14531300	[1]	Pump
1	VOE14600771	[2]	Piston
2	VOE14500003	[9]	Piston
3	VOE14500002	[9]	Seat
4	VOE14550188	[1]	Cylinder
5		[1]	Block
6	VOE14550181	[1]	Plate
7	VOE14550189	[1]	Cylinder
8		[1]	Block
9	VOE14550182	[1]	Plate
10	SA8230-09800	[2]	Plate
11		[1]	Plate
12	VOE14500012	[1]	Bushing
13	SA8230-09100	[1]	Main shaft
14	SA8230-09070	[1]	Shaft
15	SA8230-08840	[1]	Gear
16	VOE14535425	[2]	Bearing
17	VOE14535447	[2]	Bearing
18	SA8230-14530	[4]	Spacer
19	SA8230-09370	[2]	Plate
20	VOE14535448	[2]	Bushing
21	SA8230-09710	[18]	Spring
22	SA8230-21920	[2]	Plate
23	SA8230-08940	[2]	Support
24	SA8230-09350	[1]	Flange connection
25	VOE14550179	[2]	Casing
26	VOE14550180	[1]	Block
27	VOE14550183	[1]	Cover
28	VOE14550184	[1]	Cover
29	SA8230-09690	[8]	Hex. socket screw
30	VOE967630	[4]	Hex. socket screw
31	SA8230-25860	[3]	Bolt
32	VOE11705999	[4]	Allen Hd Screw
33	VOE14550185	[4]	Plug
34	VOE14560637	[32]	Plug
35	SA8230-09790	[2]	Pin
36	SA8230-09320	[1]	Pin
37		[1]	Pin
38	SA8230-09250	[2]	Piston
39	SA8230-09640	[2]	Plug
40	SA8230-09650	[2]	Plate
41	VOE14550186	[2]	Spacer
42	VOE14533615	[2]	O-ring
43	VOE14535450	[2]	O-ring
44	VOE14535451	[4]	O-ring
45	VOE14533604	[18]	O-ring
46	VOE14533606	[4]	O-ring
47	VOE14550187	[4]	O-ring
48	VOE14533609	[2]	O-ring
49	VOE14535452	[1]	Seal
50	VOE14625246	[2]	Ring
51	SA9566-20350	[2]	Back-up ring
52	SA8230-25620	[2]	Nut
53	VOE979022	[2]	Hexagon nut
54	VOE13914468	[2]	Snap ring
55	SA8230-26430	[2]	Plate
56	SA7223-00660	[4]	Spring pin
57	VOE14623509	[2]	Eye bolt
58	SA8230-26780	[2]	Bolt
59	SA8230-09700	[2]	Bolt
100	VOE14554443	[1]	Pump kit

Product Show:

Other Available Parts:

Boom cylinder seal kit, bucket cylinder seal kit, stick arm cylinder seal kit, track adjust seal kit, center joint seal kit, pump main seal kit, swing motor seal kit, travel motor seal kit, floating seal, oil seal, pilot valve seal kit, gear pump seal kit, controller valve seal kit, coupling.
Main pump parts, relief valve, swing motor parts, swing device parts, travel motor parts, travel reduction parts, bearing ,
Engine rebuild parts, piston, liner, piston ring, crankshaft, camshaft, rod connecting, engine bearing, valve, valve seat, valve guide, gasket kit, cylinder block , cylinder head, oil pump, water pump, injector, feed pump, pulley, fan.
Solenoid, sensor, air controller, therttle motor, wiper motor, blower motor, start motor.
Teeth, adapter, pin, bucket, bucket pin, bushing, h link, track link, cylinder assy, spring, top roller, track roller, idler, sprocket.
