Kobelco PV15V00002R100 Travel Motor Seal Kit For Excavator[SK025-2]

Name: Kobelco PV15V00002R100 Travel Motor Seal Kit For Excavator[SK025-2]
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Acceptable Trial Order

Delivery Time: 3-5 Days After Payment Received(Public Holiday Excluded)

Brand: Kobelco Travel Motor Seal Kit

Product Description

Kobelco PV15V00002R100 Travel Motor

Seal Kit For Excavator[SK025-2]

Product Name	Kobelco PV15V00002R100 Travel Motor Seal Kit For Excavator[SK025-2]
Part No.	PV15V00002R100
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Hardness	70-90 Shore A
Color	Black, White or other
Size	Standard Size
MOQ	We Accept Trial Order
Packing	PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time	3-5 Days After Payment Received(Public Holiday Excluded)
Payment	Western Union, L/C, T/T, etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Kobelco Excavator
Condition	New
Suitable Model	(SK025-2) - COMPACT EXCAVATOR ASN PV06201 (3/01-9/04) (07-022[01]) - MOTOR ASSY (PROPELLING) » PV15V00002R100 (07-022[02]) - MOTOR ASSY (PROPELLING) » PV15V00002R100

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

Related Parts:

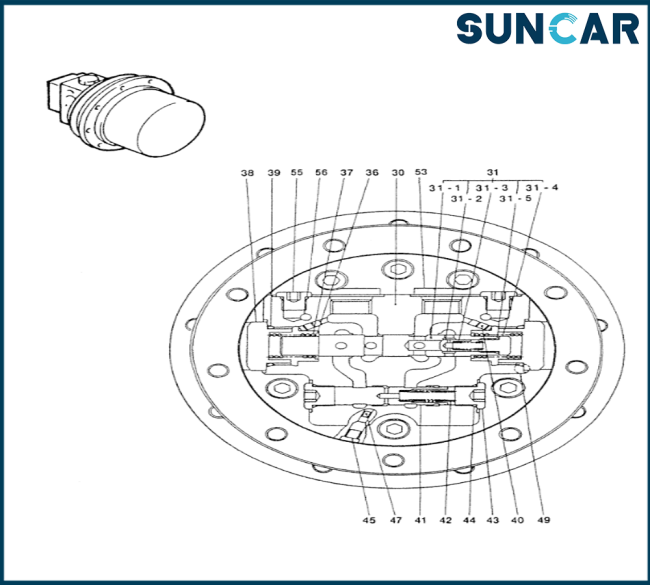

Pos.	Part No	Qty	Parts name
. .	PV15V00002F1	[1]	HYDRAULIC MOTOR
1	PV15V00005F1	[1]	HYDRAULIC MOTOR
2	PV15V00002S002	[1]	SHAFT
3	PV15V00002S003	[1]	BEARING, BALL
4	PV15V00002S004	[1]	OIL SEAL
5	PV15V00002S005	[1]	SWASH PLATE
6	PV15V00002S006	[2]	BALL
7	PV15V00002S007	[1]	CYLINDER
8	PV15V00002S008	[1]	SPRING SEAT
9	PV15V00002S009	[1]	SPRING
10	PV15V00002S010	[1]	WASHER
11	2441U901S16	[1]	RING, SNAP
12	PV15V00002S012	[3]	SPLIT PIN/SAFETY PIN
13	PV15V00002S013	[1]	BALL JOINT
14	PV15V00002S014	[1]	RETAINING PLATE
15	PV15V00002S015	[9]	PISTON ASSY.
16	PV15V00002S016	[1]	DISC
17	PV15V00002S017	[1]	PISTON BREAKE
18	PV15V00002S018	[10]	SPRING
19	NSS	[2]	NOT SOLD SEPARAT
20	PV15V00002S020	[2]	SPRING
21	ZD12G09500	[1]	O-RING,3.1mm Thk x 94.4mm ID, 90 Duro
22	ZD85G09500	[1]	BACK-UP RING
23	ZD12G10500	[1]	O-RING,104.40mm ID x 110.60mm OD x 3.10mm
24	ZD85G10500	[1]	O-RING
25	PV15V00002S025	[1]	PILOT VALVE
26	2441U901S19	[1]	PIN
27	PV15V00002S027	[1]	BEARING, BALL
28	ZD11G12000	[1]	O-RING,119.40mm ID x 125.60mm OD x 3.10mm
29	ZD12P00700	[4]	O-RING,1.6mm Thk x 6.8mm ID, 90 Duro
30	PV15V00002S030	[1]	PLATE
31	PV15V00006F1	[1]	PLUNGER ASSY
31-1.	PV15V00006S001	[1]	PLUNGER
31-2.	2441U942S53	[2]	VALVE CHECK
31-3.	2441U942S54	[2]	SPRING
31-4.	2441U942S55	[2]	PLUG
31-5.	ZD12P01000	[2]	O-RING
36	2441U942S57	[2]	SEAT SPRING
37	PV15V00002S037	[2]	SPRING
38	2441U942S59	[2]	CAP
39	ZD12P02900	[2]	O-RING
40	PV15V00002S040	[4]	ORIFICE
41	2441U942S62	[1]	SPOOL
42	PV15V00002S042	[1]	SPRING
43	2441U802S58	[2]	PLUG
44	ZD12P01400	[2]	O-RING
45	2441U802S47	[5]	PLUG
46	PV15V00002S046	[2]	SPLIT PIN/SAFETY PIN
47	PV15V00002S040	[5]	ORIFICE
48	ZS23C10025	[6]	SCREW,Hex Socket Head, M10 x 25mm
49	2441U942S70	[2]	PIN
50	PV15V00007F1	[1]	VALVE ASSY, BLOCK RELIEF, SEE FIG. 07-024
55	2441U984S35	[2]	PLUG
56	ZD12P01100	[2]	O-RING
60	ZE82T04000	[1]	PLUG
AR.	PV15V00002R100	[1]	HYD PUMP REPAIR KIT
AR.	PV15V00002R200	[1]	REPAIR KIT CONSISTS OF REF. 30, 31, 41
AR.	PV15V00002R300	[1]	REPAIR KIT
