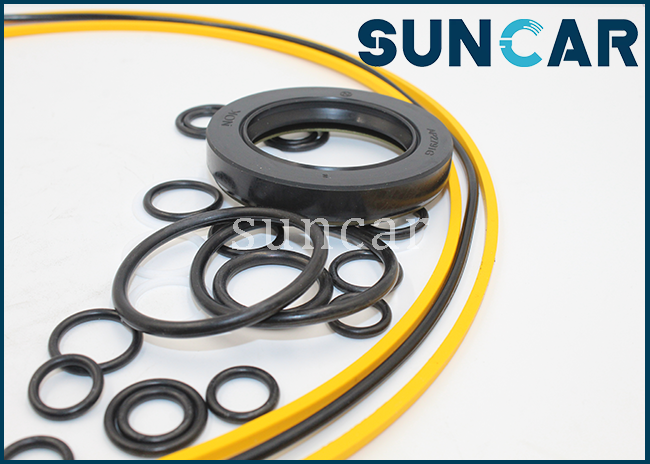

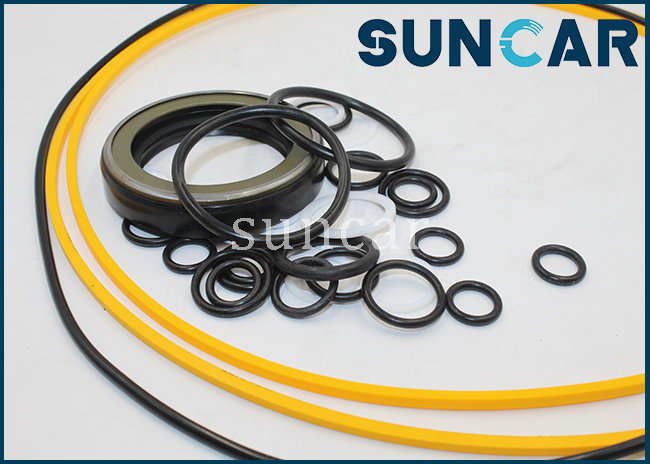

Kobelco PW15V00002F1 Travel Motor Seal Kit For Excavator[SK030-2]
Kobelco PW15V00002F1 Travel Motor
Seal Kit For Excavator[SK030-2]
| Product Name |
Kobelco PW15V00002F1 Travel Motor Seal Kit For Excavator[SK030-2] |
|---|---|
| Part No. | PW15V00002F1 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Hardness | 70-90 Shore A |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Kobelco Excavator |
| Condition | New |
| Suitable Model |
(SK030-2) - COMPACT EXCAVATOR ASN PW04401 (1/03-12/04) (07-021[01]) - MOTOR ASSY (PROPELLING) » PW15V00002F1 (07-021[02]) - MOTOR ASSY (PROPELLING) » PW15V00002F1 (02-002) - LOW GROUP (FOR EXPORT) » PW15V00002F1 |
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.

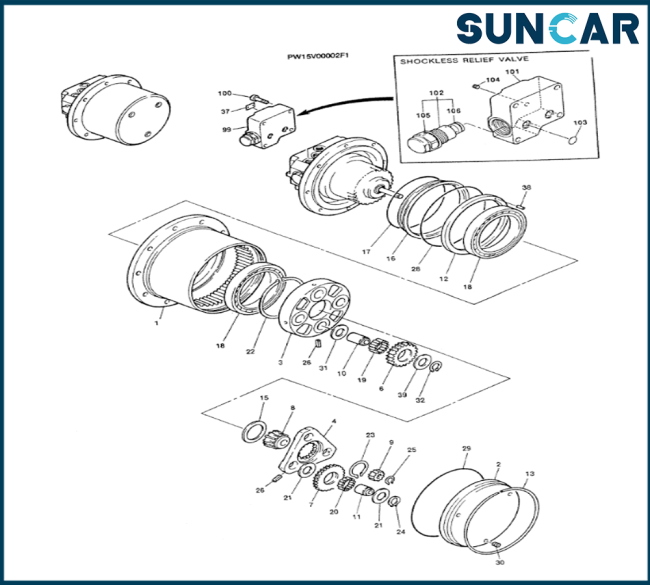

Related Parts:
| Pos. | Part No | Qty | Parts name |
| .. | PW15V00002F1 | [1] | HYDRAULIC MOTOR |
| 16 | PR15V00004S016 | [1] | SEAT BACK |
| 18 | PR15V00004S018 | [2] | BEARING ASSY |
| 21 | 2441U830S120 | [6] | WASHER, THRUST |
| 23 | ZR16X03500 | [1] | RING |
| 24 | ZR16X02500 | [3] | RING |
| 25 | PR15V00004S025 | [1] | SNAP RING |
| 26 | 2441U830S125 | [7] | PIN |
| 28 | PR15V00004S028 | [1] | O-RING |
| 29 | PR15V00004S029 | [1] | O-RING |
| 30 | ZE82T06000 | [3] | PLUG |
| 31 | 2441U830S119 | [4] | THRUST WASHER |
| 32 | ZR16X03000 | [4] | SNAP RING |
| 68 | 2441U961S121 | [1] | BALL BEARING |
| 69 | PW15V00002S069 | [1] | BEARING ASSY |
| 70 | ZD12G12500 | [1] | O-RING,124.40mm ID x 130.60mm OD x 3.10mm |
| 71 | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro |
| 74 | ZD12P02500 | [2] | O-RING |
| 75 | ZD12P01400 | [2] | O-RING |
| 76 | ZD11P01250 | [2] | O-RING |
| 77 | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro |
| 78 | ZD12P00700 | [2] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro |
| 79 | PR15V00004S084 | [1] | OIL SEAL |
| 81 | ZR26X02800 | [1] | RING |
| 82 | ZS23C10025 | [7] | SCREW,Hex Socket Head, M10 x 25mm |
| 83 | PR15V00004S088 | [1] | LINCH PIN |
| 84 | PY15V00002S248 | [1] | SPLIT PIN/SAFETY PIN |
| 85 | 2436R1665S14 | [6] | PLUG |
| 93 | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm |
| 94 | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm |
| 96 | ZD75G11000 | [1] | RING |
| 97 | ZD75G10000 | [1] | BACK-UP RING |
| 98 | ZD75G09500 | [1] | BACK-UP RING |
| 100 | ZS23C06030 | [4] | SCREW,Hex Socket Head, M6 x 30mm |
| .. | PR15V00004R100 | [1] | REPAIR KIT |
| .. | PR15V00004R200 | [1] | REPAIR KIT |
| .. | PW15V00002R100 | [1] | REPAIR KIT |
| .. | PW15V00002R200 | [1] | REPAIR KIT |
