Kobelco 2441U525R100 Travel Motor Seal Kit For Excavator[SK04L-2, SK04-2]

Name: Kobelco 2441U525R100 Travel Motor Seal Kit For Excavator[SK04L-2, SK04-2]
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Acceptable Trial Order

Delivery Time: 3-5 Days After Payment Received(Public Holiday Excluded)

Brand: Kobelco Travel Motor Seal Kit

Product Description

Kobelco 2441U525R100 Travel Motor

Seal Kit For Excavator[SK04L-2, SK04-2]

Product Name	Kobelco 2441U525R100 Travel Motor Seal Kit For Excavator[SK04L-2, SK04-2]
Part No.	2441U525R100
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Hardness	70-90 Shore A
Color	Black, White or other
Size	Standard Size
MOQ	We Accept Trial Order
Packing	PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time	3-5 Days After Payment Received(Public Holiday Excluded)
Payment	Western Union, L/C, T/T, etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	Kobelco Excavator
Condition	New
Suitable Model	(SK04-2) - COMPACT EXCAVATOR BTW LW-7801 - LW-8644 (1/86-12/03) (11-021) - MOTOR ASSY (PROPELLING) P/N 2441U525F1 » 2441U525R100 (SK04L-2) - COMPACT EXCAVATOR BTW LX-1401 - LX-1422 (1/85-12/06) (11-021) - MOTOR ASSY (PROPELLING) P/N 2441U525F1 » 2441U525R100

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

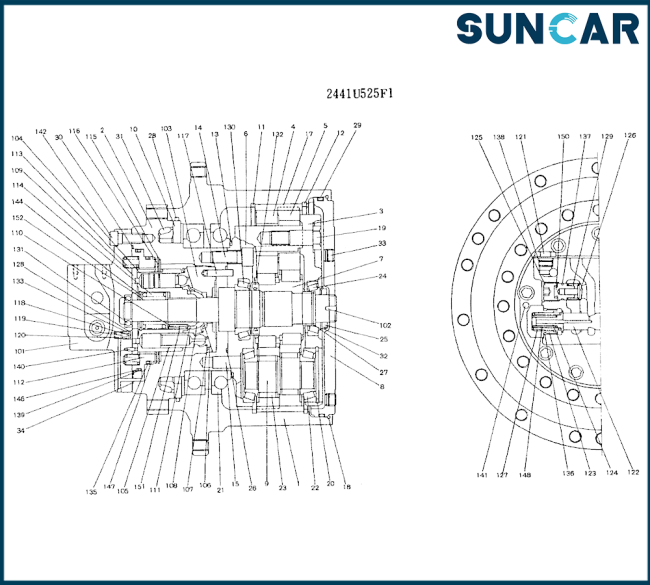

Related Parts:

Pos.	Part No	Qty	Parts name
. .	2441U525F1	[1]	MOTOR ASSY (PROPELLING)
1	2441U525S1	[1]	HUB
8	2441U525S8	[1]	COVER
10	2441U524S10	[1]	COLLAR CLAMP
11	2441U525S11	[1]	RING
12	2441U525S12	[1]	RING
13	2441U524S13	[1]	SPACER
14	ZS23C18050	[9]	SCREW,Hex Socket Head, M18 x 50mm
15	2441U524S15	[6]	PIN
17	2441U524S17	[60]	PIN
18	2441U525S18	[1]	RING
20	2441U525S20	[3]	SNAP RING
21	2441U524S21	[2]	BALL BEARING
24	2441U525S24	[1]	BEARING, ROLLER
25	ZN51F08000	[1]	NUT
26	2441U524S27	[1]	O-RING
27	ZR16X05000	[1]	RING
28	ZD12G26000	[1]	O-RING,259.30mm ID x 270.70mm OD x 5.70mm
29	2441U525S29	[1]	O-RING
30	2441U525S30	[1]	O-RING
31	2441U524S31	[1]	FLOAT
32	ZW51808000	[1]	LOVK WASHER
33	2441U496S25	[2]	PLUG
34	ZD12P00600	[1]	O-RING
102	2441U525S102	[1]	SHAFT
103	2441U525S103	[1]	PLATE
104	2441U524S104	[1]	CYLINDER BLOCK
107	2441U524S107	[1]	PLATE
108	2441U524S108	[1]	BALL
109	2441U524S109	[1]	PLATE
110	2441U524S110	[1]	WASHER
111	2441U524S111	[1]	SPACER
112	2441U524S112	[1]	PISTON
113	2441U496S39	[8]	SPRING
114	2441U525S114	[1]	SPRING
115	2441U524S115	[2]	PLATE
116	2441U496S42	[2]	PLATE
117	2441U524S117	[1]	PIN
118	2441U496S44	[1]	SPRING SEAT
119	2441U496S45	[1]	HYDRAULIC VALVE
120	2441U496S46	[1]	SPRING
121	2441U525S121	[1]	PLUG
123	2441U496S48	[2]	PLUG
124	2441U525S124	[2]	STOPPER
125	2441U524S126	[2]	PLUG
126	2441U496S51	[2]	HYDRAULIC VALVE
127	2441U496S52	[2]	SPRING
128	2441U496S53	[1]	RING
129	2441U496S54	[2]	SPRING
130	2441U525S130	[1]	BEARING, ROLLER
131	25Z377D6	[1]	BALL BEARING
132	2441U525S132	[1]	OIL SEAL
133	ZD12P00900	[1]	O-RING
135	ZD12P14500	[1]	O-RING
136	ZD12P03200	[2]	O-RING
137	ZD12P02000	[2]	O-RING,2.4mm Thk x 19.8mm ID, 90 Duro
138	ZD12P01800	[1]	O-RING
139	ZD12G17000	[1]	O-RING,169.30mm ID x 180.70mm OD x 5.70mm
140	2441U524S141	[2]	PIN
141	2441U524S142	[2]	PIN
142	ZS23C14040	[9]	SCREW,Hex Socket Head, M14 x 40mm
144	2441U524S145	[1]	RING
146	2441U524S147	[1]	BACK-UP RING
147	2441U524S148	[1]	RING, BACK-UP
148	2441U524S129	[2]
150	2441U524S131	[2]
151	2441U524S151	[3]
152	2441U496S36	[1]
. .	2441U525R100	[1]	CONSISTS OF REF. 26,28~31,34 & 132,133,135- 139; 146,147
. .	2441U525R200	[1]	CONSISTS OF REF. 23,6 & 19
. .	2441U525R300	[1]	REPAIR KIT CONSISTS OF REF. 4,5,7,9,22 & 23
. .	2441U525R400	[1]	CONSISTS OF REF. 101 & 122
. .	2441U524R500	[1]	REPAIR KIT
