31Y1-31490 31Y131490 Bucket Cylinder Repair Seal Kit Fits R140LC-9 R145CR-9 Hyundai Excavator
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
31Y1-31490 31Y131490 Bucket Cylinder Repair Seal Kit Fits R140LC-9 R145CR-9 Hyundai Excavator
| Product Name | Bucket Cylinder Repair Seal Kit |
| Part Number | 31Y1-31490, 31Y131490 |
| Model |
9-SERIES CRAWLER EXCAVATOR R140LC-9, R140LC-9A, R140LC-9S, R140LC-9V, R145CR-9, R145CR-9A, RB140LC-9S RD140LC-9; 9-SERIES WHEEL EXCAVATOR R140W-9, R140W-9A, R140W-9S; F-SERIES CRAWLER EXCAVATOR HX140L F-SERIES WHEEL EXCAVATOR HW140 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |

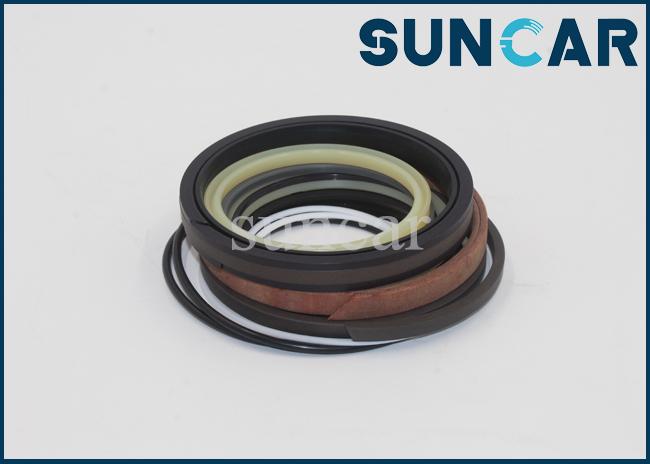

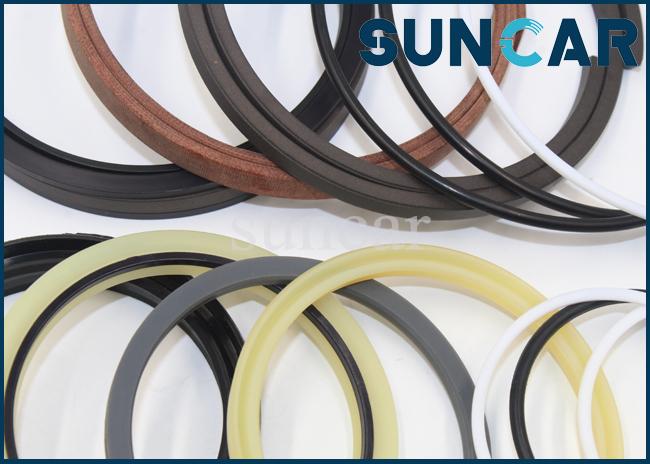

Product Show:
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.

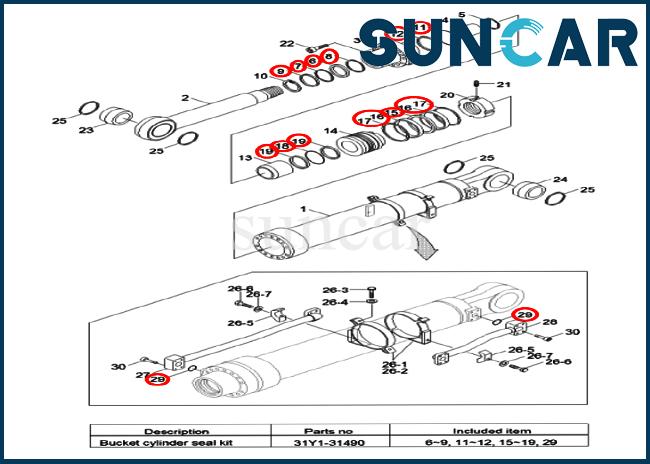

Related Part:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q4-60111 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q4-60112 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q4-60113 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q4-60114 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q4-60112 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q4-60113 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-31331 | [1] | BUCKET CYL SUB ASSY |
| *-1. | 31Y1-31332 | [1] | BUCKET CYL SUB ASSY |
| *-1. | 31Y1-31332 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-31341 | [1] | TUBE ASSY |
| 1 | 31Y1-31342 | [1] | TUBE ASSY |
| 2 | 31Y1-31401 | [1] | ROD ASSY |
| 2 | 31Y1-31402 | [1] | ROD ASSY |
| 2 | 31Y1-31403 | [1] | ROD ASSY |
| 2 | 31Y1-31402 | [1] | ROD ASSY |
| 3 | 31Y1-31440 | [1] | GLAND |
| 4 | S732-070030 | [1] | BUSHING-DD2 |
| 5 | Y191-076000 | [1] | RING-SNAP |
| K6. | Y220-070013 | [1] | SEAL-ROD |
| K7. | Y180-070020 | [1] | RING-BACK UP |
| K8. | Y240-070012 | [1] | RING-BUFFER |
| K9. | Y110-070011 | [1] | WIPER-DUST |
| 10 | Y190-084000 | [1] | RING-SNAP |
| K11. | S632-095004 | [1] | O-RING |
| K12. | S642-095003 | [1] | RING-BACK UP |
| 13 | 31YC-26030 | [1] | RING-CUSHION |
| 14 | 31Y1-31470 | [1] | PISTON |
| 14 | 31Y1-31471 | [1] | PISTON |
| K15. | Y420-100000 | [1] | SEAL-PISTON |
| K16. | Y310-100200 | [2] | RING-WEAR |
| K17. | Y440-100000 | [2] | RING-DUST |
| K18. | S632-050004 | [1] | O-RING |
| K19. | S642-050003 | [2] | RING-BACK UP |
| 20 | 31YC-68010 | [1] | NUT-LOCK |
| 20 | 31YC-68015 | [1] | NUT-LOCK |
| 21 | S114-080144 | [1] | SCREW-SET |
| 22 | S109-140704 | [12] | BOLT-SOCKET |
| 23 | 61Q6-05540 | [1] | BUSHING-PIN |
| 24 | 61Q6-98820 | [1] | BUSHING-PIN |
| 24 | 61M9-90740 | [1] | BUSHING-PIN |
| 25 | Y020-070000 | [4] | SEAL-DUST,DLI,KPU |
| 26 | 31Y1-03820 | [2] | BAND ASSY |
| 26 | 31Y1-03821 | [2] | BAND ASSY |
| 26-1. | 31Y1-03830 | [1] | BAND SUB ASSY |
| 26-2. | 31YC-31040 | [1] | BAND |
| 26-3. | S011-100352 | [2] | BOLT-HEX |
| 26-4. | S411-100002 | [2] | WASHER-SPRINIG |
| 26-5. | 31YC-36010 | [1] | CLAMP-PIPE |
| 26-6. | S015-120502 | [1] | BOLT-HEX |
| 26-7. | S411-120002 | [1] | WASHER-SPRING |
| 27 | 31Y1-33581 | [1] | PIPE ASSY-R |
| 27 | 31Y1-33582 | [1] | PIPE ASSY-R |
| 27 | 31Y1-33582 | [1] | PIPE ASSY-R |
| 27 | 31Y1-33583E | [1] | PIPE ASSY-R |
| 28 | 31Y1-33591 | [1] | PIPE ASSY-B |
| 28 | 31Y1-33592 | [1] | PIPE ASSY-B |
| 28 | 31Y1-33592 | [1] | PIPE ASSY-B |
| 28 | 31Y1-33592E | [1] | PIPE ASSY-B |
| K29. | Y171-019004 | [2] | O-RING |
| 30 | S107-100454 | [8] | BOLT-SOCKET |
| 30 | S107-100456 | [8] | BOLT-SOCKET |
| 30 | S107-100456 | [8] | BOLT-SOCKET |
| K. | 31Y1-31490 | [1] | SEAL KIT |
Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need.
