707-99-43530 Komatsu Wheel Loader Grapple Cylinder Seal Kit WA420-3 Service Kit Cylinder Assy
707-99-43530 Komatsu Wheel Loader Grapple Cylinder Seal Kit WA420-3 Service Kit Cylinder Assy
| Product name | 707-99-43530 Komatsu Wheel Loader Grapple Cylinder Seal Kit WA420-3 Service Kit Cylinder Assy |
| Model Number | Komatsu WA420-3 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Hardness | 70degree-95degree A |
| Packing | PP bag inside, carton box outside |
| Payment Terms | Western Union, L/C, T/T, , D/A, D/P |
| Delivery time | 5-7 Days |
| Shipping Mode | By air, by sea, by express ( Fedex, UPS, DHL, TNT, etc.) |
| Part No. | 707-99-43530 |
| Warranty | Unavailable |
| Size | Standard size |
| Type | Hydraulic cylinder seal kit |
| Brand name | SUNCAR |
| CertifiC.A.Tion | ISO9001 |
| AppliC.A.Tion | Komatsu wheel loader system |
Company Culture:
-- Professional sales team consisted of diligent, dynamic and innovative people with international version.
-- Excellent logistics services ensuring timely delivery of consignments all over the world through ocean, airline, road and railway.
-- Well coordinated and expertly managed operation system adapted.
-- Expert team of after-sales professionals assuring that all our products under excellent maintenance and performance.
SpecifiC.A.Tions:
1.available for all the world
2.Long warranty period
3.Professional Excavator and Bulldozer supplier
4.100% responsibility for our products
Products Show:

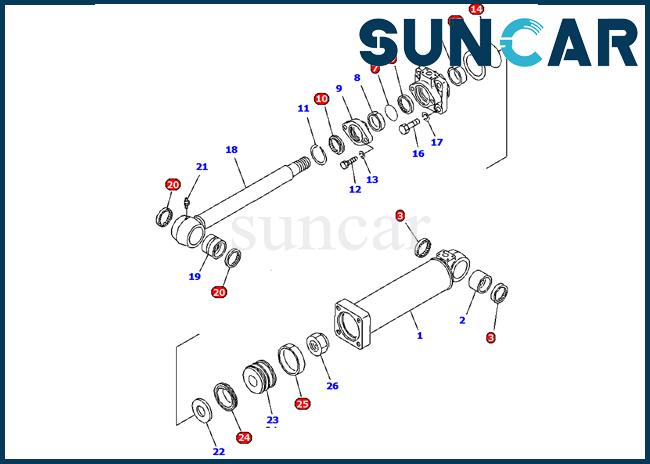

WA420-3 Hydraulic Cylinder Assy Replacement Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| G1. | 707-01-X7190 | [1] | CYLINDER GROUP | |
| G2. | 707-01-X7200 | [1] | CYLINDER GROUP | |
| 707-01-13260 | [1] | CYLINDER ASSEMBLY | 80 kg. | |
| 1. | 707-13-13260 | [1] | CYLINDER | |
| 2. | 707-76-70260 | [1] | BUSHING | |
| 3. | 07145-00070 | [2] | SEAL,DUST (KIT) | 0.034 kg. |
| 4. | 707-27-13251 | [1] | HEAD,CYLINDER | |
| 5. | 07177-07030 | [1] | BUSHING | 0.13 kg. |
| 6. | 707-51-70020 | [1] | PACKING,ROD (KIT) | |
| 7. | 07000-03090 | [1] | O-RING (KIT) | 0.004 kg. |
| 8. | 07177-07015 | [1] | BUSHING | 0.065 kg. |
| 9. | 07178-17035 | [1] | GLAND | |
| 10. | 144-63-95170 | [1] | SEAL,DUST (KIT) | 0.047 kg. |
| 11. | 07179-00093 | [1] | RING,SNAP | 0.007 kg. |
| 12. | 01010-51650 | [2] | BOLT | 0.113 kg. |
| 13. | 01602-21648 | [2] | WASHER,SPRING | 0.014 kg. |
| 14. | 07000-12125 | [1] | O-RING (KIT) | 0.005 kg. |
| 15. | 07146-02126 | [1] | RING,BACK-UP (KIT) | 0.019 kg. |
| 16. | 01010-52265 | [4] | BOLT | 0.275 kg. |
| 17. | 01602-52268 | [4] | WASHER,SPRING | |
| 18. | 707-58-70250 | [1] | ROD,PISTON | |
| 19. | 707-76-70250 | [1] | BUSHING | 0.872 kg. |
| 21. | 07020-00000 | [1] | FITTING,GREASE | 0.006 kg. |
| 22. | 707-40-13280 | [1] | RETAINER | |
| 23. | 707-36-13280 | [1] | PISTON | |
| 24. | 707-44-13180 | [1] | RING,PISTON (KIT) | 0.1 kg. |
| 25. | 07155-01330 | [1] | RING,WEAR (KIT) | 0.054 kg. |
| 26. | 07165-15252 | [1] | NUT | 1.1 kg. |
| 27 | 424-880-1190 | [2] | TUBE,L.H. | |
| 27 | 424-880-1180 | [2] | TUBE,R.H. | 2.331 kg. |
| 28 | 07000-13032 | [2] | O-RING | 0.002 kg. |
| 29 | 01010-81060 | [8] | BOLT | 0.126 kg. |
| 30 | 01643-51032 | [8] | WASHER | 0.17 kg. |
| 31 | 01010-81035 | [1] | BOLT | 0.033 kg. |
| 32 | 01580-11008 | [1] | NUT | 0.011 kg. |
| 33 | 01643-31032 | [2] | WASHER | 0.054 kg. |
| KIT. | 707-99-43530 | [1] | SERVICE KIT | 0.413 kg. |
