2438U1096R100 Bucket Cylinder Repair Kit SK60 Kobelco Excavator Oil Sealing Kits
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

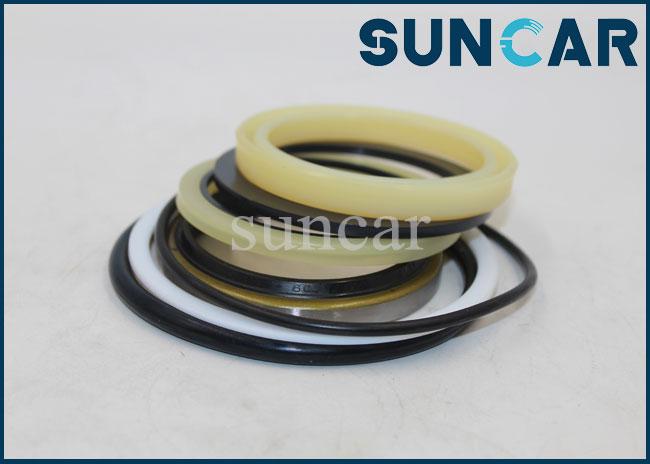

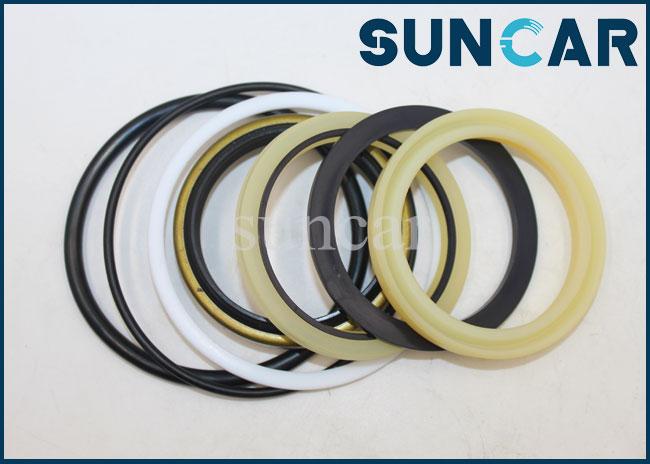

2438U1096R100 Bucket Cylinder Repair Kit SK60 Kobelco Excavator Oil Sealing Kits
| Product Name | Kobelco Cylinder Seal Kit |
| Model Number | Kobelco SK60 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 2438U1096R100 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| Size | Standard size |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| C.A.Tegory | Seal kit |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| Feature | Long service life, high chemical resistance, durable |
| Preservation Notice | Closed, dry and avoid the sun |
| Related Brands | Komatsu, Hitachi, Sumitomo, Doosan, Daewoo, Hyundai, C.A.T, SUNCARSUNCARSUNCARVO.L.VO, Kato... |
| AppliC.A.Tion | Excavator |

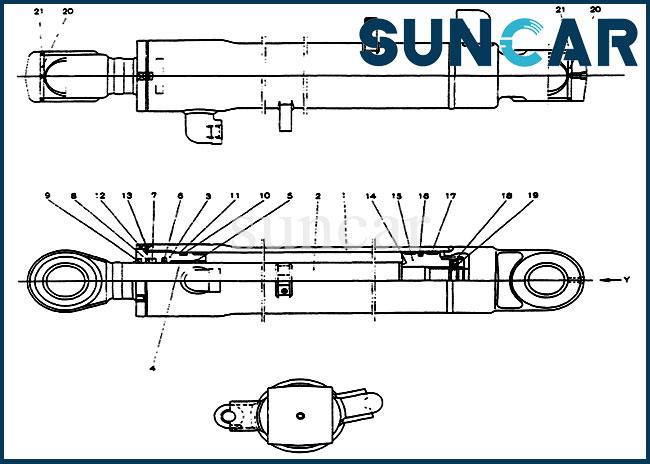

Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| . . | 2438U1096F1 | [1] | CYLINDER | KOB ASSY |
| 1 | 2438U1096S1 | [1] | TUBE | KOB |
| 2 | 2438U1006S2 | [1] | BUSHING | KOB PISTON-ROD |
| 3 | 2438U1096S3 | [1] | CYLINDER HEAD | KOB |
| 4 | 2438U1096S4 | [1] | BUSHING | KOB |
| 5 | 2438U717S6 | [1] | RING | KOB SNAP |
| 6 | 2438U717S17 | [1] | RING | KOB BUFFER |
| 7 | 2438U717S13 | [1] | SNAP RING | KOB U-RING |
| 8 | 2438U717S14 | [1] | RING | KOB BACK-UP |
| 9 | 2438U717S12 | [1] | WIPER BLADE | KOB |
| 10 | 2438U1115S11 | [1] | O-RING | |
| 11 | 2438U1096S11 | [1] | BACK-UP RING | KOB RING,BACK-UP |
| 12 | 2438U1096S12 | [1] | O-RING | KOB O-RING |
| 13 | 2438U1096S13 | [1] | LOCK WASHER | KOB |
| 14 | 2438U986S17 | [1] | SHIM | KOB |
| 15 | 2438U1096S15 | [1] | PISTON | KOB |
| 16 | 2438U1379S15 | [1] | SEAL RETAINER | KOB RING, SEAL |
| 17 | 2438U1096S17 | [2] | RING | KOB |
| 18 | 2438U986S18 | [1] | SET SCREW | KOB SET |
| 19 | 2436U281S37 | [1] | BALL | KOB |
| 20 | 2438U827S11 | [2] | BUSHING | KOB |
| 21 | 2438U717S21 | [4] | SEAL | KOB RING,WIPER |
| . . | 2438U1096R100 | [1] | REPAIR KIT | KOB CONSISTS OF REF 6~13 |
| . . | 2438U1096R200 | [1] | SEAL KIT | KOB CONSISTS OF REF 16, 17 |
| . . | 2438U1096R300 | [1] | REPAIR KIT | KOB CONSISTS OF REF 6~13,16,17 |
Some Part Number Of Kobelco Cylinder Seal Kit:
| YN01V00107R400 | YN01V00106R100 | 2438U1150R300 | YN01V00105R500 |
| YN01V00151R700 | YN01V00112R910 | 2438U1150R200 | YN01V00105R400 |
| YN01V00151R600 | YN01V00112R910 | 2438U1153R300 | YN01V00105R300 |
| YN01V00151R500 | YN01V00112R900 | 2438U693R110 | YN01V00105R200 |
| YN01V00151R400 | YN01V00112R900 | 2438U693R100 | YN01V00105R100 |
| YN01V00151R300 | YN01V00112R800 | 2438U738R200 | YN01V00118R500 |
| YN01V00151R200 | YN01V00112R800 | 2438U738R100 | YN01V00118R400 |
| YN01V00151R100 | YN01V00112R700 | 2438U738R400 | YN01V00132R100 |
| YN01V00175R100 | YN01V00112R600 | 2438U738R300 | YN01V00120R500 |
| YW01V00001R400 | YN01V00112R500 | PE01V00004R100 | YN01V00120R400 |
| YW01V00001R300 | YN01V00112R400 | 2438U1152R300 | YN01V00120R300 |
| YW01V00001R200 | YN01V00112R100 | 2438U703R110 | YN01V00120R200 |
| YW01V00001R100 | YN01V00106R500 | 2438U703R100 | YN01V00120R100 |
| YY01V00001R300 | YN01V00106R400 | 2438U1151R300 | YN01V00118R700 |
| YY01V00001R200 | YN01V00106R300 | 2438U1151R200 | YN01V00118R600 |
Product Image:
