707-98-43650 Ripper Lift Cylinder Sealing Kit Repair Service Kit For D85EX-15 Komatsu
707-98-43650 Ripper Lift Cylinder Sealing Kit Repair Service Kit For D85EX-15 Komatsu
| Product Name | Komatsu Ripper Lift Cylinder Sealing Kit |
| Model Number | KOMATSU D85EX-15 |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) |
| Part Number | 707-98-43650 |
| Payment Terms | Western Union, L/C, T/T, Money Gram, D/A, D/P |
| CertifiC.A.Tion | ISO9001 |
| Condition | 100% New |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Komatsu bulldozer/ Crawler dozers/ mechanics |
| Preservation Notice | Closed, dry and avoid the sun |
| Quality | Original quality, high performance |
| Feature | High chemical resistance, oil resistance |
| C.A.Talog | Cylinder seal kits |
| Size | Standard |
Our Main Product Lines Applied To All Excavator Brand And Models. Partially Listed As Below:
Komatsu: PC30 PC40 PC50 PC55 PC60 PC70 PC100 PC120 PC130 PC200 PC220 PC240 PC300 PC360 PC400 PC460.
Hitachi: EX60 EX100 EX120 EX200 EX220 EX230 EX300 EX330 EX400 EX450 ZAX70 ZAX130 ZAX120 ZAX210 ZAX200 ZAX240 ZAX330 ZAX450.
Doosan: DH55 DH130 DH220 DH200 DH280 DH290 DH320 DH450.
Hundai: R200 R210 R215 R225 R280 R290 R320 R450.
Kato: HD250 HD400 HD450 HD550 HD512 HD7000 HD800 HD820 HD900 HD1023 HD1250 HD1880 HD1430.
Kobelco: SK07 SK09 SK60 SK100 SK120 SK200 SK230 SK250 SK260 SK300 SK400.
SUNCARSUNCARSUNCARVO.L.VO: EC55 EC130 EC210 EC240 EC290 EC360 EC450.
Hydraulic Seal Installation Requirements:
1. The sealing surface of hydraulic seal gasket and flange should be clean.
2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.
3. The pretension of the gasket shall not exceed the design requirements.
4. Torque wrenches are best used when packing asbestos gaskets.
5. When installing the gasket, tighten the nuts one by one.
6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.
Related Parts:
| Pos. | Part No. | Product Name | QYT. |
| G-1 | 707-00-XZ640 | CYLINDER ASSEMBLY,L.H. (FINAL COATING) | 1 |
| G-2 | 707-00-XZ650 | CYLINDER ASSEMBLY,R.H. (FINAL COATING) | 1 |
| 707-00-0E200 | CYLINDER ASSEMBLY,RIPPER LIFT | 2 | |
| 1 | 707-11-13690 | • CYLINDER | 1 |
| 2 | 154-63-42320 | • BUSHING | 1 |
| 3 | 07145-00075 | • SEAL,DUST (KIT) | 4 |
| 4 | 721-58-70180 | • ROD | 1 |
| 5 | 154-63-42320 | • BUSHING | 1 |
| 6 | 707-29-13180 | • HEAD,CYLINDER | 1 |
| 7 | 707-51-70211 | • PACKING,ROD (KIT) | 1 |
| 8 | 707-52-10700 | • BUSHING | 1 |
| 9 | 144-63-95170 | • SEAL,DUST (KIT) | 1 |
| 10 | 07179-12084 | • RING,SNAP | 1 |
| 11 | 07146-02126 | • RING,BACK-UP (KIT) | 1 |
| 12 | 07000-12125 | • O-RING (KIT) | 1 |
| 13 | 07000-12130 | • O-RING (KIT) | 1 |
| 14 | 707-36-13240 | • PISTON | 1 |
| 15 | 707-44-13180 | • RING,PISTON (KIT) | 1 |
| 16 | 07156-01315 | • RING,WEAR (KIT) | 1 |
| 17 | 707-67-52020 | • NUT | 1 |
| 18 | 02896-11015 | • O-RING (KIT) | 2 |
| 19 | 707-86-55110 | TUBE,L.H. | 1 |
| 19 | 707-86-55130 | TUBE,R.H. | 1 |
| 20 | 707-86-55120 | TUBE,L.H. | 1 |
| 20 | 707-86-55140 | TUBE,R.H. | 1 |
| 21 | 707-88-22980 | BRACKET,L.H. | 1 |
| 21 | 707-88-22990 | BRACKET,R.H. | 1 |
| 22 | 01010-81230 | BOLT | 2 |
| 23 | 01643-31232 | WASHER | 2 |
| 24 | 07283-32236 | CLIP | 2 |
| 25 | 01597-01009 | NUT | 4 |
| 26 | 01643-31032 | WASHER | 4 |
| 27 | 02896-11015 | O-RING (KIT) | 2 |
| 707-98-43650 | SERVICE KIT | 2 |

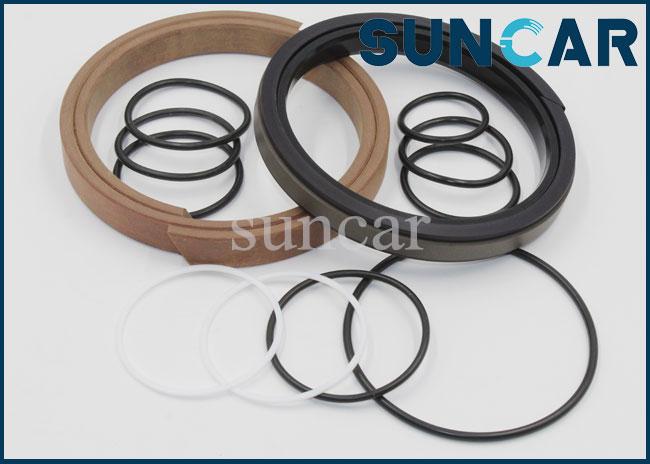

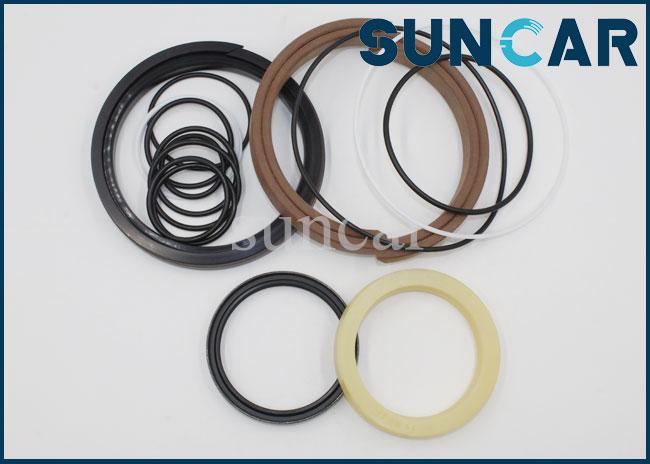

Product Show:
