LZ00313 Bucket Cylinder Service Kit CX800 Case Excavator Hydraulic Arm Sealing Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
LZ00313 Bucket Cylinder Service Kit CX800 Case Excavator Hydraulic Arm Sealing Kit
| Product Name | Case Arm/ Bucket Cylinder Service Kit |
| Model | CASE CX800 |
| Part Number | LZ00313 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction work |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm/ bucket |
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | KUV0114 | [1] | BUCKET CYLINDER |
| . . | LR00457 | [1] | HYD TUBE |
| 2 | LR00458 | [1] | PIPE ASSY. |
| 3 | KUV0037 | [1] | BUSHING |
| . . | LB00453 | [1] | PISTON ROD |
| 5 | LB00454 | [1] | PISTON ROD |
| 6 | KUV0035 | [1] | BUSHING |
| . . | LU00060 | [1] | CYLINDER END CAP |
| 8 | LU00061 | [1] | CYLINDER END CAP |
| 9 | LB00461 | [1] | BUSHING |
| 10 | LA00623 | [1] | LOCKING RING |
| 11 | LE00624 | [1] | RING |
| 12 | LE00485 | [1] | WIPER SEAL |
| 13 | LE00486 | [1] | BACK-UP RING |
| 14 | LE00625 | [1] | SEALING STRIP |
| 15 | LE00626 | [1] | RING |
| 16 | LE00488 | [1] | O-RING |
| 17 | LE00627 | [1] | BACK-UP RING |
| 18 | 108R033W110N | [8] | BOLT |
| 19 | LE00912 | [1] | RING |
| 20 | LJ00626 | [1] | JACK PISTON |
| 21 | LE00628 | [1] | SEALING RING |
| 22 | LE00629 | [2] | SEALING STRIP |
| 23 | LE00630 | [2] | SEALING STRIP |
| 24 | LH00213 | [1] | SEALING STRIP |
| 25 | LA00619 | [1] | SPECIAL NUT |
| 26 | LA00617 | [1] | SCREW,Hex Skt |
| 27 | LB00459 | [1] | BALL |
| 28 | LE00653 | [2] | WIPER SEAL |
| 29 | LE00654 | [2] | WIPER SEAL |
| 30 | LR00448 | [1] | PIPE ASSY. |
| 31 | TBU0048 | [1] | O-RING |
| 32 | LK00249 | [1] | PLUG |
| 33 | 154568A1 | [1] | O-RING |
| 34 | 108R016Z060N | [4] | BOLT |
| 35 | LR00449 | [1] | PIPE ASSY. |
| 36 | 154579A1 | [1] | O-RING |
| 37 | LK00250 | [2] | PLUG |
| 38 | 154539A1 | [2] | O-RING |
| 39 | 156231A1 | [4] | BOLT |
| 40 | LD00022 | [2] | CLAMP BRACKET |
| 41 | LD00023 | [2] | CLAMP BRACKET |
| 42 | 827-14050 | [4] | BOLT,Hex |
| 43 | 892-11014 | [6] | LOCK WASHER |
| 44 | 155736A1 | [2] | HALF-FLANGE |
| 45 | 153910A1 | [2] | BOLT |
| 46 | 892-11014 | [2] | LOCK WASHER |
| 47 | LJ00624 | [1] | BLEEDER |
| 48 | 154467A1 | [1] | O-RING |
| 49 | 153630A1 | [1] | LUBE NIPPLE |
| . . | LZ00313 | [1] | SEAL KIT |

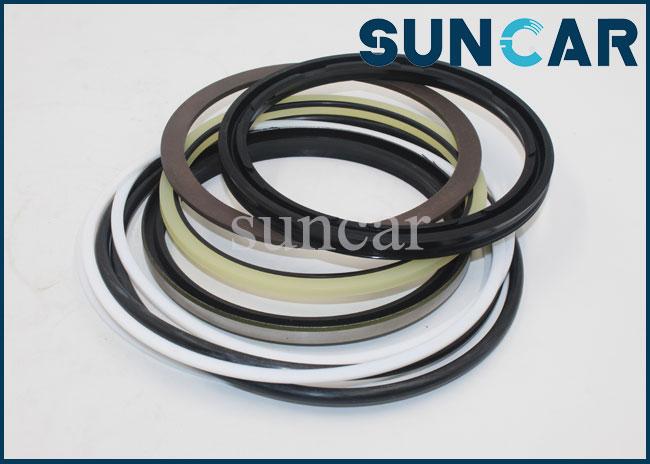

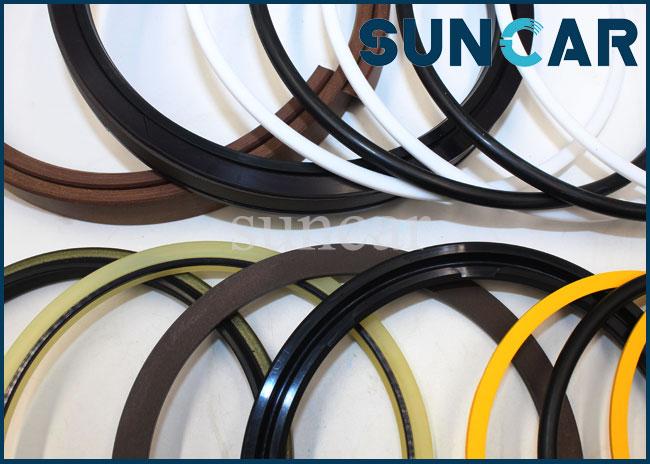

Product Image:
