PX01V00043R300 Dozer Cylinder Seal Repair Kit Fits CASE CX36B CX31B Excavator Sealing Kit
PX01V00043R300 Dozer Cylinder Seal Repair Kit Fits CASE CX36B CX31B Excavator Sealing Kit
| Product Name | Case Dozer Cylinder Seal Repair Kit |
| Part Number | PX01V00043R300 |
| Model | CASE CX36B, CX31B |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Dozer |

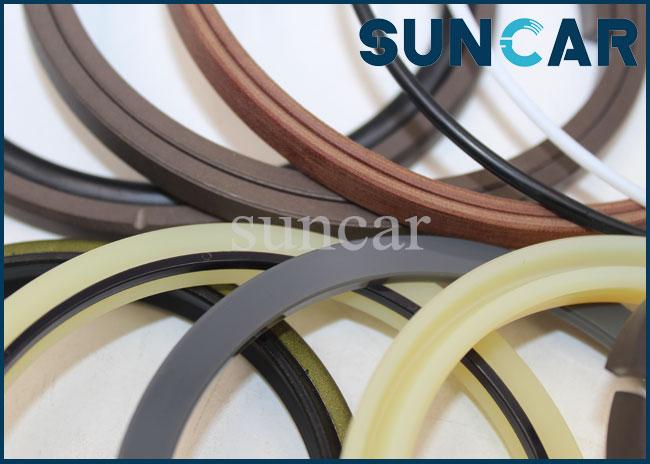

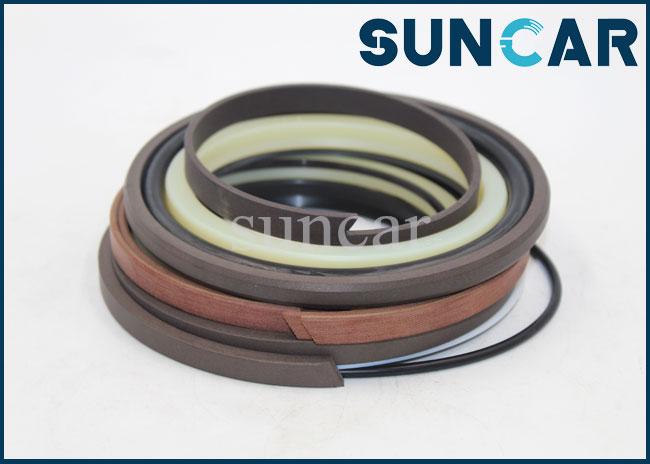

Product Show:
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| . . | PX01V00043F1 | [1] | CYLINDER |
| . . | PX01V00043F2 | [1] | CYLINDER |
| 1 | NSS | [1] | NOT SOLD SEPARAT |
| 2 | PX01V00043S002 | [2] | BUSHING |
| 3 | NSS | [1] | NOT SOLD SEPARAT |
| 4 | PX01V00043S004 | [1] | CYLINDER HEAD |
| 5 | 2438U1163S4 | [1] | BUSHING |
| 6 | 2438U345S15 | [1] | RING |
| 7 | PH01V00011S006 | [1] | GASKET |
| 8 | ZD12G09500 | [1] | O-RING |
| 9 | PY01V00030S008 | [1] | BACK-UP RING |
| 10 | ZD12G10000 | [1] | O-RING |
| 11 | PX01V00043S011 | [1] | PISTON |
| 12 | 2438U827S20 | [1] | SEALING RING |
| 13 | PY01V00030S017 | [2] | RING |
| 14 | 2438U986S18 | [1] | SET SCREW |
| 15 | 2436U281S37 | [1] | BALL |
| 16 | PR01V00002S027 | [4] | SEAL |
| 17 | ZG91S02000 | [1] | LUBE NIPPLE |
| 18 | ZG91V02000 | [1] | LUBE NIPPLE |
| 19 | PX01V00043S019 | [1] | BUSHING |
| K. | PX01V00043R100 | [1] | TUBE |
| K. | PX01V00043R200 | [1] | ROD |
| K. | PX01V00043R300 | [1] | SEAL |
Seal ClassifiC.A.Tion:
- According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
- Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
- Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.
