381101A1 Bucket Cylinder Repair Seal Kit Case 621D Loader Replacement CYL Sealing Parts
381101A1 Bucket Cylinder Repair Seal Kit Case 621D Loader Replacement CYL Sealing Parts
| Product Name | Case Bucket Cylinder Repair Seal Kit |
| Part Number | 381101A1 |
| Model | CASE 621D |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| Rod | 2.25 |
| Bore | 4.125 |
| Cylinder No. | 87405381 |
| AppliC.A.Tion | Loader bucket |

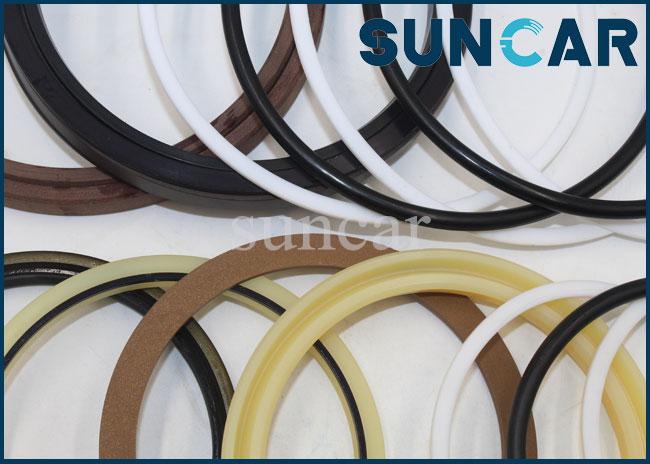

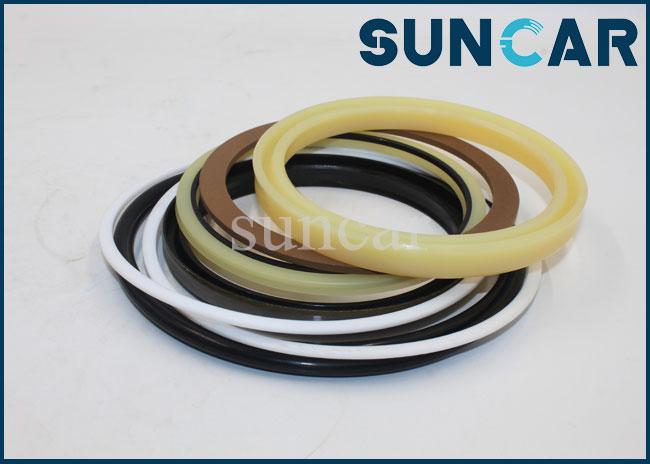

Product Show:
Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| . . | REF | [1] | INSTRUCTION |
| . . | 87405381 | [2] | CYLINDER ASSY.,Double Acting |
| 1 | 381089A1 | [1] | HYD CYL SLEEVE |
| 2 | 87625614 | [2] | BUSHING |
| 3 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 4 | 381096A1 | [1] | PACKING GLAND |
| 5 | D95145 | [1] | WIPER SEAL |
| 6 | 336039A1 | [1] | BUSHING |
| . . | 1542877C1 | [1] | SEAL KIT |
| 7 | NSS | [1] | NOT SOLD SEPARAT |
| 8 | NSS | [1] | NOT SOLD SEPARAT |
| 9 | 238-5240 | [1] | O-RING |
| 10 | 238-5243 | [1] | O-RING |
| 11 | 384244A1 | [1] | BACK-UP RING |
| 12 | 381103A1 | [1] | ROD |
| . . | 381097A1 | [1] | PLUNGER |
| 13 | 381098A1 | [1] | PISTON ROD/GLAND |
| 14 | 381099A1 | [1] | SEAL |
| 15 | 281411A1 | [1] | SEALING RING |
| 16 | 381100A1 | [1] | RING |
| 17 | 86982441 | [1] | SPECIAL BOLT,Hex |
| 18 | NSS | [1] | NOT SOLD SEPARAT |
| 19 | 219-1 | [1] | LUBE NIPPLE |
| 20 | D95145 | [2] | WIPER SEAL |
| . . | 381101A1 | [1] | SEAL KIT |
