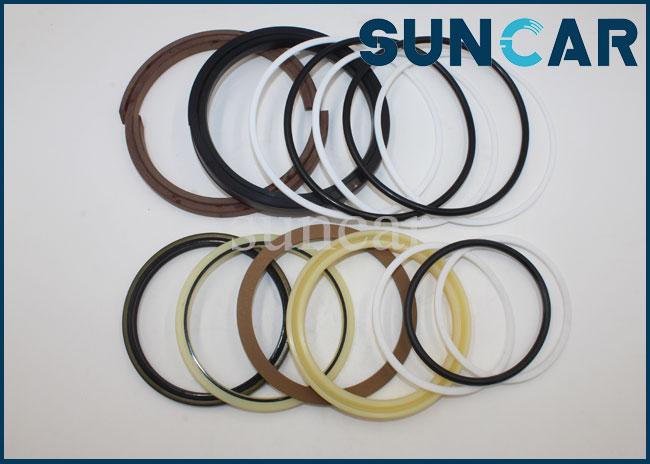

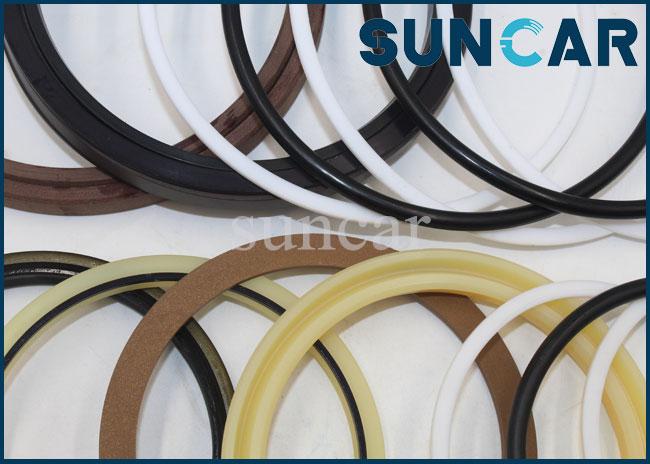

1542883C1 Tilt Cylinder Seal Repair Kit Loader 921 921C 921F Case Replacement Service Parts
1542883C1 Tilt Cylinder Seal Repair Kit Loader 921 921C 921F Case Replacement Service Parts
| Product Name | Case Tilt Cylinder Seal Repair Kit |
| Part Number | 1542883C1 |
| Model | CASE 921, 921C, 921E, 921F, 921B |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Loader tilt |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.
Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| . . | 84327736 | [1] | CYLINDER,Double Acting |
| . . | 84327732 | [1] | KIT |
| 1 | NSS | [1] | NOT SOLD SEPARAT |
| 2 | 84264085 | [2] | BUSHING |
| . . | NSS | [1] | NOT SOLD SEPARAT |
| 3 | S108245 | [1] | WIPER SEAL |
| . . | 1542883C1 | [1] | SEAL KIT |
| 4 | NSS | [1] | NOT SOLD SEPARAT |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | 1346213C1 | [1] | BUSHING |
| 7 | G110679 | [1] | RING |
| 8 | 238-5362 | [1] | O-RING |
| 9 | NSS | [1] | NOT SOLD SEPARAT |
| 10 | 84297271 | [1] | WEAR RING |
| 11 | G32176 | [2] | BACK-UP RING |
| 12 | 238-5242 | [1] | O-RING |
| 13 | S110156 | [1] | SEALING RING |
| 14 | 84294495 | [1] | SEAL |
| 15 | NSS | [1] | NOT SOLD SEPARAT |
| 16 | NSS | [1] | NOT SOLD SEPARAT |
| 17 | 84264085 | [2] | BUSHING |
| 18 | S92653 | [4] | WIPER |
| 19 | G32317 | [9] | WASHER |
| 20 | G106602 | [1] | LOCK PIN |
| 21 | 1346328C1 | [1] | CIRCLIP |
