Excavator Bucket Sealing Kit VOE14660989 14660989 EC350E EC380DHR SUNCARVO.L.VO Cylinder Service Parts
Excavator Bucket Sealing Kit VOE14660989 14660989 EC350E EC380DHR SUNCARSUNCARSUNCARVO.L.VO Cylinder Service Parts
| Product Name |
SUNCARSUNCARSUNCARVO.L.VO Bucket Cylinder Sealing Kit |
| Part Number | VOE14660989/ VOE 14660989/ 14660989 |
| Model | SUNCARSUNCARSUNCARVO.L.VO EC350E, EC380D, EC380DHR, EC380E, EC380EHR |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
1. Have certain mechanical properties, such as tensile strength, elongation, etc.;
2. Appropriate elasticity and hardness, small compression set;
3. High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
4. It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
5. Good oxygen resistance and aging resistance, durable;
6. Abrasion resistance, no corrosion to metal;
7. Easy to shape and process, low price.

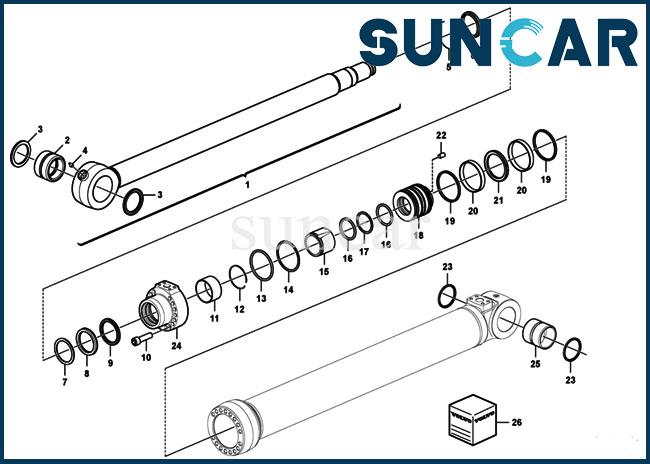

Related Parts:
| Pos. | Part No. | QTY | Parts Name |
| VOE14640433 | [1] | Bucket cylinder | |
| 1 | VOE14639397 | [1] | Rod |
| 2 | VOE14517186 | [1] | Bushing |
| 3 | VOE14560209 | [2] | Seal |
| 4 | VOE914167 | [1] | LubriC.A.Ting nipple |
| 5 | SA9556-10000 | [1] | Retaining ring |
| 6 | SA9564-21000 | [1] | Seal |
| 7 | SA9567-21000 | [1] | Back-up ring |
| 8 | SA9563-21000 | [1] | Seal |
| 9 | SA1146-08120 | [1] | Seal |
| 10 | VOE13948937 | [16] | Screw |
| 11 | SA9612-10040 | [1] | Bearing |
| 12 | VOE14884928 | [1] | Retaining ring |
| 13 | SA9566-31350 | [1] | Back-up ring |
| 14 | VOE990650 | [1] | O-ring |
| 15 | VOE14502439 | [1] | Cushion |
| 16 | VOE14880846 | [2] | Back-up ring |
| 17 | VOE990640 | [1] | O-ring |
| 18 | VOE14639400 | [1] | Piston |
| 19 | VOE14502442 | [2] | Seal |
| 20 | VOE14502441 | [2] | Ring |
| 21 | VOE14502440 | [1] | Seal |
| 22 | VOE14588457 | [1] | Set screw |
| 23 | VOE14560206 | [2] | Seal |
| 24 | VOE14502437 | [0001] | Head |
| 25 | VOE14517940 | [1] | Bushing |
| 26 | VOE14660989 | [1] | Sealing kit |
Other Available Parts:
- Boom cylinder seal kit, bucket cylinder seal kit, stick arm cylinder seal kit, track adjust seal kit, center joint seal kit, pump main seal kit, swing motor seal kit, travel motor seal kit, floating seal, oil seal, pilot valve seal kit, gear pump seal kit, controller valve seal kit, coupling.
- Main pump parts, relief valve, swing motor parts, swing device parts, travel motor parts, travel reduction parts, bearing ,
- Engine rebuild parts, piston, liner, piston ring, crankshaft, camshaft, rod connecting, engine bearing, valve, valve seat, valve guide, gasket kit, cylinder block , cylinder head, oil pump, water pump, injector, feed pump, pulley, fan.
- Solenoid, sensor, air controller, therttle motor, wiper motor, blower motor, start motor.
- Teeth, adapter, pin, bucket, bucket pin, bushing, h link, track link, cylinder assy, spring, top roller, track roller, idler, sprocket.

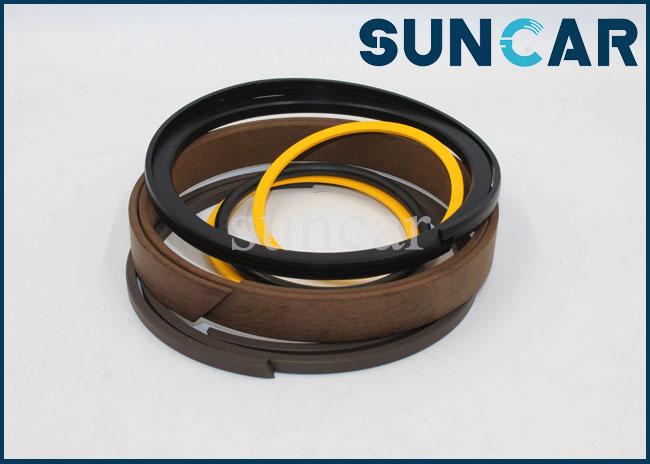

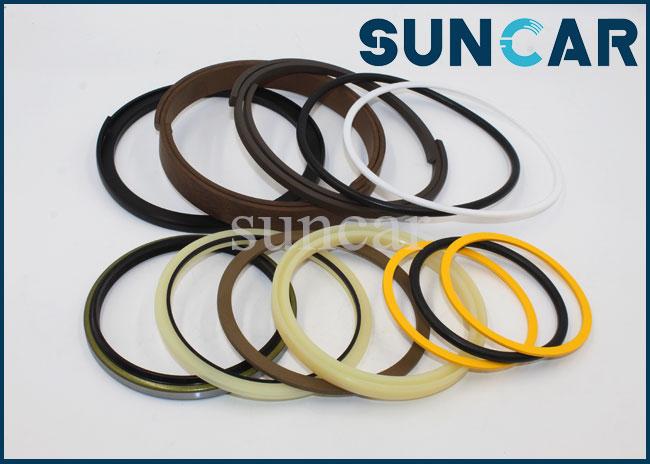

Product Show:
