7239800570 723-98-00570 Bucket Cylinder Seal Repair Kit Komatsu For PC490LC-10 PC360NLC-11 PC360LC-11
7239800570 723-98-00570 Bucket Cylinder Seal Repair Kit Komatsu For PC490LC-10 PC360NLC-11 PC360LC-11
| Products Name | 723-98-00570 Bucket Cylinder Seal Repair Kit |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type | Komatsu Excavator Replacement Parts |
| Model Number |
Komatsu PC490LC-10, PC360NLC-11, PC360LC-11, PC390LC-11, PC390HRD-11E0, PC360LC-11E0, PC360NLC-11E0, PC490HRD-11E0 |
| Payment Terms | Western Union, Paypal, TT, Transfer |
| Supply Ability | 4000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |

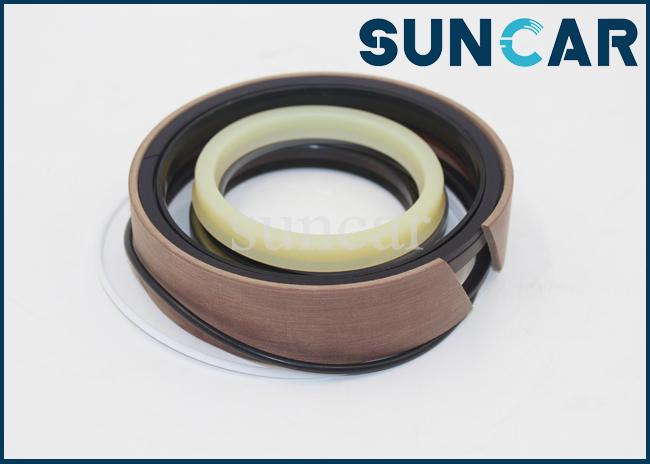

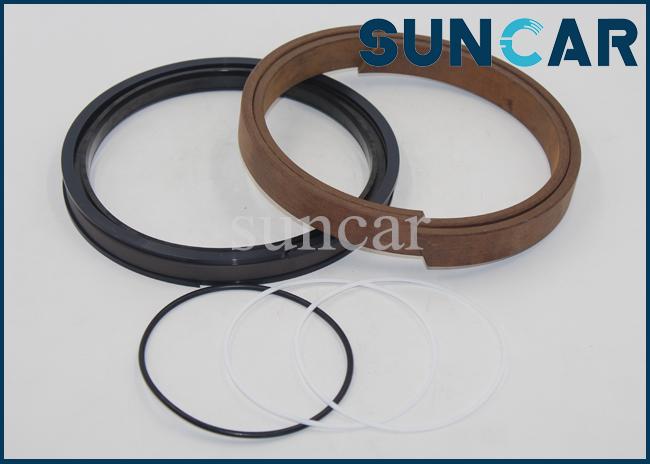

Product Show:
Related Part:
| POS. | Number | Name | Qty. |
| 707-G1-03280 | Cylinder Assembly | 1 | |
| 1 | 721-13-14200 | • Cylinder | 1 |
| 2 | 707-76-80330 | • Bushing | 2 |
| 3 | 07145-00080 | • Seal, Dust, (Kit : K06) | 2 |
| 4 | 07020-00000 | • Fitting, Grease | 1 |
| 5 | 721-58-10600 | • Rod, Piston | 1 |
| 6 | 07145-00080 | • Seal, Dust, (Kit : K06) | 2 |
| 7 | 07020-00000 | • Fitting, Grease | 1 |
| 8 | 721-27-14120 | • Head, Cylinder | 1 |
| 9 | 707-56-10740 | • Seal, Dust, (Kit : K06) | 1 |
| 10 | 07179-13114 | • Ring | 1 |
| 11 | 707-52-90781 | • Bushing | 1 |
| 12 | 707-75-10160 | • Ring, Snap | 1 |
| 13 | 707-51-10860 | • Packing, Rod, (Kit : K06) | 1 |
| 14 | 707-51-10650 | • Ring, Buffer, (Kit : K06) | 1 |
| 15 | 707-35-31310 | • Ring, Back-Up, (Kit : K06) | 1 |
| 16 | 07000-B5130 | • O-Ring, (Kit : K06) | 1 |
| 17 | 01011-81820 | • Bolt | 15 |
| 18 | 707-41-11840 | • Washer | 15 |
| 19 | 707-36-14650 | • Piston | 1 |
| 20 | 01310-01216 | • Screw | 1 |
| 21 | 707-44-14150 | • Ring, Piston, (Kit : K06) | 1 |
| 22 | 707-39-14110 | • Ring, Wear, (Kit : K06) | 2 |
| 23 | 707-44-14910 | • Ring | 2 |
| 24 | 707-35-30900 | • Ring, Back-Up, (Kit : K06) | 2 |
| 25 | 07000-B5090 | • O-Ring, (Kit : K06) | 1 |
| 26 | 707-86-01790 | Tube | 1 |
| 27 | 01010-81245 | Bolt | 4 |
| 28 | 01643-51032 | Washer | 4 |
| 29 | 07000-B3035 | O-Ring, (Kit : K06) | 1 |
| 30 | 707-88-52040 | Bracket | 1 |
| 31 | 707-88-21410 | Band | 2 |
| 32 | 07372-21240 | Bolt | 8 |
| 33 | 01643-51232 | Washer | 8 |
| 34 | 707-88-10150 | Clamp | 2 |
| 35 | 01010-81245 | Bolt | 4 |
| 36 | 01643-51232 | Washer | 4 |
| 37 | 707-88-52050 | Bracket | 1 |
| 38 | 07373-21000 | Plate | 1 |
| 39 | 07000-B3032 | O-Ring, (Kit : K06) | 1 |
| K06 | 723-98-00570 | Seal Kit, Hydraulic Cylinder |
FAQ:
Q1: Can I get the sample?
Yes, pay sample, freight collect.
Q2: When will you ship my order?
Normally, it is within 3 days after the customer pays.
Q3: How long can I receive the goods?
It depends on the mode of transportation.
Q4: How can I trace my order?
We will send the tracking number to you by e-mail or other contact details.
Q5: Quality of the products have a guarantee?
Please feel free to buy, 100% strict control to ensure product quality.
ClassifiC.A.Tion And Function Of Hydraulic Cylinder Seal Kit:
(1)Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. Within the system, there are 2 main types of hydraulic seals.
(2)Dynamic seals: Designed to seal various parts in relative motion. They can be utilized in high pressure and even when rod and hydraulic cylinder seals are in reciprocal motion between the head and the connecting rod.
(3)Static seals: Our static seal kit seal parts that are not in relative motion. These are used in various loC.A.Tions as per the construction and look of the hydraulic cylinder. The connection rod and piston is the primary area where these seals are used.
