Arm Cylinder Sealing Kit Komatsu 707-98-25260 7079825260 For PC38UU-3 Arm Cylinder Service Kit
Arm Cylinder Sealing Kit Komatsu 707-98-25260 7079825260 For PC38UU-3 Arm Cylinder Service Kit
| Product Name | 707-98-25260 Arm Cylinder Sealing Kit |
| Model Number |
Komatsu PC38UU-3 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Brand | SUNCAR/OEM |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Delivery Time | Within 3 days after payment received(public holiday excluded) |
| Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| Sample | Available |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 7000 Piece/Pieces per Month |

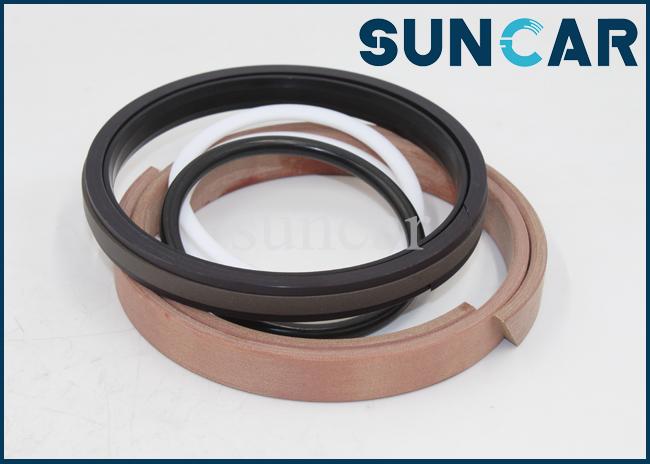

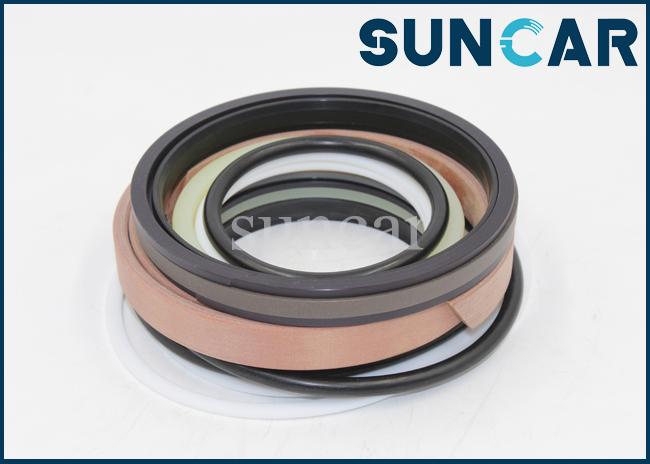

Product Show:
Related Part:
| POS. | Number | Name | Qty. |
| G-1 | 21X-63-X2212 | ARM CYLINDER ASSEMBLY | 1 |
| G-1 | 21X-63-X2211 | ARM CYLINDER ASSEMBLY | 1 |
| 21X-63-02211 | CYLINDER ASSEMBLY,ARM | 1 | |
| 1 | 21X-63-66341 | • CYLINDER | 1 |
| 2 | 707-76-50831 | • BUSHING | 2 |
| 3 | 07145-00050 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-29-80740 | • HEAD,CYLINDER | 1 |
| 5 | 07177-05030 | • BUSHING | 1 |
| 6 | 707-51-50211 | • PACKING,ROD (KIT) | 1 |
| 7 | 176-63-92240 | • SEAL,DUST (KIT) | 1 |
| 8 | 07179-12062 | • RING,SNAP | 1 |
| 9 | 07000-12075 | • O-RING (KIT) | 1 |
| 10 | 07146-02076 | • RING,BACK-UP (KIT) | 1 |
| 11 | 07000-12080 | • O-RING (KIT) | 1 |
| 12 | 21X-63-66321 | • ROD | 1 |
| 13 | 707-76-45520 | • BUSHING | 1 |
| 14 | 07145-00045 | • SEAL,DUST (KIT) | 2 |
| 15 | 07020-00675 | • FITTING,GREASE | 1 |
| 16 | 707-36-80370 | • PISTON | 1 |
| 17 | 707-44-80180 | • RING,PISTON (KIT) | 1 |
| 18 | 07156-00810 | • RING,WEAR (KIT) | 1 |
| 19 | 707-71-60050 | • PLUNGER | 1 |
| 20 | 04260-00635 | • BALL | 9 |
| 21 | 707-71-91290 | • PLUG | 1 |
| 22 | 07165-13638 | • NUT | 1 |
| 23 | 21X-63-66371 | TUBE | 1 |
| 24 | 21X-63-66382 | TUBE | 1 |
| 21X-63-66381 | TUBE | 1 | |
| 25 | 01010-81020 | BOLT | 2 |
| 26 | 01643-31032 | WASHER | 2 |
| KIT | 707-98-25260 | SERVICE KIT,ARM CYLINDER | 1 |
Precautions:
1. Before designing grooves, please read the descriptions of each series of products by yourself, and clearly distinguish whether the product uses an integral groove or a split groove; during the process of installing the seals, pay attention to avoid sharp edges, and the hole seals must be installed in the integral groove. With the help of installation tools; the designer must consider parameters such as groove dimensional accuracy, surface roughness, extrusion gap, etc. For details, please refer to the product instruction manual, diagram and size table.
2. Before installing the seal, it must be ensured that there are no impurities and cracks in the sealing groove, and operating oil should be applied to the sealing groove and the surface of the seal respectively; the seals should be installed gradually in sequence; Avoid twisting and skewing; if it is a split slot, tighten the gland last.
How To Buy:
Step 1: Tell us the spare parts you want and provide enough information to confirm the product price.
- "Product name + part number + quantity".
- Expected packaging: general packaging or customized packaging.
Step 2: Quotation and invoice
- We will send the quotation to you as soon as possible. Once confirmed, we will issue an official invoice and provide bank information.
Step 3: Payment
- Pay to our account and send us a bank statement.
- Payment method: Western Union, T/T, Paypal, Transfer.
Step 4: Delivery
- After receiving the payment, we will arrange the goods to be delivered to your designated address in China as soon as possible.
Step 5: Receipt
- You just need to wait patiently for the goods.
