707-99-69525 7079969525 Arm Cylinder Service Kit For PC400-6C PC400LC-6Z KOMATSU Heavy Duty Boom

Price Negotiable
Price: Negotiation
MOQ: Trial order acceptable
Delivery Time: 3-5 days after payment received(public holiday excluded)
Brand: SUNCAR
Product Description



707-99-69525 7079969525 Arm Cylinder Service Kit For PC400-6C PC400LC-6Z KOMATSU Heavy Duty Boom



Product Name Arm Cylinder Service Kit
Part Number 707-99-69525, 7079969525
Model KOMATSU PC400-6C, PC400LC-6Z
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Seal kits, seal, repair parts
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...

Feature High sealing performance/ wear resistance
AppliC.A.Tion Arm



Return Policy & Feedback::

  • Once you buy our item, you agree to the following return policy:

(1) We accept return, but please contact us before make the decision.

(2) We only accept exchange if the item is received incorrect or defective.

(3) Return shipping costs are the responsibility of customers.

(4) All returns must be whole and complete as shipped to the customers.

  • Our duty is to provide you high quality product and service, if you are satisfied with us, please leave us a positive feedback, it’s our power to make better.



Seal ClassifiC.A.Tion:

  • According to whether the seal is in contact with its relative moving parts, it can be divided into contact seal and non-contact seal; according to the seal and contact position, it can be divided into circumferential seal and end face seal. End face seal is also called mechanical seal. The centrifugal seal and spiral seal in the dynamic seal are sealed by powering the medium when the machine is running, so they are sometimes called dynamic seals.
  • Static seal: There are three main C.A.Tegories: gasket seal, sealant seal and direct contact seal. According to the working pressure, static sealing can be divided into medium and low pressure static sealing and high pressure static sealing. Medium and low pressure static seals usually use softer and wider gasket seals, while high-pressure static seals use harder metal gaskets with a narrow contact width.
  • Dynamic seal: It can be divided into two basic types: rotary seal and reciproC.A.Ting seal.



Related Parts:

Pos. Part No Product Name QTY
G-1 208-63-X9100 ARM CYLINDER,HD,-50C 1
G-1 208-63-X8340 ARM CYLINDER GROUP 1
  208-63-08340 ARM CYLINDER ASSEMBLY 1
1 208-63-63941 • CYLINDER 1
2 707-76-11130 • BUSHING 1
3 07145-10110 • SEAL,DUST (KIT) 2
4 208-63-69920 • ROD 1
5 707-76-11130 • BUSHING 1
6 07145-10110 • SEAL,DUST (KIT) 2
7 707-71-32910 • COLLAR 1
8 707-35-91840 • RING,BACK-UP (KIT) 2
9 07000-55175 • O-RING (KIT) 1
10 707-71-61420 • PLUNGER 1
11 707-71-60300 • PLUNGER 1
12 04260-00952 • BALL 11
13 707-71-91230 • CAP 1
14 707-27-18970 • HEAD 1
15 707-56-13520 • SEAL,DUST (KIT) 1
16 07179-14146 • RING,SNAP 1
17 707-52-91070 • BUSHING 1
18 707-51-13730 • PACKING,ROD (KIT) 1
19 707-51-13630 • RING,BUFFER (KIT) 1
20 707-35-91840 • RING,BACK-UP (KIT) 1
21 07000-55175 • O-RING (KIT) 1
22 01011-82400 • BOLT 12
23 707-88-75410 • WASHER 12
24 707-36-18530 • PISTON 1
25 01310-01225 • SCREW 1
26 707-44-18280 • RING,PISTON (KIT) 1
27 707-39-18830 • RING,WEAR (KIT) 2
28 707-44-18920 • RING 2
29 07001-05120 • RING,BACK-UP (KIT) 2
30 07000-55120 • O-RING (KIT) 1
31 208-63-63971 TUBE 1
32 207-63-63180 TUBE 1
33 01435-01055 BOLT 8
34 07000-53035 O-RING (KIT) 2
35 707-88-95810 BRACKET 1
36 707-88-95800 BAND 1
37 707-88-95831 BRACKET 1
38 707-88-95820 BAND 1
39 01010-81240 BOLT 6
40 01643-51232 WASHER 6
41 07283-23442 CLIP 3
42 01643-31032 WASHER 6
43 01599-01011 NUT 6
44 707-88-33040 CAP 2
45 07371-31049 FLANGE,SPLIT 4
46 07372-21035 BOLT 8
47 01643-51032 WASHER 8
  707-99-69525 SERVICE KIT 1

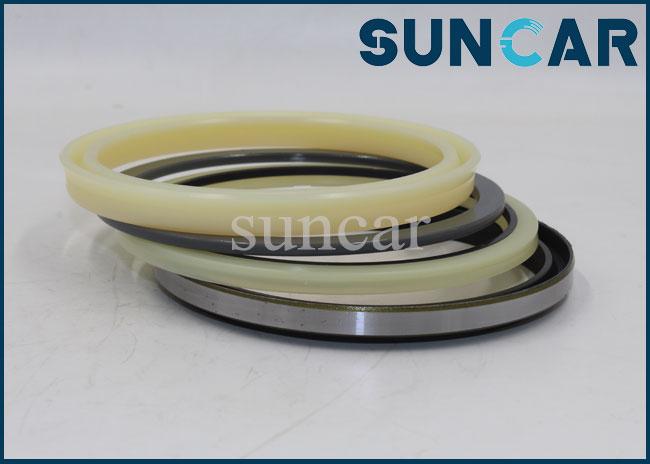

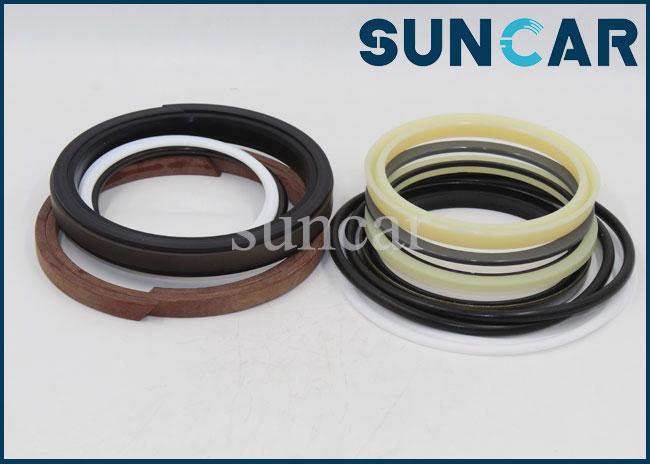

Product Show:
