Bottom Dump 707-99-47820 Sealing Kit Hydraulic Cylinder For Loader PC400-7 PC400LC-7 Komatsu Equipment
Bottom Dump 707-99-47820 Sealing Kit Hydraulic Cylinder For Loader PC400-7 PC400LC-7 Komatsu Equipment
| Product Name | Bottom Dump Cylinder Sealing Kit |
| Part Number | 707-99-47820, 7079947820 |
| Model | KOMATSU PC400-7, PC400LC-7 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Seal kits, seal, repair parts |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom Dump |
Product Advantage:
(1) Extreme wear resistance.
(2) Easier installation.
(3) Insensitive to pressure peaks.
(4) High extrusion resistance.
(5) Excellent durability and flexibility in using.
(6) Specially designed cords enhance durability and length stability.
(7) Excellent in resistance against heat,oil and wear.
(8) Low friction, free of stick slip.
(9) High abrasion resistance.
Packing And Shipping:
- Usually, cartoon packing is for goods below 30KG.
- Plywood box packing is for over 30KG.
- Packing: Neutral packing, Suncar packing, and Original packing.
- Ships within 3 working days after placing an order and receiving payment
- Shipping: By international express( DHL, UPS, TNT, FEDEX, EMS, etc.)
- By air, shipping time is about a week.
- By sea, shipping time is about 20-40 days.

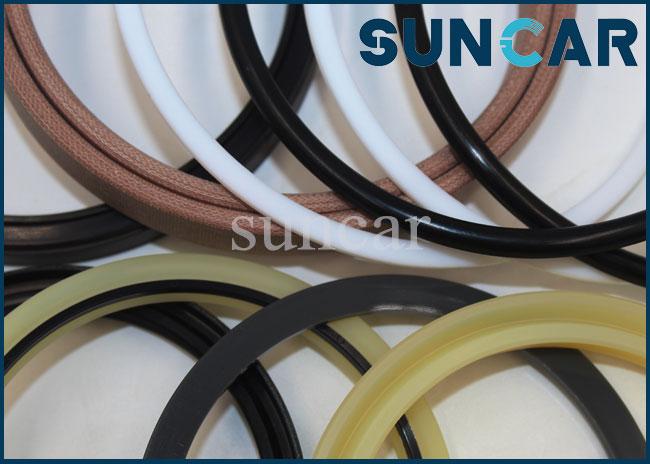

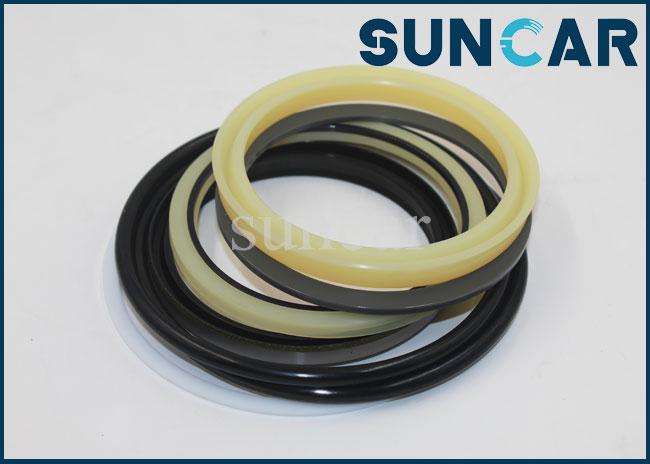

Product Show:
Related Parts:
| Pos. | Part No | Product Name | QTY |
| G-1 | 707-01-XP111 | CYLINDER GROUP,L.H. (FINAL COATING) | 1 |
| G-1 | 707-01-XP110 | CYLINDER GROUP,L.H. (FINAL COATING) | 1 |
| G-2 | 707-01-XP121 | CYLINDER GROUP,R.H. (FINAL COATING) | 1 |
| G-2 | 707-01-XP120 | CYLINDER GROUP,R.H. (FINAL COATING) | 1 |
| 707-01-0K101 | CYLINDER ASSEMBLY | 1 | |
| 707-01-0K100 | CYLINDER ASSEMBLY | 1 | |
| 1 | 707-13-13820 | • CYLINDER | 1 |
| 2 | 707-76-80010 | • BUSHING | 1 |
| 3 | 07145-10080 | • SEAL,DUST (KIT) | 2 |
| 4 | 07020-00000 | • FITTING,GREASE | 1 |
| 5 | 707-58-90E80 | • ROD,PISTON | 1 |
| 6 | 205-63-65271 | • BUSHING | 1 |
| 7 | 07145-10080 | • SEAL,DUST (KIT) | 2 |
| 8 | 707-27-13650 | • HEAD,CYLINDER | 1 |
| 9 | 707-52-90681 | • BUSHING | 1 |
| 10 | 707-51-90730 | • U-PACKING,ROD (KIT) | 1 |
| 11 | 707-51-90640 | • RING,BUFFER (KIT) | 1 |
| 12 | 707-75-90110 | • RING,SNAP | 1 |
| 13 | 707-56-90740 | • SEAL,DUST (KIT) | 1 |
| 14 | 707-56-90820 | • SEAL,DUST (KIT) | 1 |
| 14 | 707-56-90651 | • SEAL,DUST (KIT) | 1 |
| 15 | 707-88-03921 | • RING | 1 |
| 16 | 707-88-05510 | • COLLAR | 1 |
| 17 | 707-88-05520 | • PLATE | 1 |
| 18 | 07000-55120 | • O-RING (KIT) | 1 |
| 19 | 707-35-91320 | • RING,BACK-UP (KIT) | 1 |
| 20 | 01010-81695 | • BOLT | 8 |
| 21 | 01011-81600 | • BOLT | 4 |
| 22 | 01643-51645 | • WASHER | 12 |
| 23 | 707-36-13780 | • PISTON | 1 |
| 24 | 707-44-13180 | • RING,PISTON (KIT) | 1 |
| 25 | 707-39-13150 | • RING,WEAR (KIT) | 2 |
| 26 | 707-44-13911 | • RING | 2 |
| 27 | 07000-55080 | • O-RING (KIT) | 1 |
| 28 | 707-35-90940 | • RING,BACK-UP (KIT) | 2 |
| 29 | 01310-01216 | • SCREW | 1 |
| 30 | 707-86-67280 | TUBE,L.H. | 1 |
| 30 | 707-86-67290 | TUBE,R.H. | 1 |
| 31 | 208-63-94380 | TUBE,L.H. | 1 |
| 31 | 208-63-94480 | TUBE,R.H. | 1 |
| 32 | 07372-21060 | BOLT | 4 |
| 33 | 01643-51032 | WASHER | 4 |
| 34 | 07372-21045 | BOLT | 4 |
| 35 | 01643-51032 | WASHER | 4 |
| 36 | 07000-53030 | O-RING (KIT) | 2 |
| 37 | 707-88-25820 | BRACKET | 1 |
| 38 | 707-88-87280 | BRACKET | 1 |
| 39 | 707-88-87270 | BAND | 2 |
| 40 | 07372-21035 | BOLT | 4 |
| 41 | 01643-51032 | WASHER | 4 |
| 42 | 07282-12793 | CLAMP | 2 |
| 43 | 01010-81020 | BOLT | 4 |
| 44 | 01643-31032 | WASHER | 4 |
| 45 | 707-88-33030 | CAP | 2 |
| 46 | 07371-30640 | FLANGE,SPLIT | 4 |
| 47 | 07372-21035 | BOLT | 8 |
| 48 | 01643-51032 | WASHER | 8 |
| 707-99-47821 | SERVICE KIT | 2 | |
| 707-99-47820 | SERVICE KIT | 2 |
Noted:
1. Due to the variety and quantity of mechanical parts industry, the price of each of our products can not be shown very accurately. If you are interested in our products, please leave a message to us or contact us on WeChat and WhatsApp, we will give you a quotation in the first time.
2. Each product has the corresponding size and the relative model should be, so please contact us before placing orders to determine the price, quantity and style of the relevant products.All products will undergo strict inspection before shipment to ensure that the products delivered to your hands are qualified products.
