Sealing Kit 31Y1-15540 31Y115540 Seal Repair Kit For R290LC-7 R305LC-7 Hyundai Excavator Bucket Cylinder
Price:
Negotiation
MOQ:
Acceptable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description
Sealing Kit 31Y1-15540 31Y115540 Seal Repair Kit For R290LC-7 R305LC-7 Hyundai Excavator Bucket Cylinder
| Product Name | Bucket Cylinder Seal Repair Kit |
| Part Number | 31Y1-15540, 31Y115540 |
| Model | 7-SERIES CRAWLER EXCAVATOR R290LC-7, R290LC7H, R305LC-7 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |
| Rod | 95 MM |
| Bore | 140 MM |
| Cylinder No. |
31N8-60111 |
Packing And Shipping:
(1) Usually, cartoon packing is for goods below 30KG.Plywood box packing is for over 30KG.
(2) Packing: Neutral packing, Suncar packing, and Original packing.
(3) Ships within 3 working days after placing an order and receiving payment
(4) Shipping: By international express( DHL, UPS, TNT, FEDEX, EMS, etc.)
(5) By air, shipping time is about a week.
(6) By sea, shipping time is about 20-40 days.
Basic Requirements For Sealing Materials:
- The performance of the sealing material is an important factor to ensure effective sealing. The selection of the sealing material is mainly based on the working environment of the sealing element, such as the temperature, the working pressure, the working medium used, and the movement mode. The basic requirements for sealing materials are as follows:
- Have certain mechanical properties, such as tensile strength, elongation, etc.;
- Appropriate elasticity and hardness, small compression set;
- High temperature and low temperature resistance, no decomposition or softening at high temperature, and no hardening at low temperature;
- It is compatible with the working medium, without swelling, decomposition, hardening, etc.;
- Good oxygen resistance and aging resistance, durable;
- Abrasion resistance, no corrosion to metal;
- Easy to shape and process, low price.

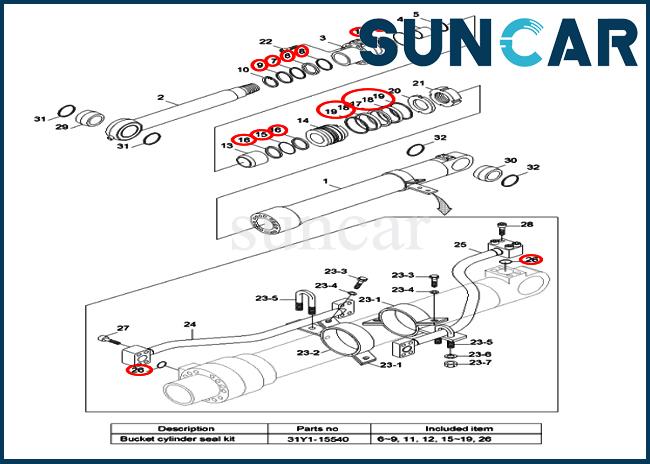

Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N8-60110 | [1] | BUCKET CYLINDER |
| *. | 31N8-60111 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-15400 | [1] | BUCKET CYLINDER SUB |
| *-1. | 31Y1-15401 | [1] | BUCKET CYLINDER SUB |
| 1 | 31Y1-15410 | [1] | TUBE ASSY |
| 2 | 31Y1-15460 | [1] | ROD ASSY |
| 3 | 31Y1-15490 | [1] | GLAND |
| 3 | 31Y1-15491 | [1] | GLAND |
| 4 | S732-095040 | [1] | BUSHING |
| 5 | Y191-102000 | [1] | RING-SNAP |
| K6. | Y220-095011 | [1] | SEAL-ROD |
| K7. | Y180-095020 | [1] | RING-BACK UP |
| K8. | Y240-095013 | [1] | RING-BUFFER |
| K9. | Y110-095011 | [1] | WIPER-DUST |
| 10 | Y190-109000 | [1] | RING-SNAP |
| K11. | S631-130004 | [1] | O-RING |
| K12. | S641-130003 | [1] | RING-BACK UP |
| 13 | 31YC-23040 | [1] | RING-CUSHION |
| 13 | 31YC-23030 | [1] | RING-CUSHION |
| 14 | 31Y1-15160 | [1] | PISTON |
| K15. | S632-085004 | [1] | O-RING |
| K16. | S642-085003 | [2] | RING-BACK UP |
| K17. | Y420-140000 | [1] | SEAL-PISTON |
| K18. | Y310-140000 | [2] | RING-WEAR |
| K19. | Y440-140000 | [2] | RING-DUST |
| 20 | 31YC-66060 | [1] | WASHER-LOCK |
| 21 | 31YC-61132 | [1] | NUT-LOCK |
| 22 | S109-180904 | [12] | BOLT-SOCKET |
| 29 | 31YC-11140 | [1] | BUSHING-PIN |
| 30 | 31YC-11150 | [1] | BUSHING-PIN |
| 31 | Y000-080200 | [2] | SEAL-DUST |
| 32 | Y000-090000 | [2] | SEAL-DUST |
| 23 | 31Y1-15500 | [2] | BAND ASSY |
| 23-1. | 31Y1-15510 | [1] | BAND SUB ASSEMBLY |
| 23-2. | 31YC-31220 | [1] | BAND |
| 23-3. | S015-120452 | [2] | BOLT-HEX |
| 23-4. | S411-120002 | [2] | WASHER-SPRING |
| 23-5. | S071-023430 | [1] | U-BOLT |
| 23-6. | S201-101002 | [2] | NUT-HEXAGON HEAD |
| 23-7. | S411-100002 | [2] | WASHER-SPRING |
| 24 | 31Y1-15520 | [1] | PIPE ASSY-R |
| 25 | 31Y1-15530 | [1] | PIPE ASSY-B |
| K26. | Y171-024004 | [2] | O-RING |
| 27 | S107-120554 | [4] | BOLT-SOCKET |
| 28 | S107-100554 | [4] | BOLT-SOCKET |
| K. | 31Y1-15540 | [1] | SEAL KIT |
