Bucket Oil Seal Kit 31Y1-15546 R290LC-7A R305LC-7 Hyundai Hydraulic Cylinder Replacement Kits Parts
Bucket Oil Seal Kit 31Y1-15546 R290LC-7A R305LC-7 Hyundai Hydraulic Cylinder Replacement Kits Parts
| Product Name | Bucket Cylinder Oil Seal Kit |
| Part Number | 31Y1-15546, 31Y115546 |
| Model | 7-SERIES CRAWLER EXCAVATOR R290LC-7A, R305LC-7 Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |

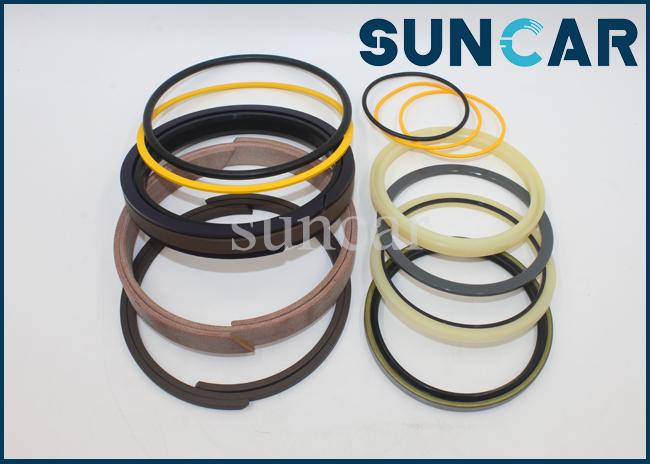

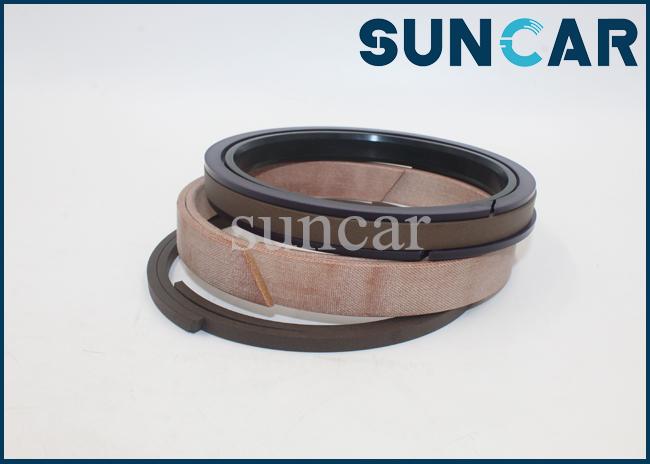

Product Show:
The Reason Why Choose Us?
1. Quality Control – SUNCAR uses raw materials which made for high quality only,same standard as OEM genuine parts.We have never compromised our quality with inferior materials. Our insistence in high quality for raw materials, mold design, production, and packing make us stand out from the other factories
2. Technical Support – Our mold design and development department is comprised of knowledgeable people. SUNCAR is equipped with the advanced CNC mold developing machines.We test all of the raw materials and study the most advanced ones.
3. Research & Development- We have a strong research and development capacities, constantly seeking new technologies and methods to achieve higher performance, competitiveness and quality.
4. Resource Integration – For brand:C.A.TERPILLAR, HIATCHI, KOMATSU, KOBELCO(NEW HOLLAND) some of SUNCARSUNCARSUNCARVO.L.VO, JCB, JOHN DEERE, CASE, DOOSAN, HYUNDAI and rock breaker(hammer breaker).
5. Sample Test –Samples are always available for checking quality and can be dispatched to you very quickly.
6. Stock –More than 5,000 items stocked and available in our inventory, both inch and metric sizes are available. One stop service and immediate delivery.
7. After Sales –6 months warranty. We provide a wide variety of support, such as servicing and maintenance support.

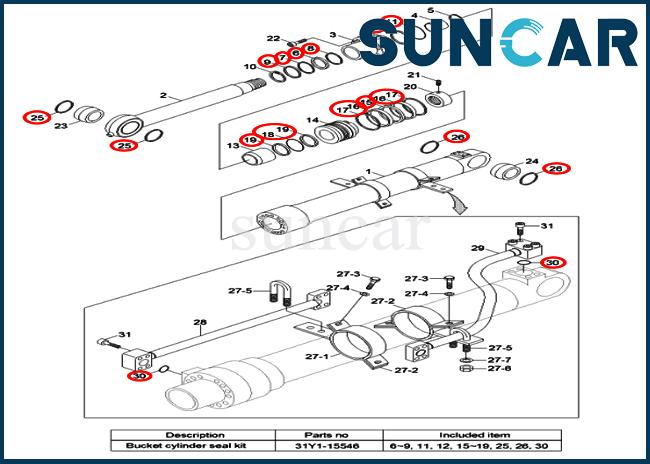

Related Parts:
| Pos. | Part No | QTY | Product Name |
| *. | 31N8-60115 | [1] | BUCKRT CYLINDER ASSY |
| *. | 31N8-60116 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-15405 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-15415 | [1] | TUBE ASSY |
| 2 | 31Y1-15465 | [1] | ROD ASSY |
| 2 | 31Y1-15466 | [1] | ROD ASSY |
| 3 | 31Y1-15495 | [1] | GLAND |
| 4 | S732-095040 | [1] | BUSHING-DD2 |
| 5 | Y191-102000 | [1] | RING-SNAP |
| K6. | Y220-095011 | [1] | SEAL-ROD |
| K7. | Y180-095020 | [1] | RING-BACK UP |
| K8. | Y240-095013 | [1] | RING-BUFFER |
| K9. | Y110-095011 | [1] | WIPER-DUST |
| 10 | Y190-109000 | [1] | RING-SNAP |
| K11. | S631-130004 | [1] | O-RING |
| K12. | 31YC-BP130 | [1] | RING-BACK UP |
| 13 | 31YC-26080 | [1] | RING-CUSHION |
| 14 | 31Y1-27170 | [1] | PISTOM |
| 14 | 31Y1-27171 | [1] | PISTON |
| K15. | Y420-140000 | [1] | SEAL-PISTON |
| K16. | Y310-140000 | [2] | RING-WEAR |
| K17. | Y440-140000 | [2] | RING-DUST |
| K18. | S632-070004 | [1] | O-RING |
| K18. | S632-075004 | [1] | O-RING |
| K19. | S642-070003 | [2] | RING-BACK UP |
| K19. | S642-075003 | [2] | RING-BACK UP |
| 20 | 31YC-64050 | [1] | NUT-LOCK |
| 20 | 31YC-64165 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| 22 | S109-180904 | [12] | BOLT-SOCKET |
| 23 | 31YC-11140 | [1] | BUSHING-PIN |
| 24 | 31YC-11150 | [1] | BUSHING-PIN |
| 25 | Y000-080200 | [2] | SEAL-DUST |
| 26 | Y000-090000 | [2] | SEAL-DUST |
| 27 | 31Y1-15505 | [2] | BAND ASSY |
| 27-1. | 31Y1-15515 | [1] | BAND SUB ASSY |
| 27-2. | 31YC-31210 | [1] | BAND |
| 27-3. | S015-120452 | [2] | BOLT-HEX |
| 27-4. | S411-120002 | [2] | WASHER-SPRING |
| 27-5. | S071-023430 | [1] | U-BOLT |
| 27-6. | S201-101002 | [2] | NUT-HEX |
| 27-7. | S411-100002 | [2] | WASHER-SPRING |
| 28 | 31Y1-15525 | [1] | PIPE ASSY-R |
| 29 | 31Y1-15535 | [1] | PIPE ASSY-B |
| K30. | Y171-024004 | [2] | O-RING |
| 31 | S107-120554 | [8] | BOLT-SOCKET |
| K. | 31Y1-15545 | [1] | SEAL KIT |
| K. | 31Y1-15546 | [1] | SEAL KIT |
Noted:
1. Due to the variety and quantity of mechanical parts industry, the price of each of our products can not be shown very accurately. If you are interested in our products, please leave a message to us or contact us on WeChat and WhatsApp, we will give you a quotation in the first time.
2. Each product has the corresponding size and the relative model should be, so please contact us before placing orders to determine the price, quantity and style of the relevant products.All products will undergo strict inspection before shipment to ensure that the products delivered to your hands are qualified products.
