707-99-72120 7079972120 Bucket Cylinder Seal Kit For PC500LC-8R PC500LC-8 Komatsu Bucket Cylinder Sealing Kit
707-99-72120 7079972120 Bucket Cylinder Seal Kit For PC500LC-8R PC500LC-8 Komatsu Bucket Cylinder Sealing Kit
| Product Name | 707-99-72120 7079972120 Bucket Cylinder Seal Kit |
| Model Number |
Komatsu PC500LC-8R PC500LC-8 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Brand | SUNCAR/OEM |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Delivery Time | Within 3 days after payment received(public holiday excluded) |
| Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| Sample | Available |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Boom Cylinder Seal Kit, Arm Cylinder Seal Kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 5000 Piece/Pieces per Month |

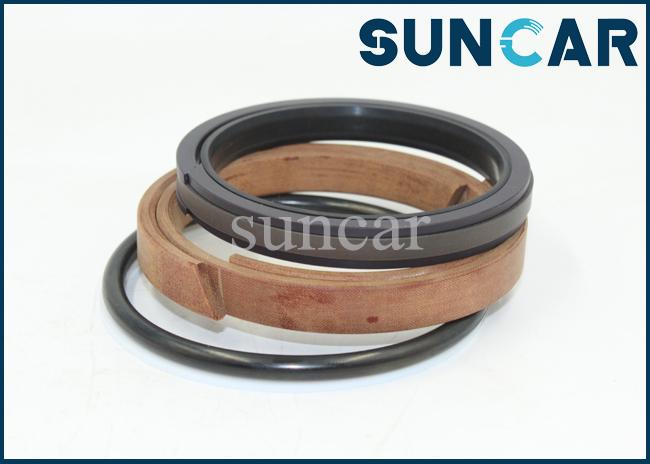

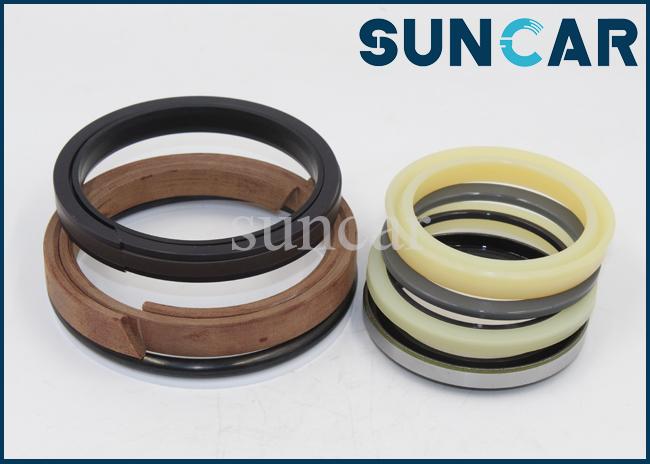

Product Show:
Related Part:
| POS. | Number | Name | Qty. |
| K05 | 707-99-72120 | Service Kit, Bucket Cylinder | |
| 07000-13035 | • O-ring | 2 | |
| 07000-15150 | • O-ring | 1 | |
| 07000-B5100 | • O-ring | 1 | |
| 07001-05100 | • Ring, Back-up | 2 | |
| 07145-00100 | • Seal, Dust | 2 | |
| 208-70-73530 | • Seal, Dust | 2 | |
| 707-35-91640 | • Ring, Back-up | 1 | |
| 707-39-16120 | • Ring, Wear | 2 | |
| 707-44-16150 | • Ring, Piston | 1 | |
| 707-51-11030 | • Packing, Rod | 1 | |
| 707-51-11650 | • Ring, Buffer | 1 | |
| 707-56-11740 | • Seal, Dust | 1 |
FAQ:
Q1: Can I get the sample?
Yes, pay sample, freight collect.
Q2: When will you ship my order?
Normally, it is within 3 days after the customer pays.
Q3: How long can I receive the goods?
It depends on the mode of transportation.
Q4: How can I trace my order?
We will send the tracking number to you by e-mail or other contact details.
Q5: Quality of the products have a guarantee?
Please feel free to buy, 100% strict control to ensure product quality.
Key points for the use of seals:
1. Select the appropriate seal material and hydraulic oil, as well as the adaptability to the working temperature and the compatibility of the oil.
2. The geometric position accuracy (concentricity) of the sliding parts relative to the seal is high, the material is good (such as hard chrome plating) and the surface roughness is fine, which can prolong the service life.
(1) For oil seals used in hydraulic pumps and motor journals, it is not only required that the roughness of the sliding surface be within Ra of 0.25m, but also that the surface should be plated with hard chrome, and the oil seal lip should be properly adjusted according to the specific situation during specific use. The radial spring force makes it moderately tight, and a mounting sleeve or a thin gasket should be used to protect the sealing ring during installation to prevent the lip from rolling and twisting, causing the spring to slip out.
(2) The inner surface of the hydraulic cylinder is usually processed by rolling, which not only improves the surface roughness, but also makes the surface hardened by cold work, which is beneficial to prolong the service life of the sealing ring. In addition, the pressure used, the length and type of the sliding surface also have a great influence on the service life. Therefore, the "regular inspection" time should be decided according to these conditions.
(3)The sealing surface is required to be well lubriC.A.Ted to prevent dirt from invading. The use of fluids that meet the specified cleanliness levels and the correct installation method are also necessary conditions.
