R250LC-9 R260LC-9S Hyundai 31Y1-32910 Bucket Seal Kit Hydraulic Cylinder Excavator Replacement Kits
R250LC-9 R260LC-9S Hyundai 31Y1-32910 Bucket Seal Kit Hydraulic Cylinder Excavator Replacement Kits
| Product Name | Bucket Cylinder Seal kit |
| Part Number | 31Y1-32910, 31Y132910 |
| Model |
9-SERIES CRAWLER EXCAVATOR R250LC-9, R260LC-9S, R260LC-9S(BRAZIL) Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |

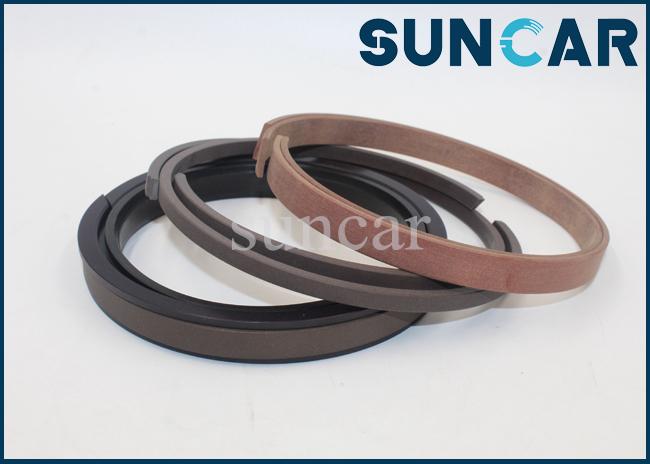

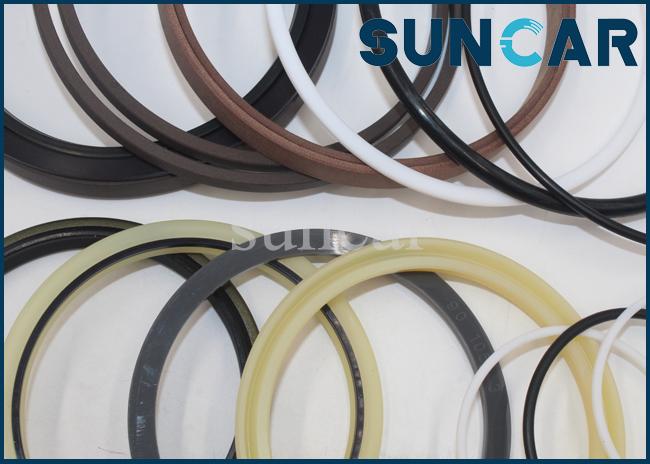

Product Show:
Packing And Shipping:
- Usually, cartoon packing is for goods below 30KG.
- Plywood box packing is for over 30KG.
- Packing: Neutral packing, Suncar packing, and Original packing.
- Ships within 3 working days after placing an order and receiving payment
- Shipping: By international express( DHL, UPS, TNT, FEDEX, EMS, etc.)
- By air, shipping time is about a week.
- By sea, shipping time is about 20-40 days.
Our Product Range:
(1) We set up the PTFE polymer materials, PU polyurethane and NBR materials seals producing line. All sealing products are widely used in different kinds of excavator and breaker hammer installation and maintenance systems, wining high reputation from the customers at home and abroad. Our factory :The following seal kits we also can supply:
* Hydraulic pump seal kit
* Control valve seal kit
* O ring kit box
* Gear pump seal kit
* Travel motor seal kit
* Swing motor seal kit
* Pilot valve seal kit/PPC seal
* Adjuster seal kit
* Center joint seal kit
* Boom cylinder seal kit
* Arm cylinder seal kit
* Bucket cylinder seal kit
* Breaker hammer seal kit

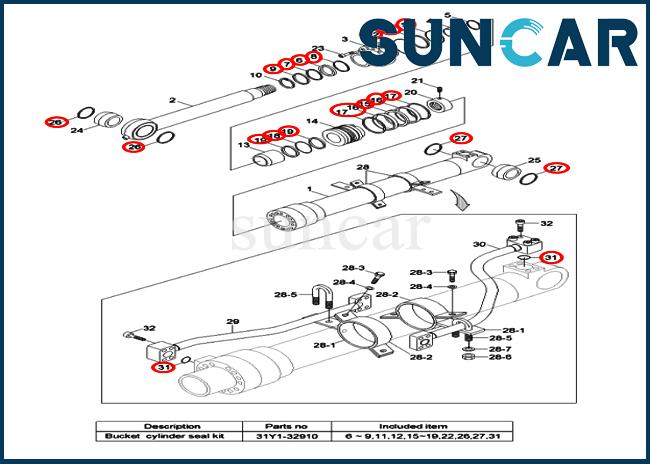

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31Q7-60110 | [1] | BUCKET CYLINDER ASSY |
| *. | 31Q7-60111 | [1] | BUCKET CYLINDER ASSY |
| *-1. | 31Y1-32680 | [1] | BUCKET CYL SUB ASSY |
| *-1. | 31Y1-32681 | [1] | BUCKET CYL SUB ASSY |
| 1 | 31Y1-32690 | [1] | TUBE ASSY |
| 2 | 31Y1-32760 | [1] | ROD ASSY |
| 2 | 31Y1-32761 | [1] | ROD ASSY |
| 3 | 31Y1-32810 | [1] | GLAND |
| 4 | S732-090030 | [1] | BUSHING-DD2 |
| 5 | Y191-097000 | [1] | RING-SNAP |
| K6. | Y220-090013 | [1] | SEAL-ROD |
| K7. | Y180-090020 | [1] | RING-BACK UP |
| K8. | Y240-090012 | [1] | RING-BUFFER |
| K9. | Y110-090011 | [1] | WIPER-DUST |
| 10 | Y190-104000 | [1] | RING-SNAP |
| K11. | S631-120004 | [1] | O-RING |
| K12. | 31YC-BP120 | [1] | RING-BACK UP |
| 13 | 31YC-26070 | [1] | RING-CUSHION |
| 14 | 31Y1-32850 | [1] | PISTON |
| 14 | 31Y1-32851 | [1] | PISTON |
| K15. | Y420-130000 | [1] | SEAL-PISTON |
| K16. | Y310-130203 | [2] | RING-WEAR |
| K17. | Y440-130002 | [2] | RING-DUST |
| K17. | Y440-130000 | [2] | RING-DUST |
| K18. | S632-065004 | [1] | O-RING |
| K19. | S642-065003 | [2] | RING-BACK UP |
| 20 | 31YC-68080 | [1] | NUT-LOCK |
| 20 | 31YC-68045 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-130004 | [1] | O-RING |
| 23 | S109-180854 | [12] | BOLT-SOCKET |
| 24 | 61Q6-05580 | [1] | BUSHING-PIN |
| 25 | 61Q6-97410 | [1] | BUSHING-PIN |
| K26. | Y020-080000 | [2] | SEAL-DUST,DLI,KPU |
| K27. | Y020-090100 | [2] | SEAL-DUST,DLI,KPU |
| 28 | 31Y1-32870 | [2] | BAND ASSY |
| 28-1. | 31Y1-32880 | [1] | BAND SUB ASSY |
| 28-2. | 31YC-31520 | [1] | BAND |
| 28-3. | S011-100352 | [2] | BOLT-HEX |
| 28-4. | S411-100002 | [2] | WASHER-SPRING |
| 28-5. | S070-053442 | [1] | U-BOLT |
| 28-6. | S205-101002 | [2] | NUT-HEX |
| 28-7. | S411-100002 | [2] | WASHER-SPRING |
| 29 | 31Y1-30950 | [1] | PIPE ASSY-R |
| 30 | 31Y1-32900 | [1] | PIPE ASSY-B |
| K31. | Y171-024004 | [2] | O-RING |
| 32 | S107-120554 | [8] | BOLT-SOCKET |
| K. | 31Y1-32910 | [1] | SEAL KIT |
