Excavator Service Kit 31Y1-33420 Boom Cylinder Seal Repair Kit Fits Hyundai R320LC-9 R330LC-9S
Excavator Service Kit 31Y1-33420 Boom Cylinder Seal Repair Kit Fits Hyundai R320LC-9 R330LC-9S
| Product Name | Boom Cylinder Seal Repair Kit |
| Part Number | 31Y1-33420, 31Y133420 |
| Model |
9-SERIES CRAWLER EXCAVATOR R320LC-9, R330LC-9A, R330LC-9S, R330LC-9SH; F-SERIES CRAWLER EXCAVATOR HX330L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |

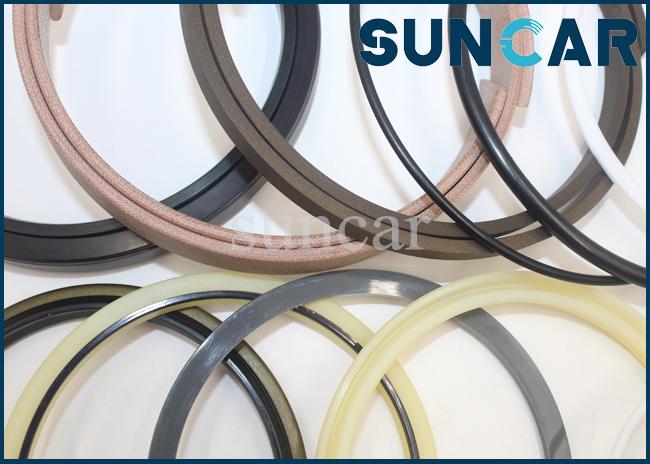

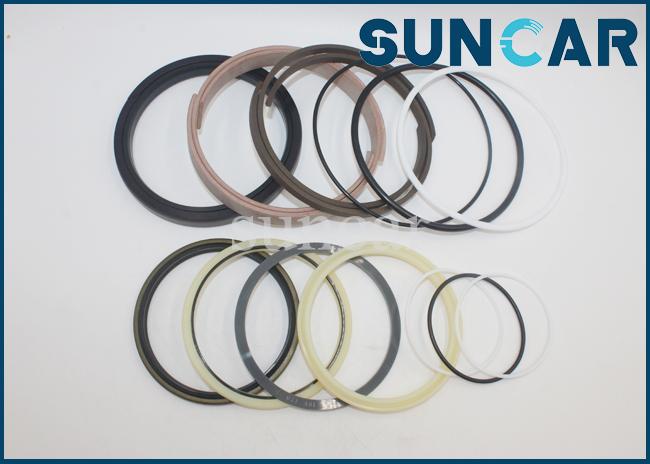

Product Show:
Terms Of Service:
1. You may email us if you have a question or would like to submit a comment.
2. Generally, email will be responded to within 24 hours; except on every Sunday and holidays. We will reply as soon as we back in office.
3. Though we pride ourselves on fast order processing and shipping, sometimes delays may occur. Please be patient, and keep in touch with us via email.
4. Should you be dissatisfied with our service for any reason, please contact us.
5. We have important business in the overseas market due to our high quality produtc and reasonable prices.
6. Also, we can supply all kinds of excavator spare parts according to customers’ requirements! All the picture is just for your reference.
7. We always promise to offer excellent products as well as satisfactory service to our clients all over the world.
8. If you have any problems about details please contact us, we can supply different oil seal and other spare parts with different models as you like.

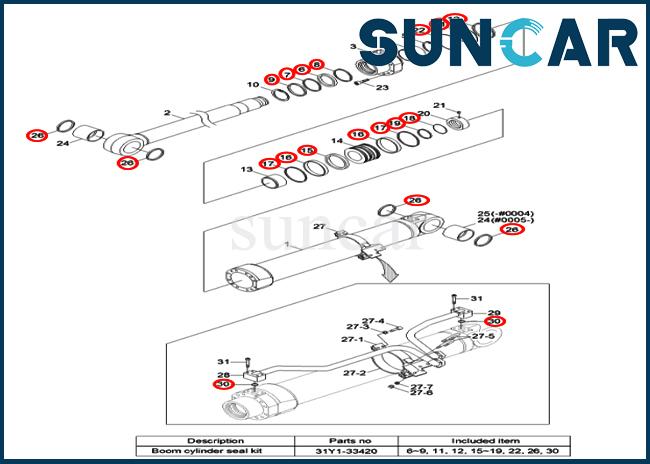

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 31K9-50110 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31Q9-50110GG | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31K9-50120 | [1] | BOOM CYLINDER ASSY-RH |
| *. | 31Q9-50120GG | [1] | BOOM CYLINDER ASSY-RH |
| *-1. | 31Y1-33170 | [1] | BOOM CYLINDER SUB |
| 1 | 31Y1-33180 | [1] | TUBE ASSY |
| 2 | 31Y1-33240 | [1] | ROD ASSY |
| 3 | 31Y1-33270 | [1] | GLAND |
| 4 | S732-105040 | [1] | BUSHING-DD2 |
| 5 | Y191-112000 | [1] | RING-SNAP |
| K6. | Y220-105013 | [1] | SEAL-ROD |
| K7. | Y180-105120 | [1] | RING-BACK UP |
| K8. | Y240-105012 | [1] | RING-BUFFER |
| K9. | Y110-105011 | [1] | WIPER-DUST |
| 10 | Y190-121000 | [1] | RING-SNAP |
| K11. | S631-140004 | [1] | O-RING |
| K12. | 31YC-BP140 | [1] | RING-BACK UP |
| 13 | 31YC-26090 | [1] | RING-CUSHION |
| 14 | 31Y1-33310 | [1] | PISTON |
| K15. | Y420-150000 | [1] | SEAL-PISTON |
| K16. | Y310-150003 | [2] | RING-WEAR |
| K17. | Y440-150202 | [2] | RING-DUST |
| K18. | S632-080004 | [1] | O-RING |
| K19. | S642-080003 | [2] | RING-BACK UP |
| 20 | 31YC-68090 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | S632-145004 | [1] | O-RING |
| 23 | S109-200904 | [12] | BOLT-SOCKET |
| 24 | 61KH-73410 | [2] | BUSHING-PIN |
| 25 | 61QH-96410 | [1] | BUSHING |
| 26 | Y020-100100 | [4] | SEAL-DUST,DLI,KPU |
| 27 | 31Y1-33330 | [1] | BAND ASSY-LH |
| 27 | 31Y1-33341 | [1] | BAND ASSY-RH |
| 27-1. | 31Y1-33350 | [1] | BAND SUB ASSY-LH |
| 27-1. | 31Y1-33360 | [1] | BAND SUB ASSY-RH |
| 27-2. | 31Y1-33370 | [1] | BAND SUB ASSY |
| 27-3. | S411-120002 | [4] | WASHER-SPRING |
| 27-4. | S015-120452 | [4] | BOLT-HEX |
| 27-5. | S070-053442 | [2] | U-BOLT |
| 27-6. | S205-101002 | [4] | NUT-HEX |
| 27-7. | S411-100002 | [4] | WASHER-SPRINIG |
| 28 | 31Y1-33380 | [1] | PIPE ASSY-R,LH |
| 28 | 31Y1-33391 | [1] | PIPE ASSY-R,RH |
| 29 | 31Y1-33400 | [1] | PIPE ASSY-B,LH |
| 29 | 31Y1-33411 | [1] | PIPE ASSY-B,RH |
| K30. | Y171-024004 | [2] | O-RING |
| 31 | S107-120556 | [8] | BOLT-SOCKET |
| K. | 31Y1-33420 | [1] | SEAL KIT |
| 31-7. | S411-100002 | [2] | WASHER-SPRINIG |
| 32 | 31Y1-33160 | [1] | PIPE ASSY-R |
| 32 | 31Y1-33161 | [1] | PIPE ASSY-R |
| K33. | Y171-024004 | [1] | O-RING |
| 34 | S107-100554 | [4] | BOLT-SOCKET |
| 34 | S107-100556 | [4] | BOLT-SOCKET |
| K. | 31Y1-33110 | [1] | SEAL KIT |
