R480LC-9 R520LC-9 Excavator Boom Seal Kit 31Y1-35590 31Y135590 Hyundai Cylinder Service Kit Parts
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

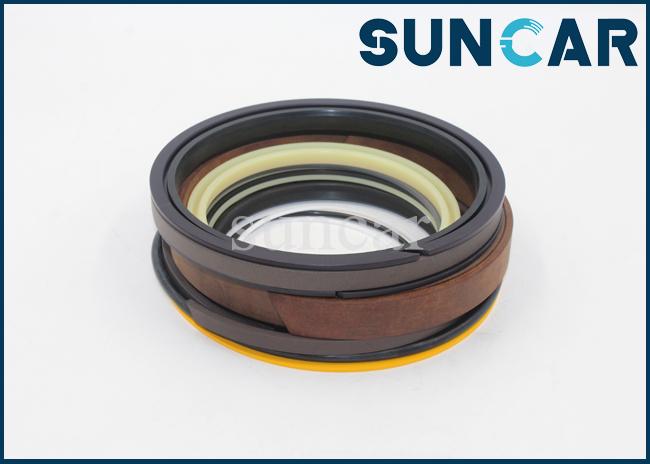

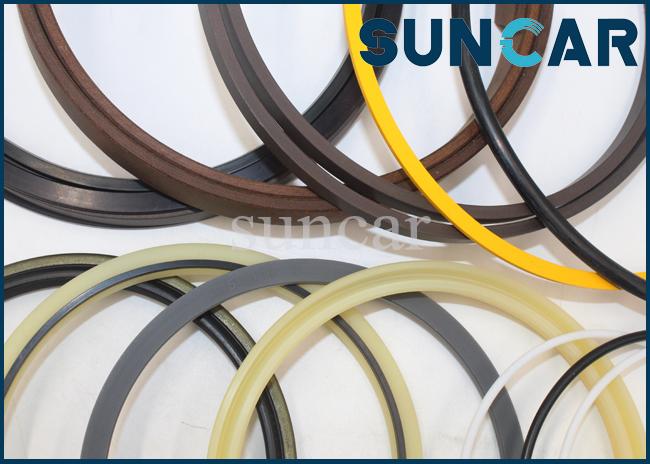

R480LC-9 R520LC-9 Excavator Boom Seal Kit 31Y1-35590 31Y135590 Hyundai Cylinder Service Kit Parts
| Product Name | Boom Cylinder Service Kit |
| Part Number | 31Y1-35590, 31Y135590 |
| Model |
9-SERIES CRAWLER EXCAVATOR R480LC-9MH, R480LC-9, R480LC-9A, R480LC-9S, R520LC-9, R520LC-9A, R520LC-9S; F-SERIES CRAWLER EXCAVATOR HX480L, HX520L Hyundai |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic cylinder seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Boom |
Related Parts:

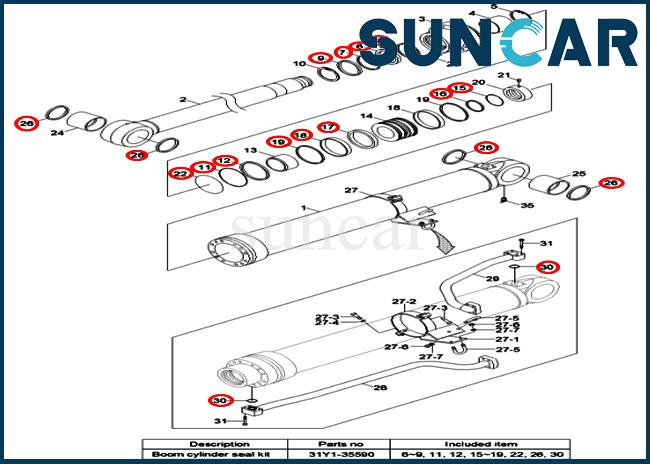

| Pos. | Part No | Qty | Parts name |
| *. | 31QB-50110 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31QB-50111 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31QB-50112 | [1] | BOOM CYLINDER ASSY-LH |
| *. | 31QB-50120 | [1] | BOOM CYLINDER ASSY-RH |
| *. | 31QB-50121 | [1] | BOOM CYLINDER ASSY-RH |
| *. | 31QB-50122 | [1] | BOOM CYLINDER ASSY-RH |
| *-1. | 31Y1-35460 | [1] | BOOM CYL SUB ASSY |
| *-1. | 31Y1-44580 | [1] | BOOM CYL SUB ASSY |
| 1 | 31Y1-35470 | [1] | TUBE ASSY |
| 1 | 31Y1-35471 | [1] | TUBE ASSY |
| 2 | 31Y1-35530 | [1] | ROD ASSY |
| 2 | 31Y1-35531 | [1] | ROD ASSY |
| 3 | 31Y1-35560 | [1] | GLAND |
| 4 | S732-115045 | [1] | BUSHING-DD2 |
| 5 | Y191-123000 | [1] | RING-SNAP |
| K6. | Y220-115113 | [1] | SEAL-ROD |
| K7. | Y180-115020 | [1] | RING-BACK UP |
| K8. | Y240-115012 | [1] | RING-BUFFER |
| K9. | Y110-115011 | [1] | WIPER-DUST |
| 10 | Y190-131000 | [1] | RING-SNAP |
| K11. | S632-160004 | [1] | O-RING |
| K12. | S642-161003 | [1] | RING-BACK UP |
| 13 | 31YC-28120 | [1] | RING-CUSHION |
| 14 | 31Y1-35580 | [1] | PISTON |
| 14 | 31Y1-35585 | [1] | PISTON |
| K15. | S632-090004 | [1] | O-RING |
| K16. | S642-090003 | [2] | RING-BACK UP |
| K17. | Y420-170000 | [1] | SEAL-PISTON |
| K18. | Y310-170200 | [2] | RING-WEAR |
| K19. | Y440-170102 | [2] | RING-DUST |
| K19. | Y440-170100 | [2] | RING-DUST |
| 20 | 31YC-68120 | [1] | NUT-LOCK |
| 21 | S114-100164 | [1] | SCREW-SET |
| K22. | 31YC-99H90 | [1] | O-RING |
| 23 | S109-220954 | [12] | BOLT-SOCKET |
| 24 | 61Q6-97920 | [1] | BUSH-PIN |
| 24 | 61QH-73810 | [1] | BUSHING-PIN |
| 25 | 61Q6-97930 | [1] | BUSH-PIN |
| 25 | 61QH-96610 | [1] | BUSHING-PIN |
| K26. | Y020-120000 | [4] | SEAL-DUST,DLI,KPU |
| 27 | 31Y1-26500 | [1] | BAND ASSY-LH |
| 27 | 31Y1-26501 | [1] | BAND ASSY-LH |
| 27 | 31Y1-26510 | [1] | BAND ASSY-RH |
| 27 | 31Y1-26511 | [1] | BAND ASSY-RH |
| 27-1. | 31Y1-26520 | [1] | BAND SUB ASSY-LH |
| 27-1. | 31Y1-26530 | [1] | BAND SUB ASSY-RH |
| 27-2. | 31YC-32190 | [1] | BAND |
| 27-3. | S015-120452 | [4] | BOLT-HEX |
| 27-4. | S411-120002 | [4] | WASHER-SPRING |
| 27-5. | S071-024330 | [2] | U-BOLT |
| 27-6. | S201-101002 | [4] | NUT-HEX |
| 27-7. | S411-100002 | [4] | WASHER-SPRING |
| 28 | 31Y1-35600 | [1] | PIPE ASSY-R,LH |
| 28 | 31Y1-35601 | [1] | PIPE ASSY-R,LH |
| 28 | 31Y1-35610 | [1] | PIPE ASSY-R,RH |
| 28 | 31Y1-35611 | [1] | PIPE ASSY-R,RH |
| 29 | 31Y1-35860 | [1] | PIPE ASSY-B,LH |
| 29 | 31Y1-35861 | [1] | PIPE ASSY-B,LH |
| 29 | 31Y1-35870 | [1] | PIPE ASSY-B,RH |
| 29 | 31Y1-35871 | [1] | PIPE ASSY-B,RH |
| K30. | Y171-024004 | [2] | O-RING |
| 31 | S107-120604 | [8] | BOLT-SOCKET |
| 35 | S652-810002 | [1] | NIPPLE-GREASE |
| K. | 31Y1-35590 | [1] | SEAL KIT |
