Boom Cylinder Repair Kit 7079936630 707-99-36630 Komatsu PC60-7 PC60-7S Boom Cylinder Sealing Kit
Boom Cylinder Repair Kit 7079936630 707-99-36630 Komatsu PC60-7 PC60-7S Boom Cylinder Sealing Kit
| Product Name | 7079936630 707-99-36630 Boom Cylinder Repair Kit |
| Model Number |
Komatsu PC60-7, PC60-7S, PC60-7E, PC70-7, PC70-7E |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ etc. |
| Brand | SUNCAR/OEM |
| MOQ | Negotiation |
| Packing Detail | Inner-Plastic Bag,Outer -Standard Carton Box.(Or at your request) |
| Delivery Time | Within 3 days after payment received(public holiday excluded) |
| Availability | In Stock |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
| Sample | Available |
| Condition | 100% Brand New |
| After-sales Service | Online support |
| Related parts | Arm Cylinder Seal Kit, Bucket Cylinder Seal kit, Hydraulic Breaker Seal Kit, Pump Seal Kit |
| Supply Ability | 5000 Piece/Pieces per Month |

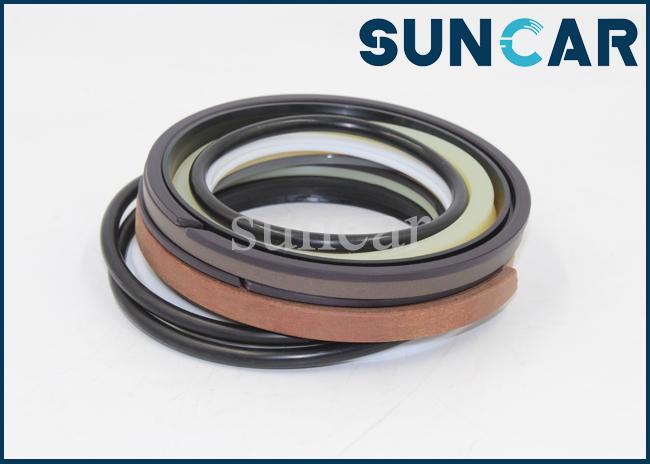

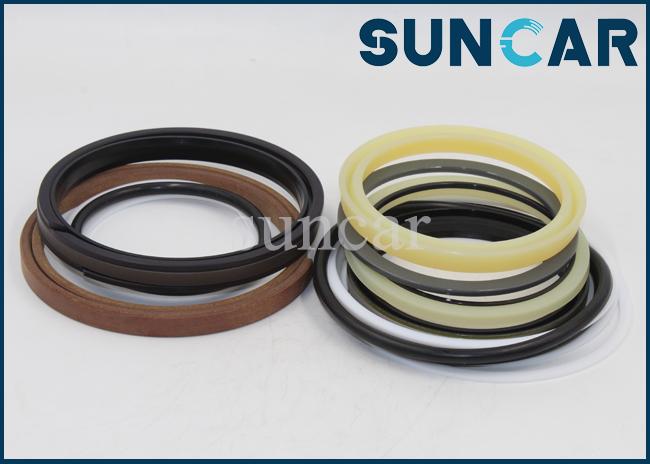

Product Show:
Related Part:
| POS. | Number | Name | Qty. |
| G1 | 201-63-X2302 | CYLINDER GROUP,BOOM | 1 |
| 201-63-02302 | CYLINDER ASSEMBLY ,BOOM | 1 | |
| 1 | 201-63-54742 | • CYLINDER,BOOM | 1 |
| 2 | 707-76-65250 | • BUSHING | 1 |
| 3 | 07145-00065 | • SEAL,DUST (KIT) | 2 |
| 4 | 707-29-11800 | • HEAD,CYLINDER | 1 |
| 5 | 707-52-90400 | • BUSHING | 1 |
| 6 | 707-51-65630 | • RING,BUFFER (KIT) | 1 |
| 7 | 707-51-65030 | • PACKING,ROD (KIT) | 1 |
| 8 | 144-63-92170 | • SEAL,DUST (KIT) | 1 |
| 9 | 07179-12079 | • RING,SNAP | 1 |
| 10 | 07000-12110 | • O-RING (KIT) | 1 |
| 11 | 707-35-91610 | • RING,BACK-UP (KIT) | 1 |
| 12 | 07000-02115 | • O-RING (KIT) | 1 |
| 13 | 707-71-33511 | • COLLAR | 1 |
| 14 | 07000-12110 | • O-RING (KIT) | 1 |
| 15 | 707-35-91610 | • RING,BACK-UP (KIT) | 2 |
| 16 | 201-63-54721 | • ROD,PISTON | 1 |
| 17 | 707-76-60180 | • BUSHING | 1 |
| 18 | 07145-00060 | • SEAL,DUST (KIT) | 2 |
| 19 | 707-71-60600 | • PLUNGER | 1 |
| 20 | 707-41-10190 | • WASHER | 1 |
| 21 | 707-36-11600 | • PISTON | 1 |
| 22 | 707-44-11280 | • RING,PISTON (KIT) | 1 |
| 23 | 707-39-11510 | • RING,WEAR (KIT) | 2 |
| 24 | 07165-14547 | • NUT | 1 |
| 25 | 201-63-54771 | TUBE | 1 |
| 26 | 201-63-54781 | TUBE | 1 |
| 27 | 01010-51020 | BOLT | 2 |
| 28 | 01643-31032 | WASHER | 2 |
| K | 707-99-36630 | SERVICE KIT,BOOM CYLINDER | 1 |
Precautions:
1. Before designing grooves, please read the descriptions of each series of products by yourself, and clearly distinguish whether the product uses an integral groove or a split groove; during the process of installing the seals, pay attention to avoid sharp edges, and the hole seals must be installed in the integral groove. With the help of installation tools; the designer must consider parameters such as groove dimensional accuracy, surface roughness, extrusion gap, etc. For details, please refer to the product instruction manual, diagram and size table.
2. Before installing the seal, it must be ensured that there are no impurities and cracks in the sealing groove, and operating oil should be applied to the sealing groove and the surface of the seal respectively; the seals should be installed gradually in sequence; Avoid twisting and skewing; if it is a split slot, tighten the gland last.
