Bucket Sealing Kit 2440-9241KT 24409241KT SOLAR 300LC-V SOLAR 450LC-V Doosan Cylinder Service Kit
Price:
Negotiation
MOQ:
Trial order acceptable
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

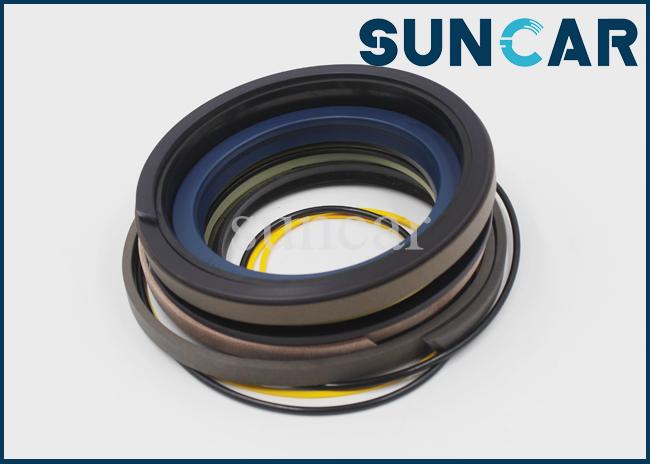

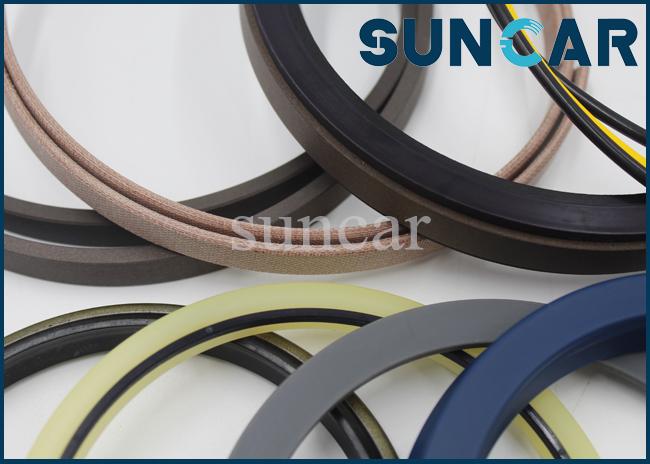

Bucket Sealing Kit 2440-9241KT 24409241KT SOLAR 300LC-V SOLAR 450LC-V Doosan Cylinder Service Kit
| Product Name | Bucket Cylinder Service Kit |
| Part Number | 2440-9241KT, 24409241KT |
| Model |
DOOSAN SOLAR 290LC-V, SOLAR 290LL, SOLAR 300LC-V, SOLAR 450LC-V, SOLAR 470LC-V, SOLAR 500LC-V |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic seal kit, excavator service kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance/ wear resistance |
| AppliC.A.Tion | Bucket |

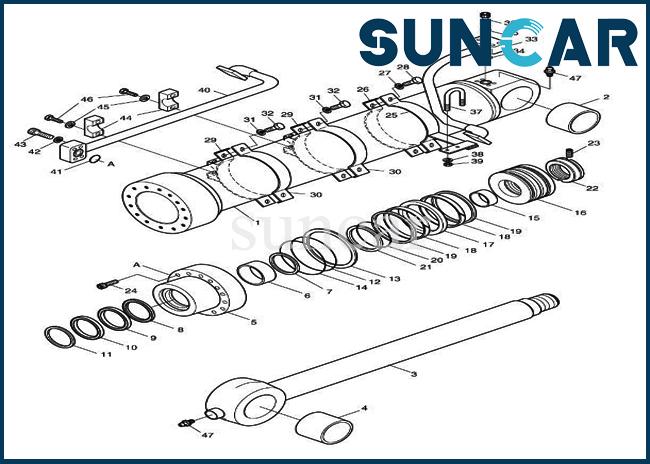

Related Parts:
| Pos. | Part No | Qty | Parts name |
| *. | 2440-9241KT | [1] | SEAL KIT;BUCKET CYL. |
| -. | 2440-9241E | [1] | BUCKET CYLINDER |
| -. | 2440-9241G | [1] | BUCKET CYLINDER |
| 1 | 53U313-3 | [1] | TUBE ASSEMBLY |
| 10 | E6020300 | [1] | WIPER;DUST |
| 11 | 00M315-0 | [1] | RING;RETAINING |
| 12 | E6311741 | [1] | O-RING |
| 13 | 53B316-0 | [1] | RING;BACK UP |
| 14 | E6490059 | [1] | O-RING |
| 15 | 00C306-0 | [1] | RING;CUSHION |
| 15 | 00C365-0 | [1] | RING;CUSHION |
| 16 | 53U370-1 | [1] | PISTON |
| 17 | E5130320 | [1] | SEAL;SLIPPER |
| 18 | 00Z109-0 | [2] | RING;WEAR |
| 19 | 00R730-0 | [2] | RING;SLYD |
| 2 | 00B123-0 | [1] | BUSH |
| 20 | E6311341 | [1] | O-RING |
| 21 | 53U252-0 | [1] | RING;BACK UP |
| 22 | 53U374-1 | [1] | NUT;PISTON |
| 23 | E1330544 | [1] | SCREW;SET |
| 24 | E0502149 | [14] | BOLT;SOCKET |
| 25 | 53U509-1 | [1] | PIPE BAND ASSEMBLY-H |
| 26 | 00P374-1 | [1] | BAND;PIPE |
| 27 | E3110112 | [2] | WASHER;SPRING |
| 28 | E0020963 | [2] | BOLT;HEX. |
| 29 | 53U510-1 | [2] | PIPE BAND ASSEMBLY-R |
| 3 | 53U367-3 | [1] | ROD ASSEMBLY |
| 3 | 53U367-4 | [1] | ROD ASSEMBLY |
| 30 | 00P374-1 | [2] | BAND;PIPE |
| 31 | E3110112 | [4] | WASHER;SPRING |
| 32 | E0020963 | [4] | BOLT;HEX. |
| 33 | 53U319-1 | [1] | PIPE ASSEMBLY-H |
| 34 | E6300761 | [1] | O-RING |
| 35 | E3110112 | [4] | WASHER;SPRING |
| 36 | E0501546 | [4] | BOLT;SOCKET |
| 37 | 03A534-0 | [1] | U-BOLT |
| 38 | E3110102 | [2] | WASHER;SPRING |
| 39 | E2022033 | [2] | NUT;HEX |
| 4 | 00B123-0 | [1] | BUSH |
| 40 | 53U373-1 | [1] | PIPE ASSEMBLY-R |
| 41 | E6300761 | [1] | O-RING |
| 42 | E3110112 | [4] | WASHER;SPRING |
| 43 | E0501546 | [4] | BOLT;SOCKET |
| 44 | 00C270-0 | [2] | CLAMP;PIPE |
| 45 | E3110102 | [4] | WASHER;SPRING |
| 46 | E0020733 | [4] | BOLT;HEX |
| 47 | E8841022 | [2] | NIPPLE;GREASE |
| 5 | 53U372-1 | [1] | ROD COVER |
| 6 | E8412281 | [1] | BUSH;DD |
| 7 | 00M313-0 | [1] | RING;RETAINING |
| 8 | E5500300 | [1] | SEAL;BUFFER |
| 9 | E5303200 | [1] | U-PACKING |
Product Show:
