100T/H Water Disinfection Equipment , UV Disinfection System For Wastewater Treatment

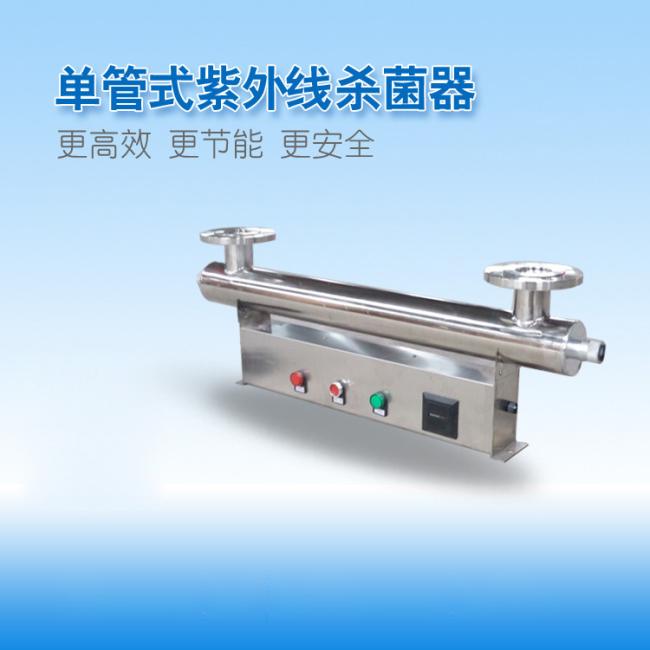

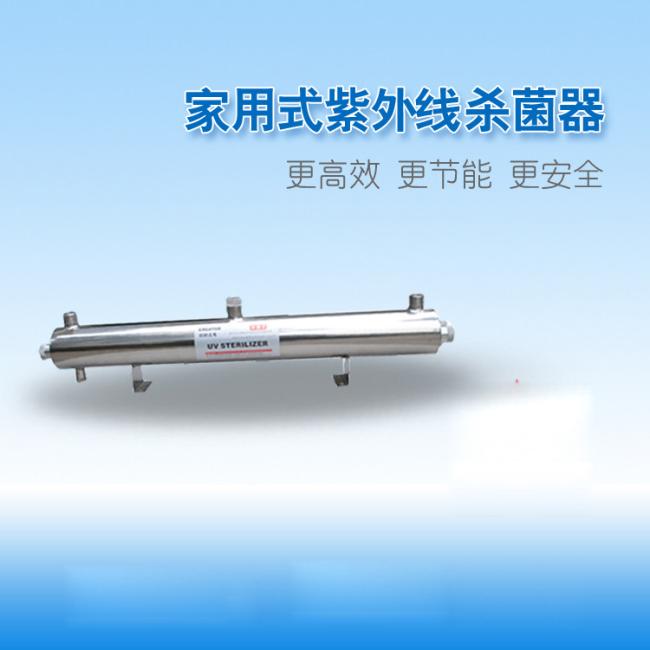

100 T/H Automatic Self Cleaning Ultraviolet Sterilizer for Water Disinfection
Ultra-Violet (UV) Systems can provide a wide selection of low pressure and medium pressure UV Systems
Flow rates from 1 m3/h to 3000 m3/h as standard
Inline Medium Pressure UV systems
Inline medium pressure UV systems with standard manual wipers
UV monitoring & PLC control
Optional Automatic cleaning systems
Optional Chemical cleaning systems
Stainless Steel 304, 316L with special anti-corrosion coating
Custom-designed UV systems
Maximum Concentration Levels (Very Important)
| Iron | ≤0.3ppm(0.3mg/L) |
| Hardness | ≤7gpg(120mg/L) |
| Turbidity | ≤1NTU |
| Manganese | ≤0.05ppm(0.05mg/L) |
| Tannins | ≤0.1ppm(0.3mg/L) |
| UV Transmittance | ≥750‰ |
Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.
UV wavelength (nm)
|
DOSAGE is the product of intensity & time dosage=intensity*time=micro watt/cm2*time=microwatt-seconds per square centimeter (μW-s/cm2) Note:1000μW-s/cm2=1mj/cm2(milli-joule/cm2) |
As a general guideline, the following are some typical UV transmission rates (UVT)
| City water supplies | 850-980‰ |
| De-ionized or Reverse Osmosis water | 950-980‰ |
| Surface waters(lakes, rivers, etc) | 700-900‰ |
| Ground water(wells) | 900-950‰ |
| Other liquids |
10-990‰ |
Industrial & municipal wastewater.
UPW, process water, electronic
Pharmaceutical industries
Power industries
Biotechnology, Biological fluids sterilisation
Water reclaim/reuse/recycling.
Mineral water and beverage industries, swimming pools, cooling water systems
Mobile home parks
Camp grounds, Hunting lodges
Ski resorts, hotels, houses
Hospitals, schools, nursing homes
Community centres, sports clubs
Offices, cottages, farms
Public buildings
Mobile units, boats
