5mm RoHS Air Cooled Evaporator
Price:
60~1000USD/Unit
MOQ:
10 pcs
Delivery Time:
15~25 days
Brand:
Shenglin
Product Description
Fin Evaporator Coil For Cold Dryer
Fin Pattern:
| Fin Pattern | Al Tube O.D.(mm) | Row Space(mm) | Hole Space(mm) | Common Al tube thickness(mm) | Fin Space(mm) |
| A | 7 | 12.7 | 21 | 0.5~0.71 | 1.3~2.5 |
| B | 7.94 | 17.05 | 20.05 | 0.5~0.71 | 1.8~3.0 |
| C | 7.94 | 15.88 | 25.4 | 0.5~0.71 | 1.8~3.0 |
| D | 9.52 | 15.88 | 25.4 | 0.5~0.71 | 1.6-2.6 |
| E | 9.52 | 12.7 | 25.4 | 0.5~0.71 | 1.6-2.5 |
| F | 9.52 | 21.65 | 25 | 0.5~0.71 | 1.6~5 |
| G | 12.75 | 27.5 | 31.75 | 0.7-1.2 | 2.5~5 |
| H | 15.88 | 33 | 38.1 | 0.7-1.2 | 2.5~5 |
Fin Type:
| Flat fin | Sine wave with blade fin | Smooth sine wave fin |
 |
 |
 |
| Window fin | Sesamoid fin | |
 |
 |

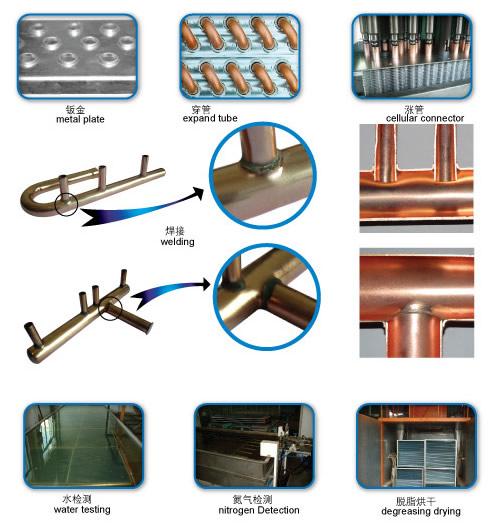

Production Process:
Application:
1.Used for combined air handling unit, fan coil etc air conditioning devices.
2.Used for heat transfer in cold storage and all kinds of low temperature systems.
3.Used of energy recovery and low temperature system devices.
4.Used for dry operation condition, fresh air dehumidification etc systems.
5.Used for industry and commerce air conditioning system.
6.Used for vehicle and vessel etc transportation devices.
7. Used for cold dryer as condenser or evaporator.
