6.0g/Cm3 Yttria Zirconia Ceramic Rods Machinable 2000mm
6.0g/cm3 density yttria zirconia machinable ceramic rods
Description:
Zirconia Ceramic offers high strength, wear resistance, and flexibility far beyond those of most other technical ceramics. Zirconia is a very strong technical ceramic with excellent properties in hardness, fracture toughness, and corrosion resistance; all without the most common property of ceramics – high brittleness. Its unique resistance to crack propagation and high thermal expansion make it an excellent material for joining ceramics with metals like steel.
Technical Parameters:
| Test item/Unit | Numerical Value | Test item/Unit | Numerical | ||||
| Product Material | Alumina | Zirconia | Product Material | Alumina | Zirconia | ||
| Component Content % | ≥99% | ≥95% | ≥90% | Volume Resistance MM | >1012 | >1012 | >1012 |
| Sintering Temp ℃ | 1780-1800 | 1650-1680 | 1550-2600 | Bending Strength Mpa | 400 | 320 | 1100 |
| Specific Gravity g/cm3 | ≥3.8 | ≥3.6 | >6 | Thermal Expansion Coefficient'10' | 6.8-8.0 | 6.2-8.5 | 6.9-10 |
| Breakdown Voltage Strength kv/mm |
15 | 15 | 15 | Roughness um | ≤0.8 | ≤0.8 | ≤0.8 |
| Bibulous Rate% | <0.01 | <0.01 | <0.01 | Mirror Polished Ra | ≤0.05 | ≤0.1 | ≤0.05 |
| Anti Pressure Mpa | 3700Mpa | 2400Mpa | 5000Mpa | Thermal Conductivity W/m.k | 25 | 20 | 25 |
| Hardness Hra | ≥88 | ≥82 | ≥88 | Temperature Resistance ℃ | 1700 | 1600 | 1800 |
Advantages:
Zirconia ceramic has a series of good properties,such as high strength,good fracture toughness,high density,good abrasion resistance,high hardness and so on.Zirconia ceramics can be used as good abrasive and efficient grinding media.
Application:
1. Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
2. As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment.
3. halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.
4. high-power electrical applicance and all kinds of insulation device.

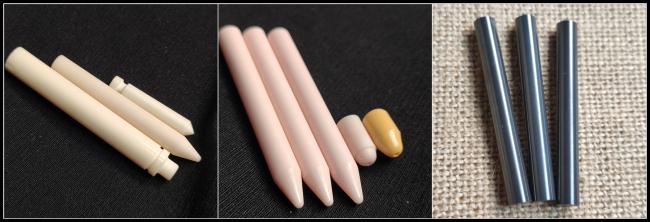

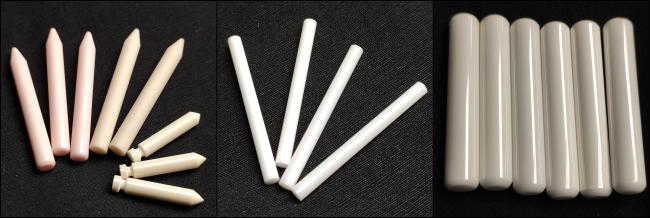

More picture:

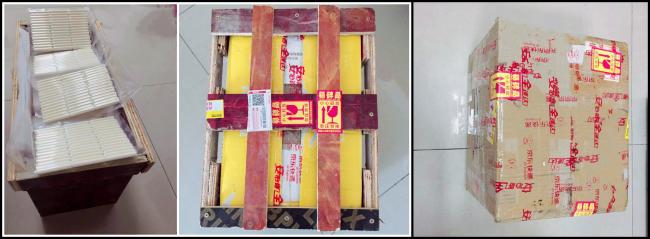

Packaging:
