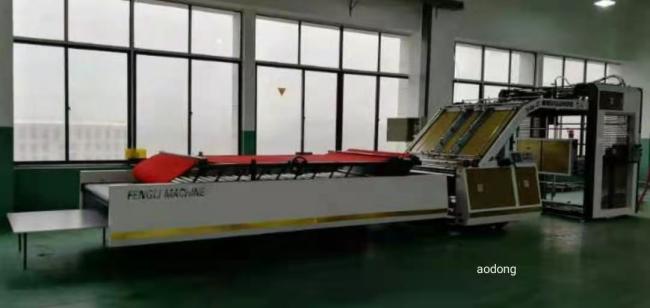

380V 220V High Speed Flute Laminator For Corrugated Cardboard Sheet
Semi / Full Automatic Flute Laminator For Corrugated Cardboard Sheet
1) BZJ-B Semi-auto Flute Laminator adopts bottom paper vacuum adsorption feeding, surface paper manual feeding. Easy operation, accurate transmission, bottom & surface paper adopt photoelectric control, special front gauge fix position, bottom paper never go ahead.
2) This machine pressing part adopt suspension roller pressing, to keep the board uniform stress, steady conveying, making the board beautiful and smooth, pressing belt could move front & behind, suitable for many kinds of paperboard sizes.
3) All the machine main components adopt the famous company original products, to guarantee long use life and nice stability.
| Model | BZJ-A | BZJ-B | BZJ-Q |
Max Sheet Size |
1300*1100mm~1600*1200mm |
1300*1100mm~1600*1200mm
|
1300*1100mm~1600*1200mm |
Min Sheet Size |
350*350m |
350*350m
|
350*350m |
Surface Paper |
≥150gsm |
≥150gsm
|
≥150gsm |
Bottom Sheet |
≥350gsm or corrugated sheets |
≥350gsm or corrugated sheets
|
≥350gsm or corrugated sheets |
Laminating Precision |
±1.0mm |
±1.0mm
|
±1.0mm |
Design Speed |
45pcs/min |
80pcs/min
|
120~200pcs/min |
