2200mm E Flute Paper Corrugation Machine 440v
Price:
650000 USD
MOQ:
1 set
Delivery Time:
three months
Brand:
LUM
Product Description
Bottom Price 2200mm E Flute Paper Corrugation Machine Used Corrugated Cardboard Production Line
Bottom Price 2200mm E Flute Paper Corrugation Machine Used Corrugated Cardboard Production Line

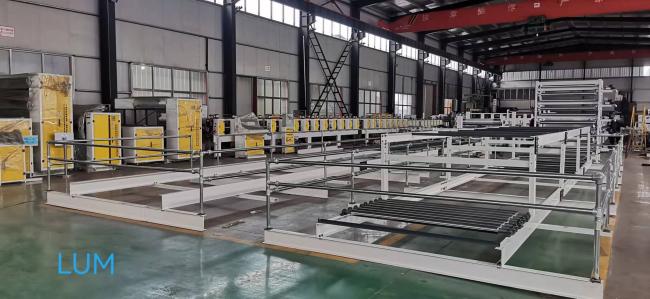

• Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on. We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Please contact us for the full version of video.
Main units:
| No. | Name | Sets | Comment |
| 1 | Mill roll stand | 5 | Electric mill roll stand , expansion dop top, pneumatioc brake |

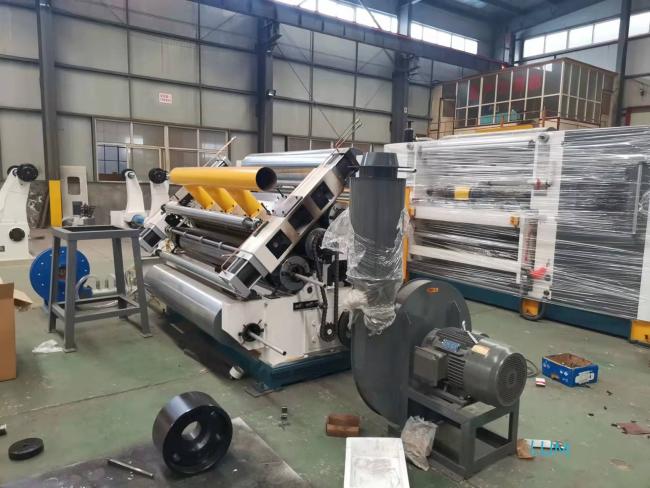

| 2 | Single facer | 2 | vac-sorb,φ320 alloy roller ,cardan drive |
| 3 | Feeding paper bridge | 1 | Electric adjust deviation,adsorb tension |

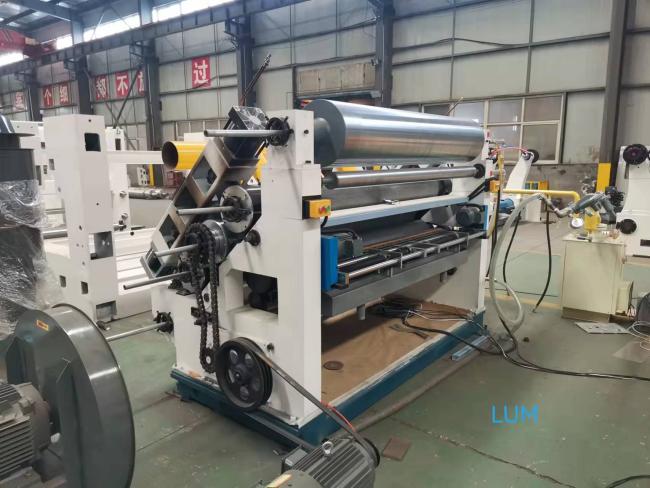

| 4 | Second gluing machine | 1 | Conversion synchronous control |
| 5 | Triply pre-heater | 1 |
φ 800,electric wrap angle (including qualification certificate ) |
| 6 | pre-heater | 4 |
φ 800,land type electric wrap angle (including qualification certificate ) |
| 7 |
Dry formed part |
1 | 520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate ) |
| 8 |
Heat formed part |
1 | Adopt up and down intensive roller ,length 8m |
| 9 | Feeding paper belt | 1 | High quality carton belt , electric promote |
| 10 | Thin blade slitter scorer machine | 1 | 5 blade 8 line , electric Correct error , alloy blade |
| 11 | Corss cutter | 1 |
Computer control cutting cardboard length 500-9999mm; cutting cardboard precision ±1mm |
| 12 | Main drive | 1 | Main power 25KW |
| 13 | Make paste system | 1 | Barrel type ,electric stir circulate glue design |
| 14 | Stand feeding paper car | 1 | Include slipping way |
| 15 | Pump | 1 | Electric aeration |
| 16 | Electric system | 1 | One Operate cabinet ,one sinlge facer 1 main drive |
| 17 | Steam system | 1 | Not including heat source and pipe |
| 18 | Gantry stacker | 1 |
Belt drive type |
