0.1mm CNC Machining Hot Platen For Plywood Press
Price:
1 USD
MOQ:
1 pc
Delivery Time:
30 DAYS EX-MILL
Brand:
Blutech
Product Description
Production name: Custom Made Hot Platen for Plywood
This type of hot platens have the fast heating and cooling circle,so normally it will need many deep holes and cross holes and customers sometimes prefer thread plug system,with 3/4" thread plugs with copper Washer,with inside stainless steel rods inserted and form inside flow circulation,precise deep hole drilling work shall be needed.
Specification:
|
Material
|
ST52/S355JR/S275JR/S235JR |
|
Product Size
|
1300*2520*50mm |
|
Inlets and outlets
|
2 inlets and 2 outlets |
|
Thickness Tolerance
|
+/-0.5mm
|
|
Deep hole diameter
|
24mm
|
|
Heating by
|
steam;thermal oil
|
|
Deep hole drilling from both ends
|
tolerance in the middle +/-1mm
|
|
Heating temperature
|
180 c-degrees
|
|
Temperature uniformity
|
+/-2 c-grees |
|
Working pressure
|
100 kg/cm2
|
Main Features:
We can design hot platen according to your size, including the holes(2-in and 2-out, 4-in and 4-out,6-in and 6-out...etc)
1. Heat carrier: Thermal oil;Steam;
2. Steel material: S355JR;ST52
3. Parallelism of surface tolerance: 0.01mm whole surface

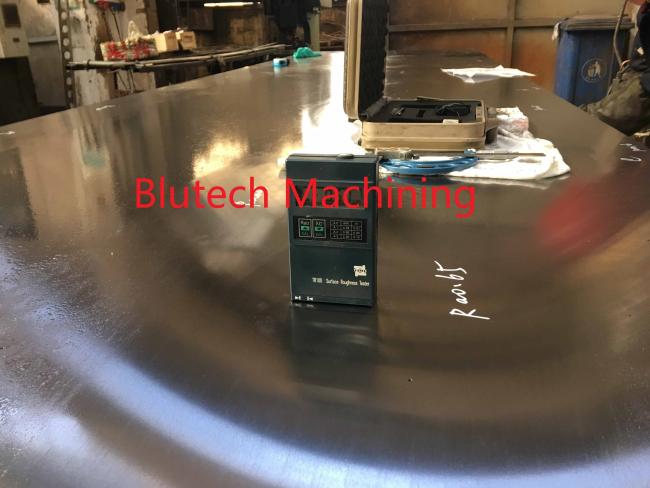

4. Smoothness accuracy less than RA 1.6
5. Thickness tolerance: + 0.2mm

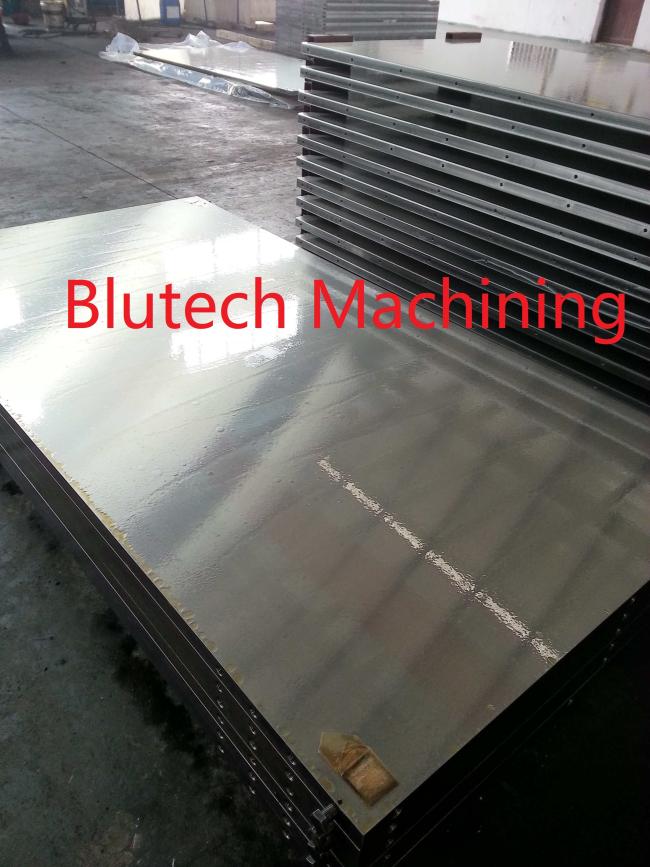

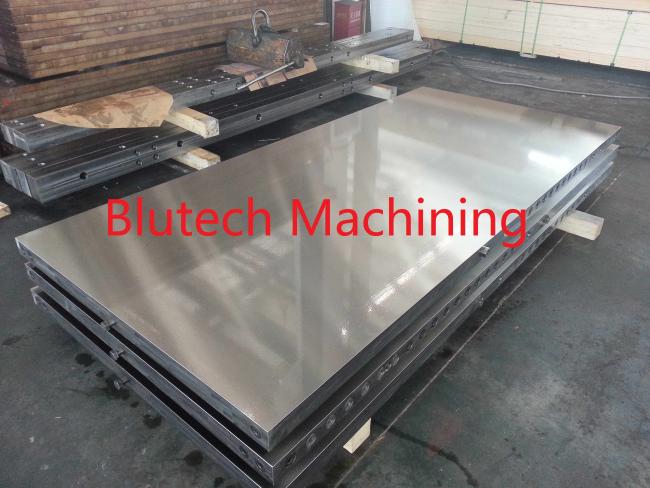

More pictures:
