Automotive Industry Bolster Plate , Steel T Slot Plate For Hydraulic Hot Press
Production name: Custom Made T-slot heating platens/bolsters for Automotive Industry hydraulic hot press
We are making the T-tables,Solid T-bolsters,T-slot heating platens for hydraulic press for the automotive industry, our customers are leading hydraulic press makers in North Amercia on this field.Especially we are in the production of press components of hydraulic presses for the production of internal and external components and thermal and acoustic insulationin strument panels, steering wheels, central tunnels, internal door panels, carpeting, wheel housing, luggage compartments, side boot covers, headliners and pillars, seat backs, thermal and acoustic insulating panels and composite exterior body panels for cars and industrial vehicles
Specification:
|
Material
|
ST52/S355JR/S275JR/S235JR |
|
Product Size
|
2000*4000*100mm |
|
Inlets and outlets
|
2 inlets and 2 outlets |
|
Thickness Tolerance
|
+/-0.5mm
|
|
Deep hole diameter
|
32mm
|
|
Heating by
|
thermal oil;Steam;Electricity
|
|
Deep hole drilling from both ends
|
tolerance in the middle +/-1mm
|
|
Heating temperature
|
160 c-degrees
|
|
Temperature uniformity
|
+/-2 c-grees |
|
Working pressure
|
30 kg/cm2
|

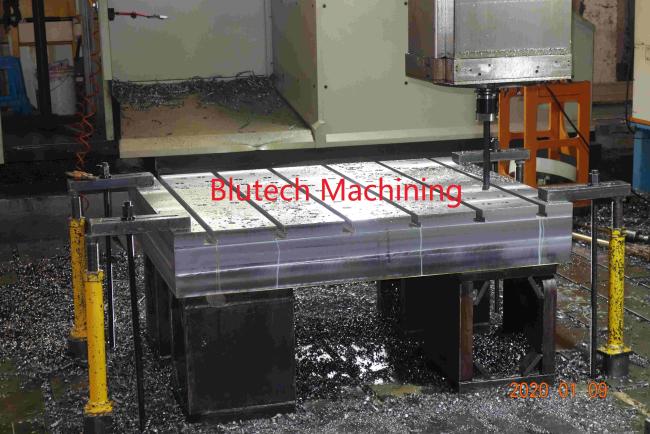

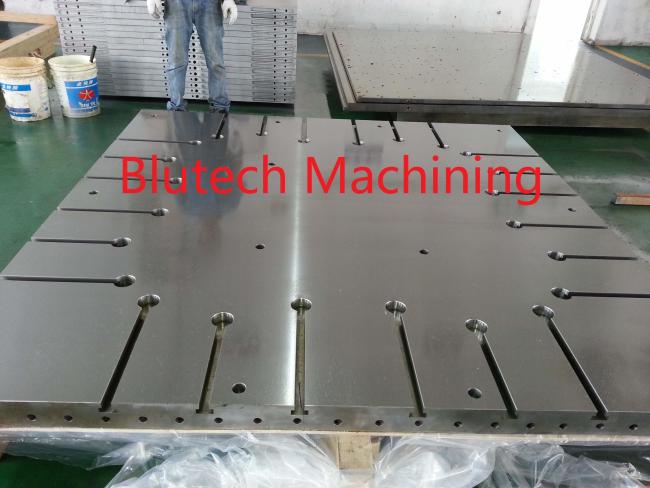

More pictures:

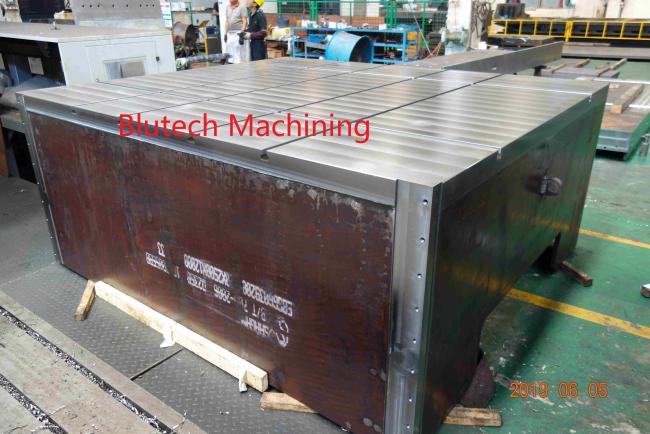

Electricity heating type:

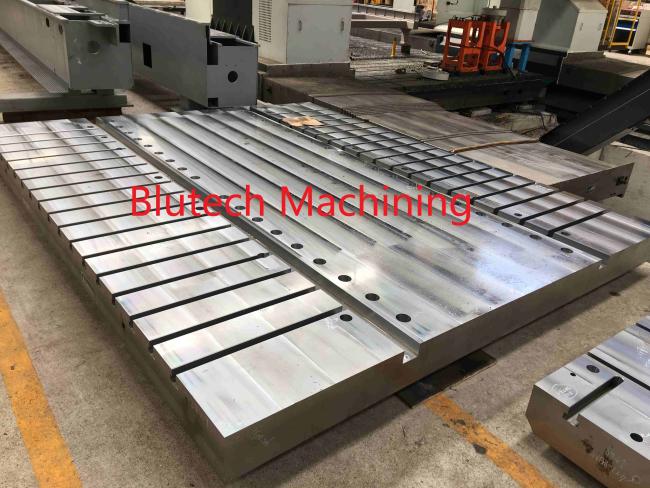

Thread plug system type:

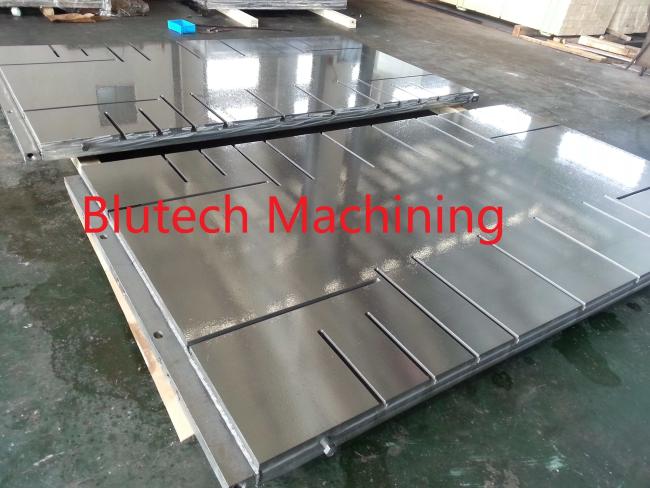

Slotted&Welded type:

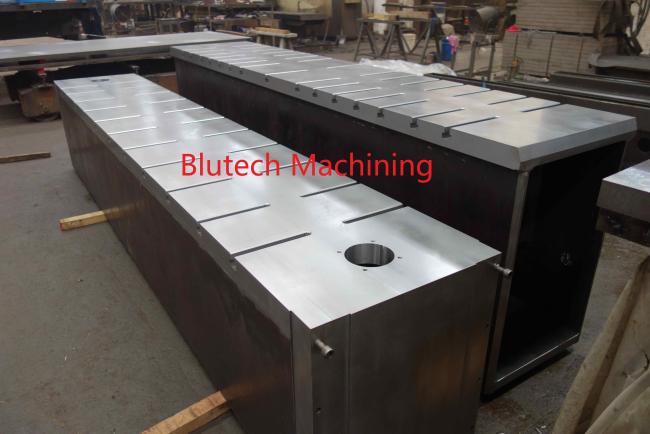

Thread Plug System Type:
