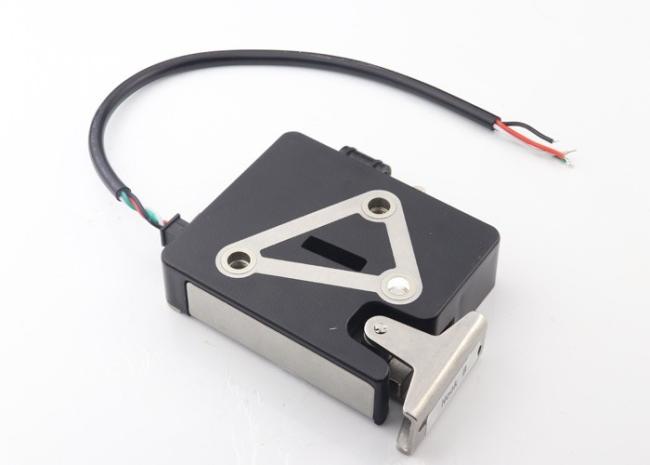

304 Stainless Steel ABS PC Metal Magnetic Cabinet Lock DC24V 0.72W
DC24V Metal Cabinet Door Locks , 0.72W Magnetic Cabinet Lock
Description
1. Product material: shell adopts steel sheet forming internal parts of carbon steel precision casting.
2. Size : 73*58*13mm;
3. Working mode: independent (i.e. the door is locked when the power is turned off, and the lock is triggered when the power is turned on);
4. Electrical parameters: DC12V 2A, suction time cannot exceed 200ms;
5. Mechanical life: more than 500,000 times under design load;
Product parameters
| Model | KR-S78 |
| Size | 78*78.3*20.3 mm |
| Product name | Sharing Cabinets Smart Locks |
| Weight with lock hook | 258g |
| Material | 304 Stainless steel+ABS+PC |
| Working voltage | 8~24V |
| Working current | 60mA@12V |
| Power consumption | 0.72W |
| Response time | Less than 600ms |
| Revolution speed | 4.5 Rev/s |
| Working humidity | 5% ~ 85%RH |
| Unlocking times | 500,000 times |
| Door weight | 4KG~50KG |
| Test | Salt spray testing 72 hours |
| Applications | Intelligent self-collection cabinet, smart bag cabinet |
| Static current (signal unlock) | <20uA |
| OEM | take up |
Product Main Features
- Motor/servo-driven, wide working voltage range: 8~24V. Low power consumption.
- It is recommended that the user's power supply unlocking time is greater than 500ms (uninterrupted).
- Omron micro detective switch from Japan, high quality, and durability.
- Outlet port description:
2) Terminal (input pin) White wire: negative power GND;
3) Terminal (input pin) blue wire: lock hook detection signal A terminal, the switch signal can be set by the customer;
4) Terminal (input pin) white wire: the lock hook detection signal B terminal, this switch signal can also be set by the customer;
- Mechanical emergency lever can be unlocked manually in case of power failure.
- AWG24 wires with PVC protecting tube.
- Support customizing wires and connectors.

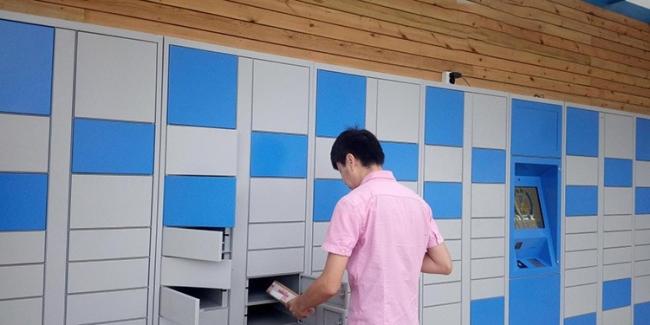

Application :
Storage cabinet, telegraph box, locker, logistics cabinet, file cabinet, electricity meter box, locker, vending machine, mobile phone cabinet, shoe cabinet and other centralized control cabinet.Widely used in schools, community logistics, hotels, factories, bath centers, military, Banks, supermarkets, prisons and other places.
