China Kerong 12v 24v Electromagnetic Lock With Pusher for smart locker for sale

Kerong 12v 24v Electromagnetic Lock With Pusher for smart locker

Price Negotiable

Price: Negotiable

MOQ: 1 piece

Delivery Time: 5-15 days working time

Brand: KERONG

Product Description

DC 24v Solenoid Locker Lock for Parcel Delivery Locker with RS485

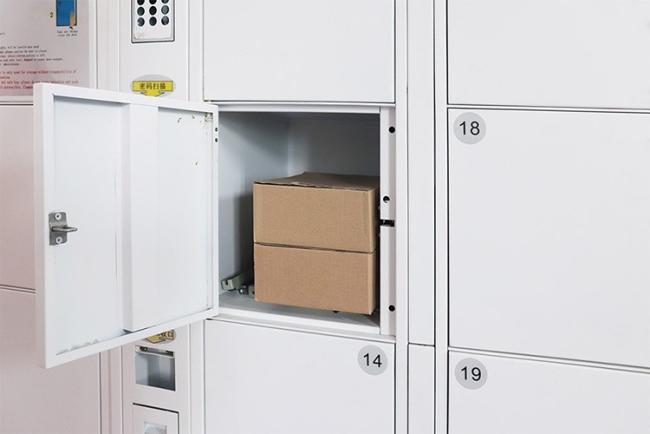

Our products KR-S99N electronic solenoid locker lock DC 24v are used in vending kiosk locker, centralized control ark express cabinets, gym cabinets, storage cabinets, etc.

Product parameters:

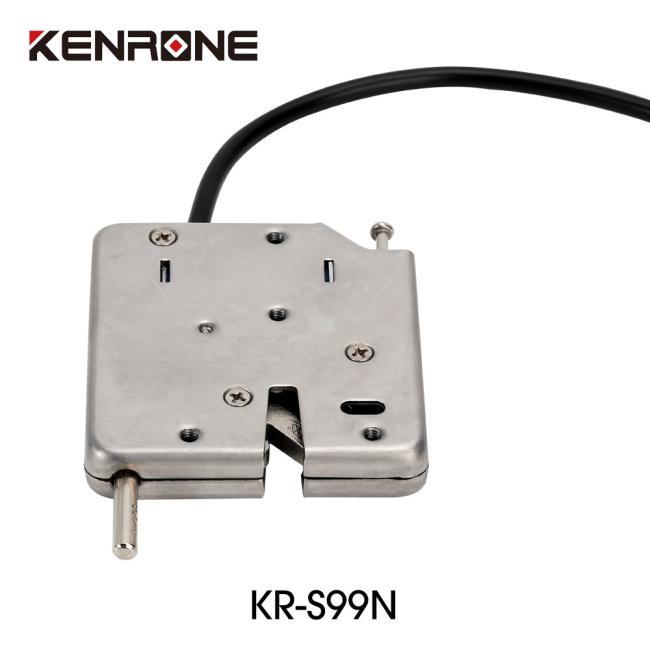

Model	KR-S99N
Size	6972.513.5 mm
Name	24V solenoid lock for cabinet
Weight with lock hook	201g
The material of lock body	430 Stainless Steel
The material of lock bolt	Zinc alloy nickel plating
Working voltage	DC12V/DC24V
Working current	2.4A/1.2A
Maximum power	28W
Response time	Less than 20ms
Working temperature	-20℃ ~ +60℃
Working humidity	5% ~ 85%RH
Working life	500,000 times
Door weight	0.5KG~10KG
Test	Salt spray testing 48 hours
Usage	parcel storage locker; gym cabinet; logistic locker; vending machine
Certification	CE; FCC; RoHS
OEM	Accepted

Product Main Features:

1. Lock hook detection function, With push lever to help push the door open

2. Solenoid drove, can work in 12V & 24V

3. The lock housing is made of 430 stainless steel, anti-force performance: 240kgs

4. Omron switch from Japan, with 500,000 times operating life

5. Mechanical emergency lever, can be manually unlocked in case of power failure

6. Imported piano wire torsion spring, AWG24 wires with PVC tube protects the wirings

7. Connector and wires can be customized according to actual conditions

Product Details:

Hook Model

Model	Base	Thickness	Height	Weight
Hook A	Flat base	3.0mm	30mm	11.0g
Hook B	Flat base	3.0mm	25mm	10.5g
Hook C	Arch base	3.0mm	26.5mm	10.8g
Hook D	Arch base	3.5mm	26.5mm	11.8g
Hook E	Arch base	3.0mm	31.5mm	11.4g
Hook F	Arch base	3.0mm	26.5mm	10.5g
Hook G	Arch base	3.5mm	30mm	11.0g
