China 1.2A Waterproof Magnetic Lock , DC24V Electrical Cabinet Locks for sale

1.2A Waterproof Magnetic Lock , DC24V Electrical Cabinet Locks

Price Negotiable

Price: Negotiable

MOQ: 1 piece

Delivery Time: 5-15 days working time

Brand: KERONG

Product Description

1.2A Waterproof Magnetic Lock , DC24V Electrical Cabinet Locks

Product parameters:

Model	KR-S97

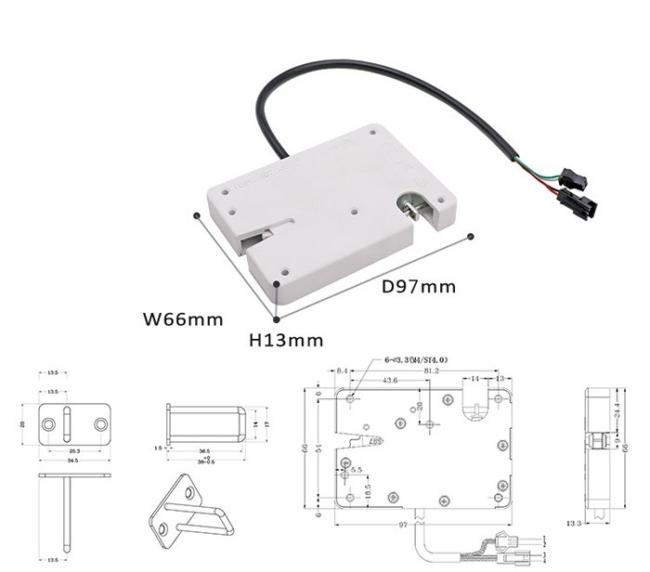

Size	976613.3 mm
Name	ABS Magnetic Water-Proof Cabinet Lock
Weight with lock hook	127g
The material of lock body	ABS+PC
The material of lock bolt	Zinc alloy nickel plating
Working voltage	12V/24V
Working current	2.4A/1.2A
Maximum power	28W
Response time	Less than 20ms
Working temperature	-20℃ ~ +60℃
Working humidity	5% ~ 85%RH
Working life	500,000 times
Usage	Lockers, vending machines, logistics cabinets, parcel lockers, etc.
Certification	CE; FCC; RoHS
OEM	Accepted

Product Main Features:

Solenoid drove, can support 12V & 24V.
The material of Lock shells is deactivated 304 stainless steel, anti-force performance: 80kgs.
Can be waterproof. All electronic parts are protected in the sealed ABS box.IR rating as IP66.
Omron micro detective switch from Japan, 500,000-time working life.
Mechanical emergency lever, can be unlocked manually in the condition of power failure.
AWG24 wires with PVC protecting tube.
Support customizing wires and connectors.

Product Details

Product Applications

Our products KR-S97 electronic locker locks are widely used in courier lockers, vending machines, parcel delivery cabinets, centralized control ark express cabinets, storage cabinets, etc.

Other Different Lock Options

Model	+, -Power	Material of lock hook	Tensile strength	Working current	Recommended power-on time
KR-S66	yes	430 stainless steel	270kgf	2.4A/1.2A	<800ms
KR-S66N	yes	430 stainless steel	270kgf	2.4A/1.2A	<800ms
KR-S99	yes	430 stainless steel	240kgf	2.4A/1.2A	<800ms
KR-S99N	yes	430 stainless steel	240kgf	2.4A/1.2A	<800ms
KR-S1408	yes	430 stainless steel	240kgf	2.4A/1.2A	<800ms
