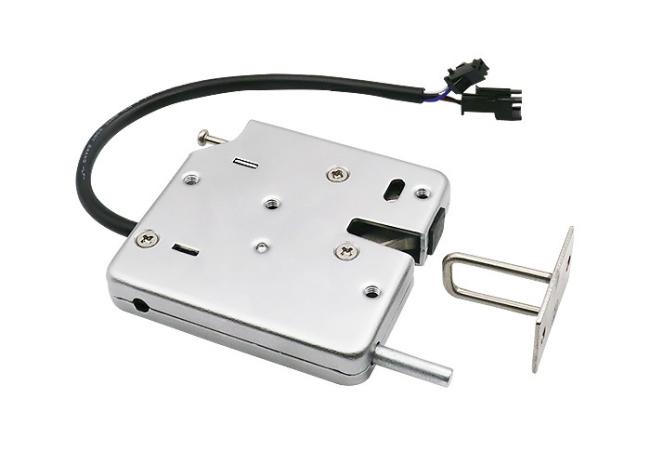

Kerong 1.2A Electromagnetic Cabinet Lock With Remote Control
Kerong 1.2A Electromagnetic Cabinet Lock With Remote Control

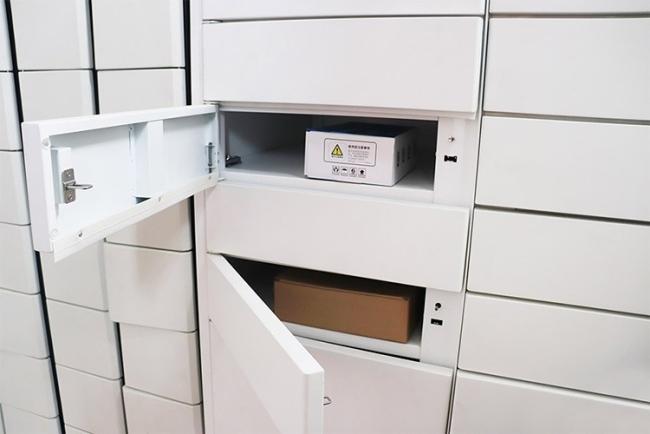

Our products KR-S99 electronic locker lock are applied in courier cabinets, vending kiosk locker, gym cabinets, parcel storage cabinets, etc.
Product parameters
| Model | KR-S99 |
| Size | 67*72.5*13.5 mm |
| Name | Magnetic Remote Control Lock |
| Weight with lock hook | 196 g |
| The material of lock body | SUS430 |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V/DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Usage | storage locker; cabinet; logistic locker; vending machine; deposit locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features:
1. Solenoid drove, support 12V & 24V.
2. Lock hook detection function, with push lever to help push the door open.
3. The lock housing is made of low carbon stainless steel, anti-force performance: 240kgs.
4. Switch: Omron from Japan with 500,000 times working life.
5. Mechanical emergency lever, can be unlocked manually in case of power failure.
6. Imported piano wire torsion spring, AWG24 wires with PVC tube protects the wirings.
7. Terminals and wires can be customized according to actual conditions.
Product Details
Different Lock Hook Options
| Model | Base | Thickness | Height | Weight |
| A | Flat base | 3.0mm | 30mm | 11.0g |
| B | Flat base | 3.0mm | 25mm | 10.5g |
| C | Arch base | 3.0mm | 26.5mm | 10.8g |
| D | Arch base | 3.5mm | 26.5mm | 11.8g |
| E | Arch base | 3.0mm | 31.5mm | 11.4g |
| F | Arch base | 3.0mm | 26.5mm | 10.5g |
| G | Arch base | 3.5mm | 30mm | 11.0g |
Hot Tag: smart lock for locker; hidden lock for cabinet; keyless cabinet lock
