1.2A Electric Cabinet Lock For Mall Smart Locker
1.2A Electric Cabinet Lock For Mall Smart Locker

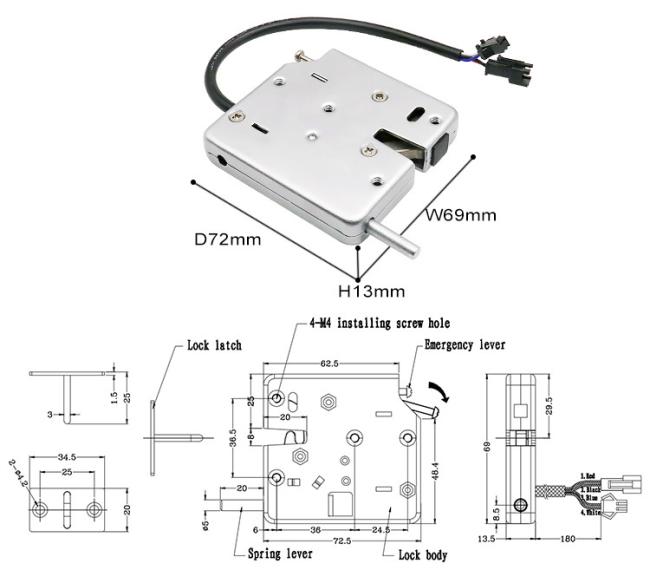

Product parameters
| Model | KR-S99N |
| Size | 69*72.5*13.5 mm |
| Name | Mall Locker Lock |
| Weight with lock hook | 201 g |
| The material of lock body | SUS430 |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V or DC24V |
| Working current | 2.4A or 1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Application | storage locker; cabinet; logistic locker; vending machine; deposit locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features
1. Electromagnetic drove, support 12V & 24V.
2. Lock hook detection function, With push lever to help push the door open.
3. Switch: Omron from Japan with 500,000 cycles working life.
4. Low carbon stainless steel lock housing, anti-force performance as 240kgs.
5. Mechanical emergency lever, can be unlocked manually in the event of power failure.
6. Customers can customize terminals and wires according to actual conditions.
7. Imported piano wire torsion spring, AWG24 wires with PVC tube protects the wirings .
Product Details
Product Applications

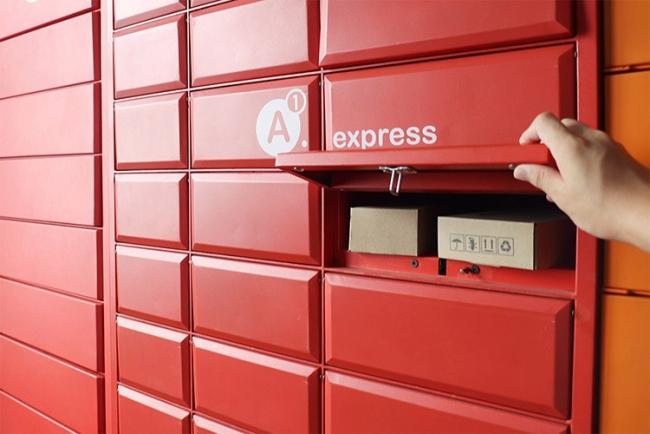

Our products KR-S99N electric cabinet lock are used in parcel cabinets, mall locker, centralized control ark express cabinets, parcel cabinets, storage cabinets, etc.
