OEM Keyless Cabinet Door Locks , 240kgf 24v Locker Door Lock Solenoid
OEM Keyless Cabinet Door Locks , 240kgf 24v Locker Door Lock Solenoid
Product parameters
| Model | KR-S1408 |
| Size | 72.5*59*13 mm |
| Name | Keyless Solenoid Lock |
| Weight with lock hook | 176g |
| The material of lock body | 430 Stainless Steel |
| The material of lock bolt | Zinc alloy nickel plating |
| Working voltage | DC12V/DC24V |
| Working current | 2.4A/1.2A |
| Maximum power | 28W |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 85%RH |
| Working life | 500,000 times |
| Door weight | 0.5KG~10KG |
| Test | Salt spray testing 48 hours |
| Application | cabinet; parcel locker; apartment delivery locker |
| Certification | CE; FCC; RoHS |
| OEM | Accepted |
Product Main Features
1. Resistance performance: 240kgs, the lock housing is made of low carbon stainless steel.
2. Lock hook detection function, With push lever to help push the door open.
3. 500,000-time working life, Omron micro detective switch from Japan.
4. Electromagnetic drove, support 12V & 24V.
5. Mechanical emergency lever, can be unlocked manually in the situation of power outage.
6. AWG24 wires with PVC tube protects the wirings.
7. Terminals and wires can be customized according to actual conditions.
Product Details
Product Applications

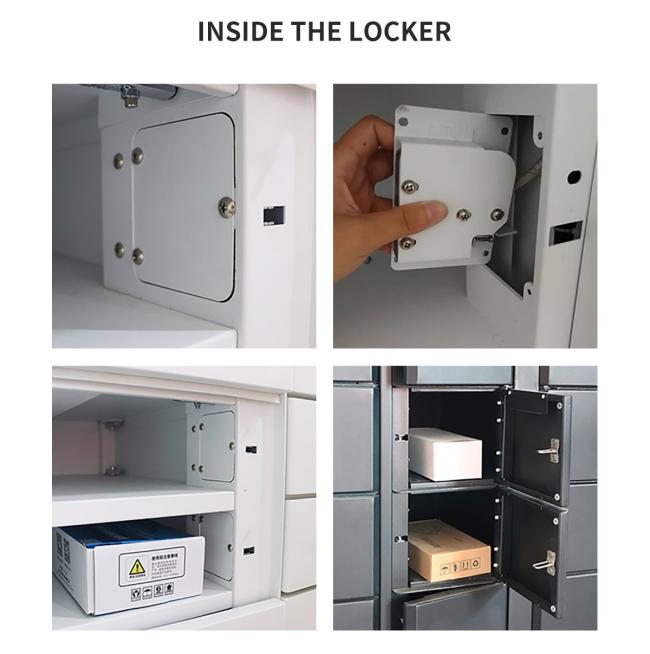

Our products KR-S1408 electronic solenoid cabinet lock is used in parcel delivery locker, vending machine, centralized control ark express cabinets, apartment locker, etc.
Ohter Differen Lock Options
|
Model
|
Driven method | Material | Whether with push lever | Working current | Tensile strength |
|
KR-S66N
|
Solenoid | 430 stainless steel | With | 2.4A/1.2A | 270kgf |
|
KR-S97
|
Solenoid | ABS+PC | With(built-in) | 2.4A/1.2A | 80kgf |
|
KR-S98C
|
Solenoid | 430 stainless steel+PA+GF | With(built-in) | 2.4A/1.2A | 300kgf |
|
KR-S78
|
Motor/servo | 304 stainless steel+ABS+PC | With(built-in) | 60mA@12V | 370kgf |
|
KR-S79S
|
Motor/servo | 304 stainless steel+ABS+PC | With(built-in) | 80mA@12V | 500kgf |
